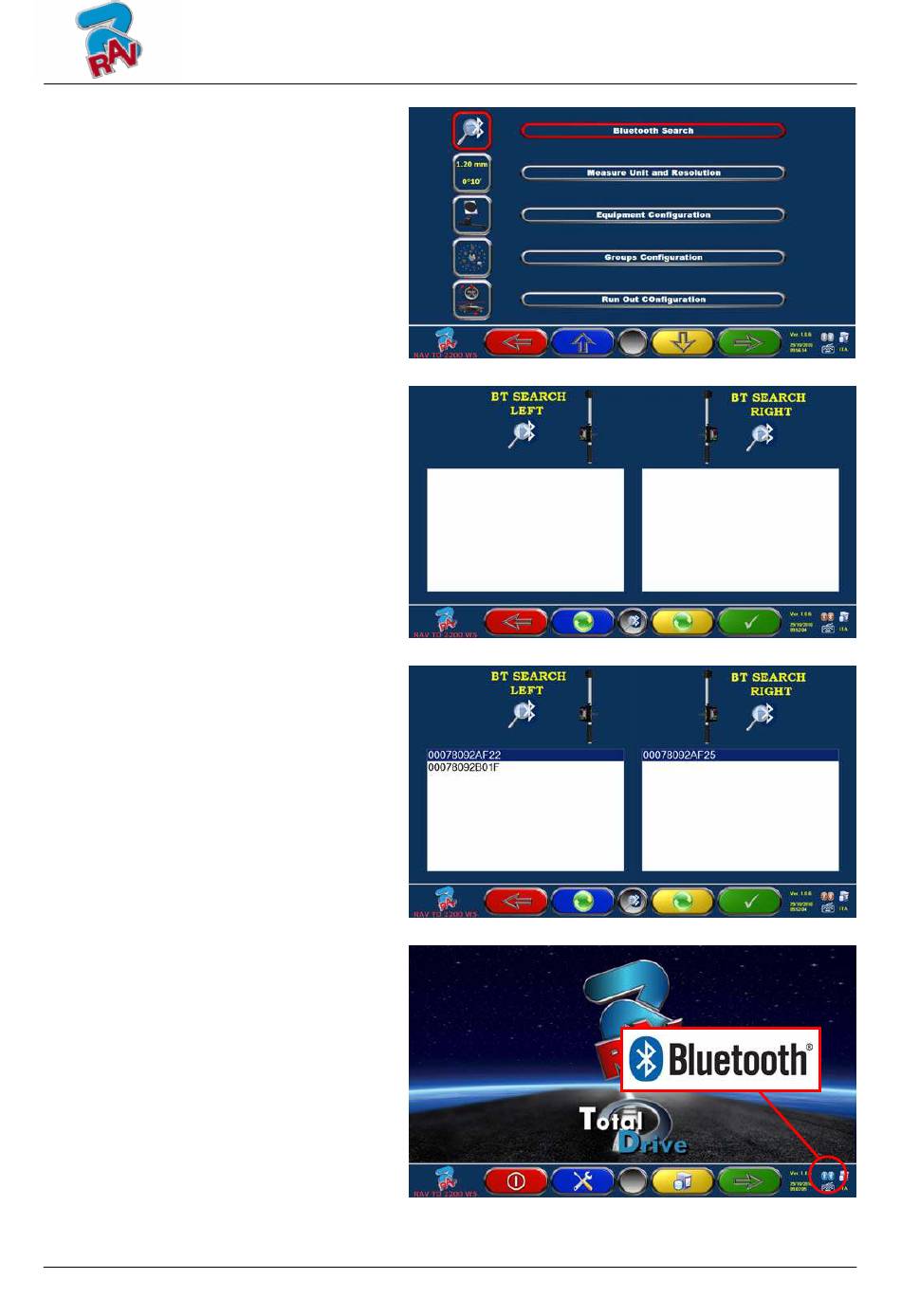

Using the keys
"Bluetooth Search" option and confirm
by key F4.
Turn on the front heads, then press the
key F5, the Bluetooth searching will
start.
On the two windows appears the MAC
address of all heads provided with
Bluetooth devices founded.
The heads set as LEFT are indicated in
the left window, the heads set as RIGHT
in the right window.
If more than 2 heads where founded,
select the correct by the F2/F3 keys
than press F4 to confirm.
Once the Bluetooth
completed, the two Bluetooth icons
located in down at right, becomes
BLUE.
Instead, if the combining isn't made, (or
the front heads are turned off) those
icons are GREY.
Important: To check the true connections with
the measuring heads use the communication
test (release FW) described in par. 4.1
RAVTD5040WD / 5060WD / 5080WD
RAVTD5080WS - RAVTD1760WS/1780WS
RAVTD1850WS - RAVTD2200WS
F2/F3 select the
combining is
Ravaglioli S.p.A. - Via I° Maggio, n° 3 (Frazione di Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 e-mail: rav@ravaglioli.com
SERVICE MANUAL
Code R0184 - rev.1.2
Figure 14
Figure 15
Figure 16
Figure 17
(01/2011)
Page 11/22
