Attaching the Cisco PRE5 Module Cable Holder

Before you begin
Have the slotted head screwdriver handy.
Procedure

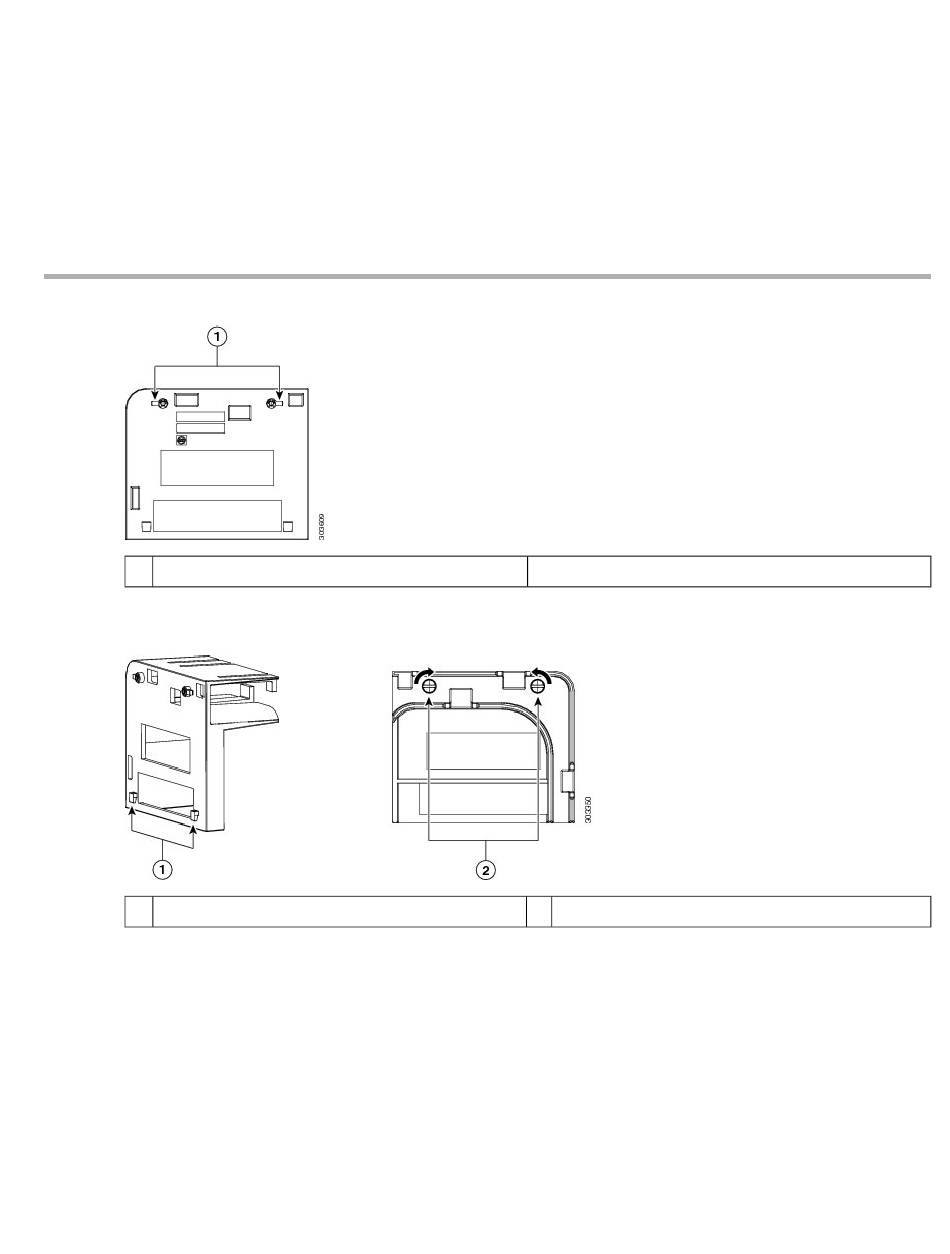

Step 1 Ensure that the twist slugs of the cable holder are at the positions as shown in the figure below.
1 Twist slugs
Step 2
Tilt the cable holder a little to insert the clips into the edge of the button slot on the sheet-metal part of the LCD display
panel. See Cabling the Cisco PRE5 Module, on page
1 Cable holder clips
Step 3
Use the slotted head screwdriver to press the captive screw. Then rotate the captive screw by 90 degrees in the direction
shown in the above figure.
The figure below shows how the wires from the PRE5 module in the right hand slot are routed.
—
5.
2 Captive screws
