Cisco Performance Routing Engine 5 Hardware Installation Manual page 4

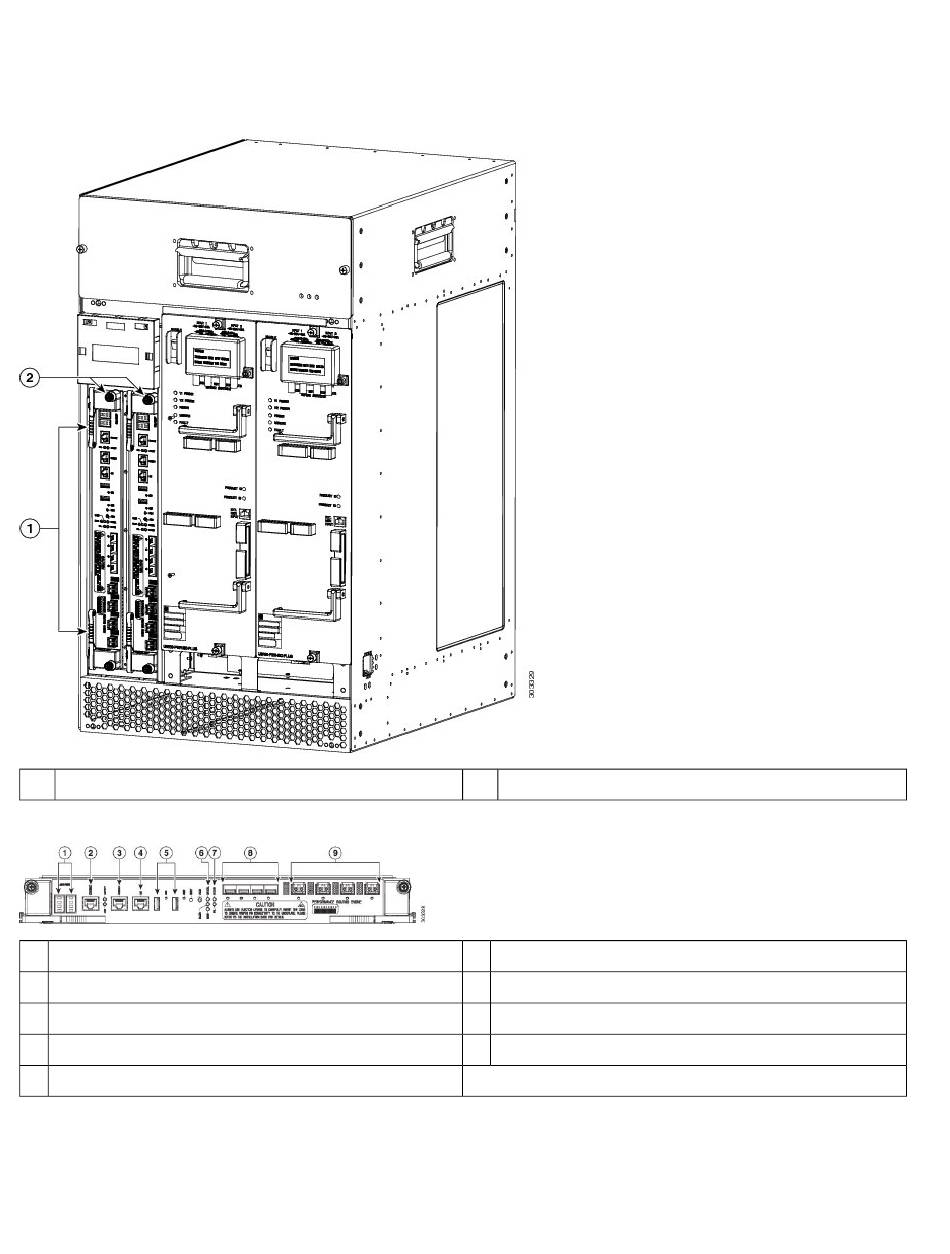

Figure 1: PRE5 in the Cisco uBR10012 Chassis
1 Ejector levers
Figure 2: PRE5 Faceplate
1 Alphanumeric display
2 Ethernet port
3 Console port
4 Auxiliary port
5 USB ports
Connector Ports
4
2 Captive screws
6 Alarm LEDs
7 Status LEDs
8 4 SFP+ for board-to-board wiring
9 4 SFP+ for backhaul wiring
—
