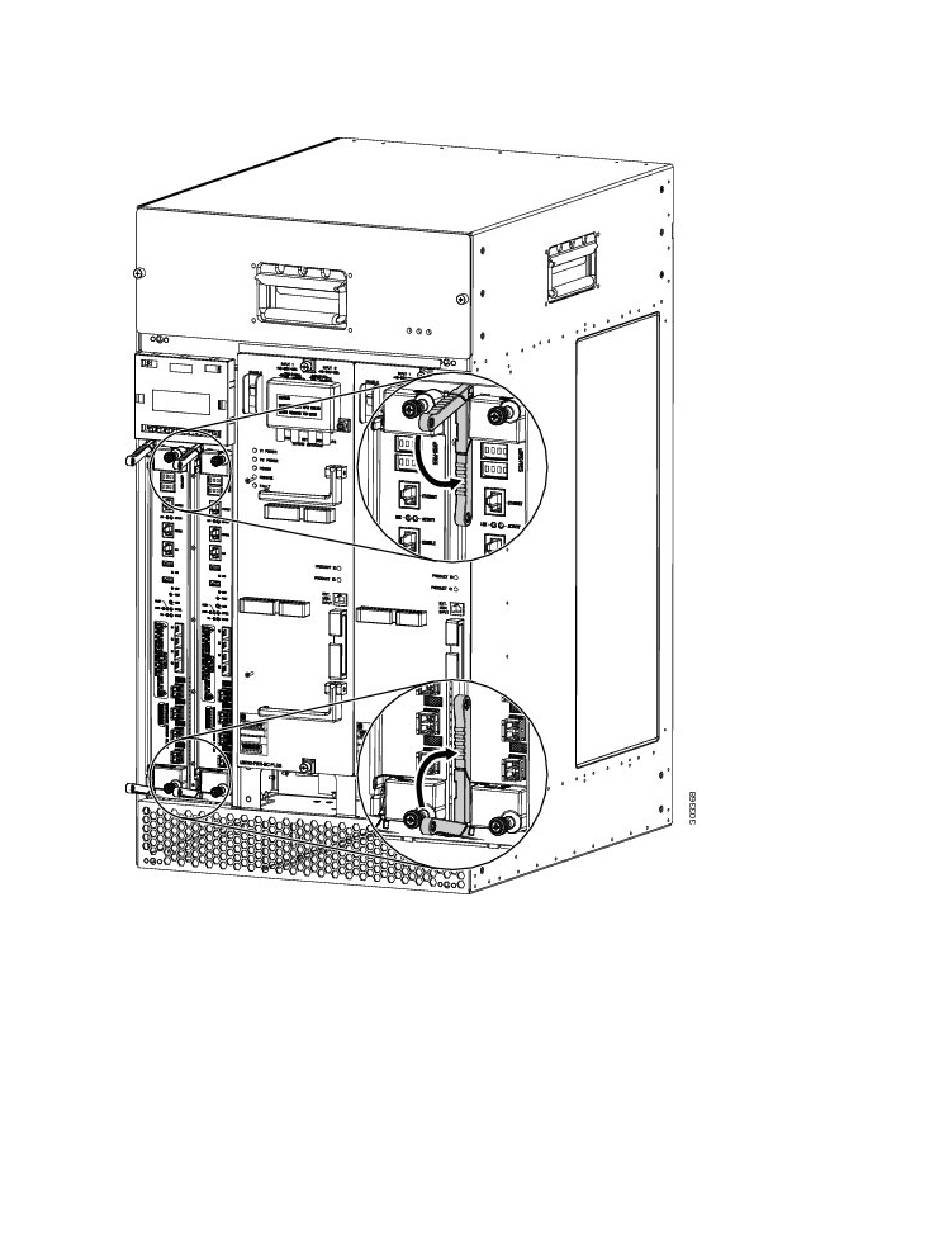

Figure 11: Closing the Ejector Levers

Step 6

Using a Number 2 Phillips screwdriver, secure the PRE in the chassis by tightening the top and bottom captive screws.

Always tighten the captive screws on each newly-installed PRE to prevent accidental removal and provide

Caution

proper grounding for electromagnetic interference (EMI) shielding.

Step 7

When fully inserted, the PRE cycles through its power-on self-test. The FAIL LED comes on briefly (about 5 to 6 seconds)

and then goes off. If the FAIL LED remains on or is flashing, go to the

on page 26

section.

Step 8

Reconnect the cables.

For information about configuring the PRE, see the

Guide.

Troubleshooting the Cisco PRE5 Module Installation,

Cisco uBR10012 Universal Broadband Router Software Configuration
