10.2 – Development Board Connections

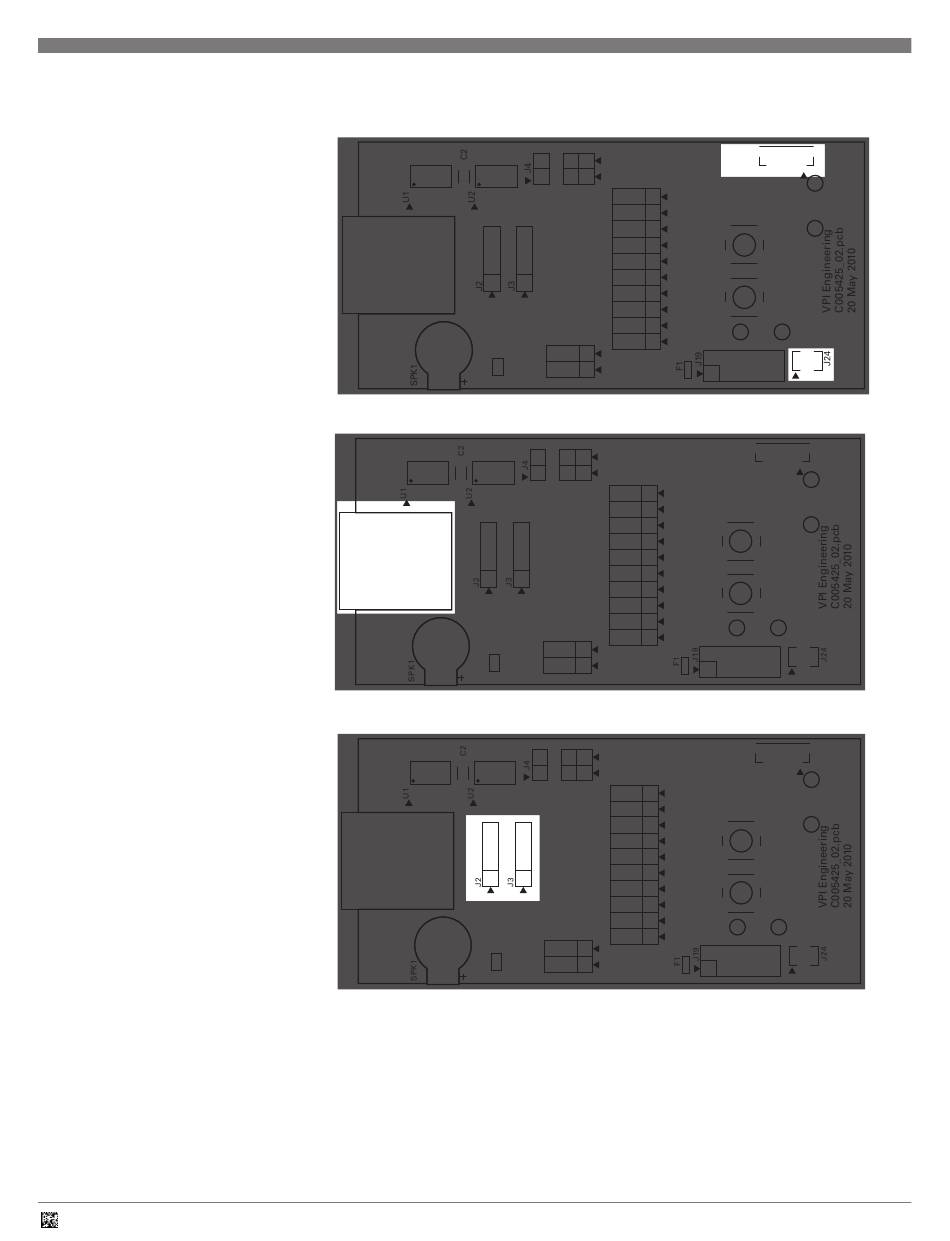

CR8000 Connections
The CR8000 connects to the development board
via J23 and J24.
RJ50 System Header
The majority of system communication goes
through the RJ50 System Header. The RJ-50
cable provides power to the development kit and
is available in RS232 or USB version. There is
also the ability to trigger through
this connection.
Auxiliary and Debug Serial Headers
J2 and J3 provide auxiliary communications to
the CR8000 for development and test purposes.
J2 is a serial console interface
to the Linux kernel operating on the
CR8000 engine, and J3 is attached
to RS232 Port 4.
