3.2 – Imager Field of View
The CR8000 Decoded Scan Engine contains an imager with both Wide
Angle and High Density Fields. The Field of View for both Wide Angle
and High Density optics is shown below for Horizontal and Vertical
positioning of the imager:

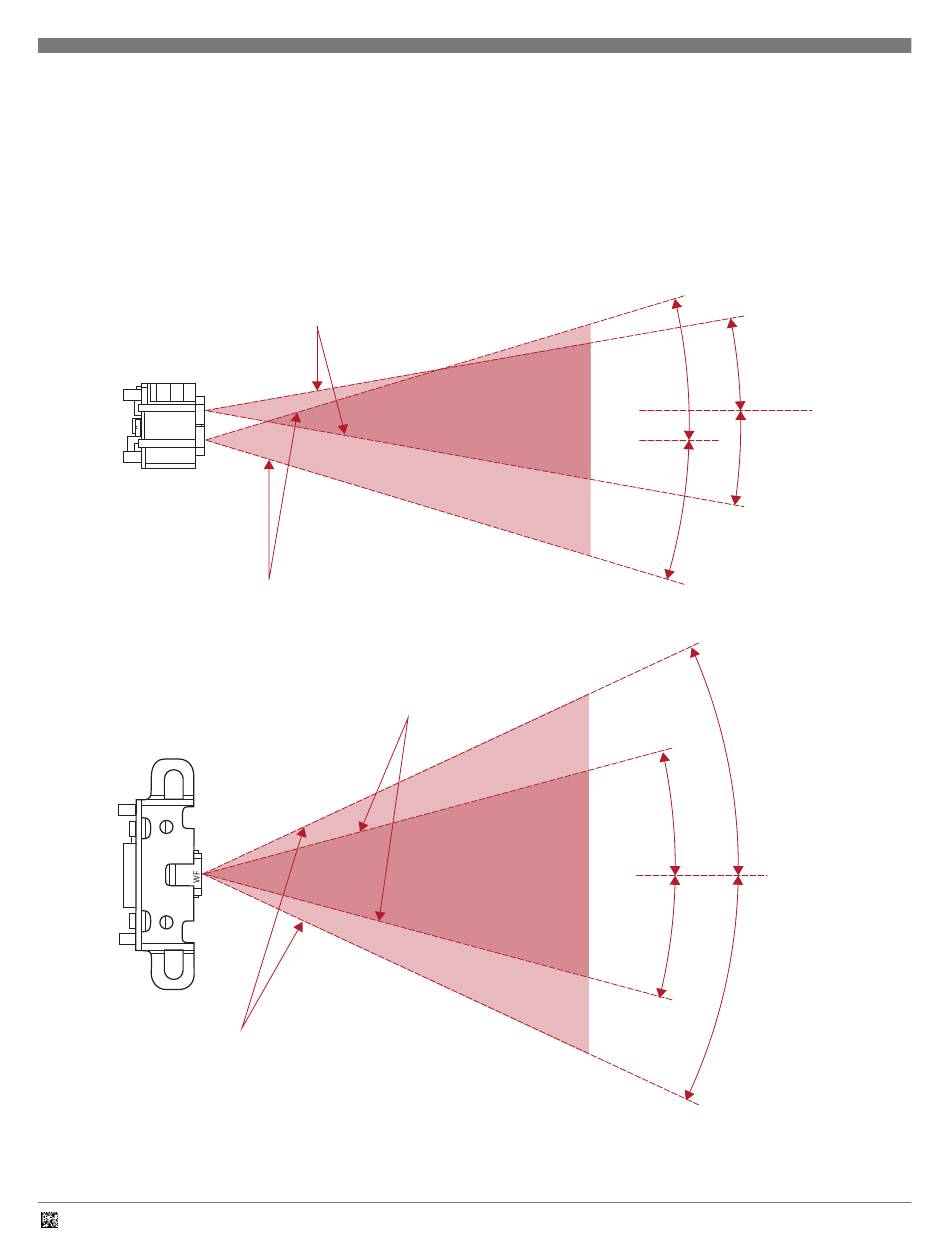

CR8000 Field of View Diagram
WIDE FIELD FOV
WIDE FIELD FOV
C005383_10 CR80XX Integration Guide
HIGH DENSITY FOV
HIGH DENSITY FOV
16.75 ˚
10.00 ˚
10.00 ˚
16.75 ˚
25.00 ˚
15.00 ˚
15.00 ˚
25.00 ˚
