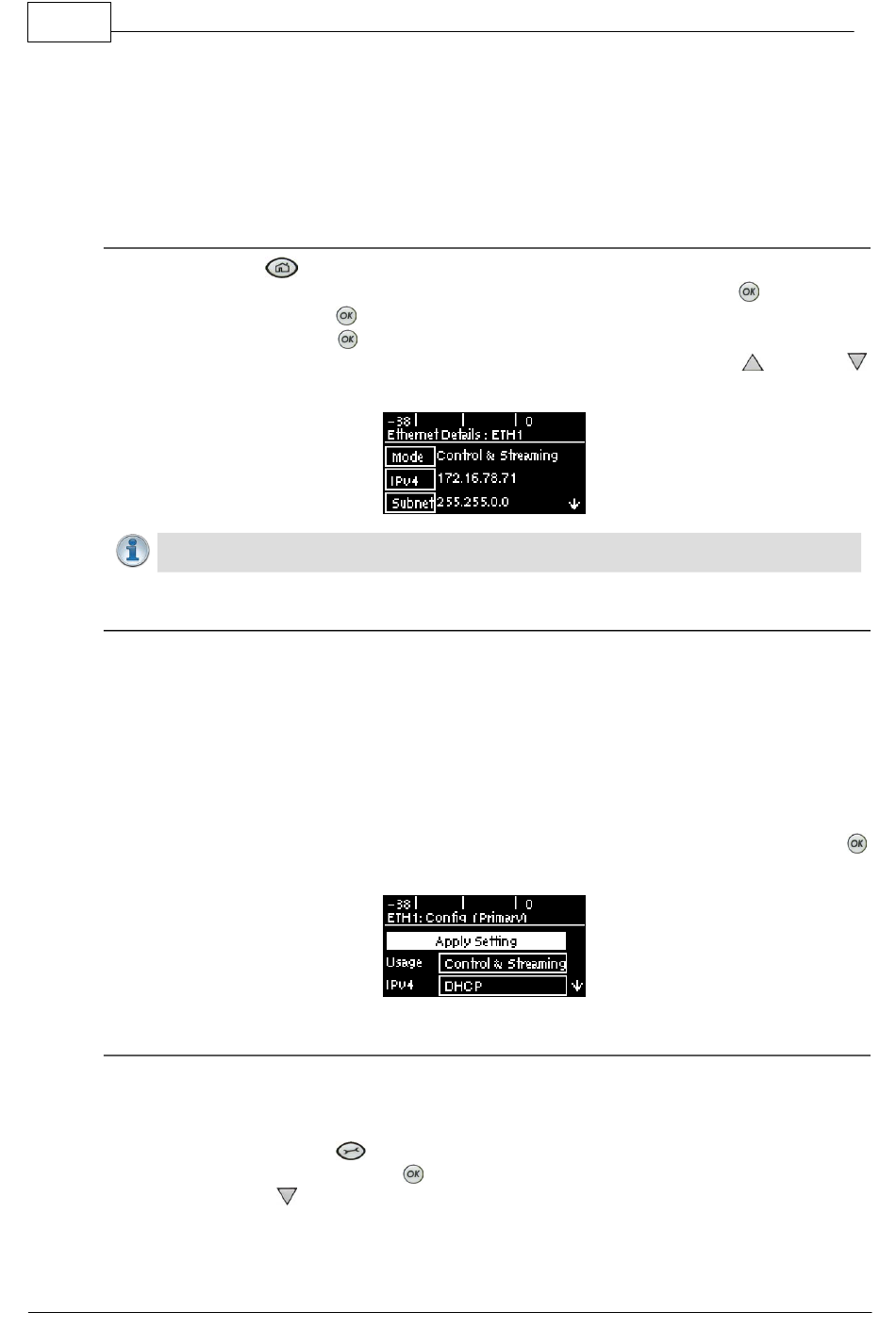

17 Front Panel Configuration Tasks
The following sections explain how to configure codec settings using the front panel LCD screen
and KEYPAD.

Configuring IP via the Front Panel

17.1
Checking IP Address Details in the Codec
1. Press the Home
2. Use the navigation buttons on the front panel to select Settings and press the
3. Select Unit and press the
4. Select LAN and press the
5. IP address details and other relevant information is listed. Use the arrow up
buttons to scroll and view all details listed.
Important Note: For assistance with configuration of IPv4 or IPv6 network connections
contact your IT Administrator.
Ethernet and VLAN Configuration Options
The codec features a Ethernet port and up to four additional VLAN interfaces.
VLAN interfaces have features similar to physical Ethernet ports. However, your network
administrator will need to configure VLAN support throughout your network for VLANs to be
supported in your codec.
As an example, when only one physical Ethernet interface is available, VLANs can be used to
separate codec Control and Streaming functions if required.
Following are a range of Ethernet and VLAN settings which can be configured in the Network
menu. After completing configuration ensure you navigate to Apply Setting and press the
button to apply the new settings.
Configure an IPv4 DHCP Address
By default the codec is programmed for DHCP-assigned IP addresses. DHCP IP addresses are
automatically assigned and can change each time you connect to your Internet Service Provider or
by a router on your local area network (LAN).
1. Press the SETTINGS
2. Select Network and press the
3. Use the down
button to return to the home screen.
button.
button.
button.
button.
navigation button to select LAN or a VLAN interface.
button.
and down
