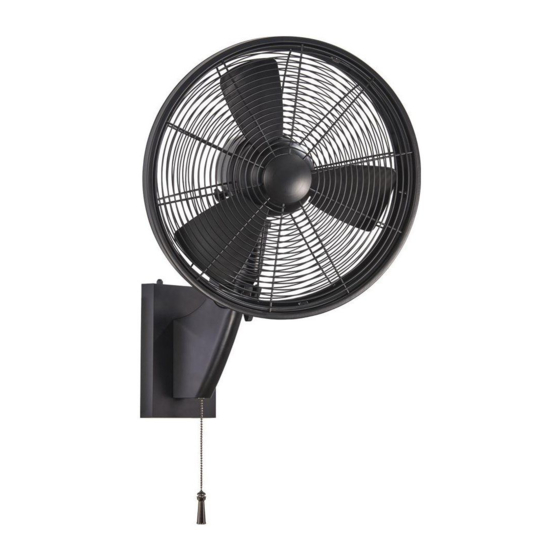

minkaAire Anywhere F307 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ANYWHERE
TM
BY
INSTRUCTION MANUAL WARRANTY CERTIFICATE
U.S. Patent(s) Pending

Advertisement

loading
Need help?

Need help?

Do you have a question about the Anywhere F307 and is the answer not in the manual?

Questions and answers

Related Manuals for minkaAire Anywhere F307

Summary of Contents for minkaAire Anywhere F307

  • Page 1 ANYWHERE INSTRUCTION MANUAL WARRANTY CERTIFICATE U.S. Patent(s) Pending...
  • Page 2 ©2017 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
  • Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
  • Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
  • Page 5 CONTENTS SAFETY RULES..................CARE OF YOUR FAN..................PACKAGE CONTENTS..............TROUBLESHOOTING..................HANGING THE FAN................. SPECIFICATIONS....................OPERATING YOUR FAN..............LISTED E320317 1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267...

  • Page 6: Safety Rules.................................................................................... 1 Care Of Your Fan

    SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. CAUTION: CAUTION: To avoid personal injury, the use of gloves may nrcessary while handling fan parts with sharp edges. CAUTION: CAUTION: To reduce the risk of personal injury, mount the fan base to a stud, wood post or beam using the hardware provided with your fan.
  • Page 7 5. This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product.
  • Page 8 WARNING: WARNING: Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. WARNING: WARNING: If using this fan in a WET location, this fan must be connected to a supply circuit that is protected by a Ground Fault Circuit interrupter (GFCI) to reduce the risk of personal injury, electrical shock or death.
  • Page 9 PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan motor assembly A. Mounting hardware: #10x 1.5" Mounting screws (6PCs.) B. Rubber cover C. Pull chain fob...
  • Page 10 HANGING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. WALL BRACKET WARNING: WARNING: All of the parts, hardware have been provided for your safety and the proper installation of your new fan. The use of other parts, hardware or components not supplied by Minka Aire with ®...
  • Page 11 A. THE WALL HAS AN WALL OUTLET A. THE WALL HAS AN WALL OUTLET CAUTION: CAUTION: If you are going to attach the fan to a wood stud or wood post, the stud or wood post must be wide enough and thick enough to sustain the wall bracket and the weight of the fan.
  • Page 12 WARNING: WARNING: Make sure that all 2 hooks on the wall bracket have engaged complately with the 2 slots in the fan assembly and that the fan assembly is stable. 5. Replace the thumbscrews at bottom of fan assembly be sure to securely tighten thumbscrews. (Fig. 4) 6.
  • Page 13 PILOT HOLES WALL BRACKET HOOKS STUD MOUNTING HOLES FAN ASSEMBLY BLOWN FUSE 5 AMPS, WALL FUSE 125V BRACKET FAN ASSEMBLY PLUG MOUNTING SCREWS FUSE COVER WALL WALL OUTLET THUMB- OUTLET SCREWS SLOTS FIG. 3 FIG. 4 FIG. 5 FIG. 6...
  • Page 14 B. THE WALL HAS AN SIDE MOUNT WALL OUTLET BOX B. THE WALL HAS AN SIDE MOUNT WALL OUTLET BOX WARNING: WARNING: If your wall are with an side mount wall outlet box only, follow the steps below to hang your fan properly: 1.
  • Page 15 SETSCREW POWER CUT OFF WIRE POWER BACK COVER BACK COVER CORD 3-PIN WIRE MOUNTING MOUNTING CONNECTORS SCREWS SCREWS BACK COVER BACK COVER POWER CORD POWER WIRE FAN ASSEMBLY RUBBER COVER FAN ASSEMBLY FIG. 7 FIG. 8 FIG. 9...
  • Page 16 5. First determine the approximate position of where you want the fan to be located on the wall. You must use ALL SIX ALL SIX holes in wall bracket when installing wall bracket. Position wall bracket on wood stud or wood post and mark 6 hole locations. (Fig. 10) 6.
  • Page 17 9. Grab the fan firmly with two hands. Align the 2 slots in the middle of the back of the fan assembly with the 2 hooks on the wall bracket and then pull down firmly on fan assembly. (Fig. 12) PILOT HOLES STUD MOUNTING...
  • Page 18 POLYURETHANE ADHESIVE WALL BRACKET HOOKS FAN ASSEMBLY FAN ASSEMBLY WIRE NUTS THUMB- SCREWS SLOTS WALL FIG. 11 FIG. 12 FIG. 13...

  • Page 19: Operating Your Fan

    OPERATING YOUR FAN Install the pull chain and fob onto the pull chain located in bottom of the fan. Turn on the power and check the operation of the fan. (Fig. 14) A. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
  • Page 20 CARE OF YOUR FAN GUARD SETSCREWS Here are some suggestions to help maintain your fan. 1. Because of the fan's natural movement some connections may become loose. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. 2.

  • Page 21: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check the main and branch circuit fuses or breakers. Make sure all screws on fan motor assembly and fan guards are snug. Check the line wire connections to the fan. Make sure the safety guard are securely in place.

  • Page 22: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. They Fan Size Speed Volts Amps Watts N.W. G.W. C.F. do not include amps and wattage used by the light(s). 0.218 25.1 605.7 7.38 9.26 4.023' 13.5" Medium 0.284 33.8 889.69 High 0.363...
