Summary of Contents for minkaAire Sunseeker

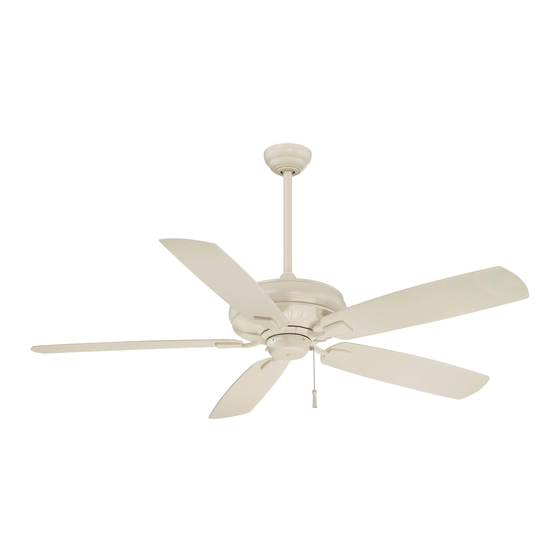

- Page 1 SUNSEEKER INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES................... ATTACHING THE FAN BLADES............PACKAGE CONTENTS..............ATTACHING THE SWITCH CUP............INSTALLING THE FAN..............OPERATING YOUR FAN................ HANGING THE FAN................ CARE OF YOUR FAN................ELECTRICAL CONNECTIONS............TROUBLESHOOTING................FINISHING THE INSTALLATION..........SPECIFICATIONS..................LISTED E75795 1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267... -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: A. Mounting hardware: #10 x 1.5" Wood screws (2 PCs.) 1. Fan blades (5 ) #8 x 3/4" Machine screws (2 PCs.) 2. Hanger bracket Lock washers (2 PCs.) 3. -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING (MIN. 2" THICK) MOUNTING OPTIONS JOIST OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. -
Page 10: Hanging The Fan
HANGING THE FAN Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) Thread WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and Downrod into the Coupling until the holes are lined up and secure with the the proper installation of your new ceiling fan. - Page 11 DOWNROD RUBBER COVER OUTLET BOX DOWNROD DOWNROD CROSS PIN CANOPY COUPLING SET SCREWS *OMIT COUPLING HITCH COVER WHEN LOCK HANGER THE MINIMUM-LENGTH CANOPY COVER SUPPLY REGISTRATION BALL DOWNROD SET SCREW WIRES SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 5 Fig.
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN. REMEMBER to shut the power off at the circuit breaker or fuse box. HOUSE WIRE SUPPLY WHITE (NEUTRAL) GREEN (GROUND) BLACK (HOT) Follow the steps below to connect the fan to your house supply wires. Use the wire nuts supplied with your fan. - Page 13 FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH. FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH. HOUSE WIRE SUPPLY HOUSE WIRE SUPPLY WHITE (NEUTRAL) GREEN (GROUND) WHITE (NEUTRAL) GREEN (GROUND) BLACK (HOT) BLACK (HOT) CEILING CEILING LIGHT SWITCH...
-
Page 14: Finishing The Installation
FINISHING THE INSTALLATION OUTLET BOX Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow HANGER section of the key holes. -
Page 15: Attaching The Fan Blades
ATTACHING THE FAN BLADES Step 1. Attach the fan blades to the blade holders using the screws and rubber washers provided, tighten screws securely. (Fig. 15) SCREWS Step 2. Remove rubber stops from motor. Rotate RUBBER FAN MOTOR motor so that the screw holes are revealed BLADE WASHERS through the opening on switch cap plate. -
Page 16: Attaching The Switch Cup
ATTACHING THE SWITCH CUP Step 1. Remove the screws from the motor housing, place the switch cup plate over the motor housing and align the holes. Secure in place with screws previously removed. (Fig. 17) Step 2. Remove the screws from the switch cup plate. Place the switch cup close to the switch cup plate, align the plastic connectors from switch cup and the switch cup plate and firmly snap the two connectors. -
Page 17: Operating Your Fan
OPERATING YOUR FAN Restore power to ceiling fan and test for proper operation. Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans, etc. The Reverse switch is located on the switch cup. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. - Page 18 WINTER OPERATION SUMMER OPERATION Fig 19 Fig 20...
-
Page 19: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become 5. -
Page 20: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy Fan Wobble SOLUTION SOLUTION SOLUTION Check fuses or circuit breakers. Allow a 24-hour "break-in" period. Most noises as Check that all blade and blade holder screws sociated with a new fan go away during this time. are secured. -
Page 21: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. They do not Fan Size Speed Volts Amps Watts N.W. G.W. C.F. include amps and wattage used by the light(s). 0.22 10.9 2539.26 12.73 14.46 60" Medium 0.39 31.8 3673.01 2.673' kgs.
