Summary of Contents for minkaAire Sundance F571

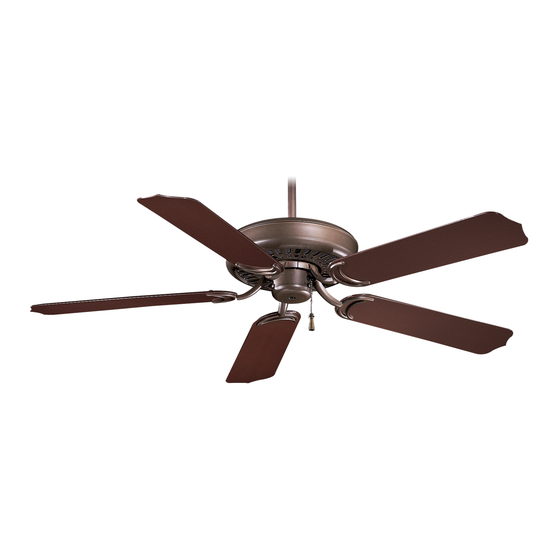

- Page 1 SUNDANCE INSTRUCTION MANUAL WARRANTY CERTIFICATE INSTRUCT...
- Page 2 Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright Laws.
- Page 3 warranty is for one (1) year from the date of purchase from an authorized Minka-Aire dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty servic during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty ®...
- Page 5 CONTENTS 1151W. Bradford Court, Corona CA 92882 For Customer Assistance Call: 1-800-307-3267...
-
Page 6: Safety First
SAFETY FIRST 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2.Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE:The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blade #10-12X38mm wood Pull Chain Fb (1pc.) 2. Coupling cover screws (2 pcs) Wire Nuts (3 pcs.) 3. Fan motor/housing ass'y Spring washers (2 pcs) Balancing Kit 4. -
Page 9: Begin Installation
BEGIN INSTALLATION Tools Required: Phillips screw driver; slotted screw driver;pliers;wire cutters; electrical tape. MOUNTING OPTIONS CEILING JOIST PARALLEL WOOD BRACE (MIN. 2" THICK) If there isn' t an existing outlet box, then read the following instructions. Shut the CROSS BRACE OUTLET power off at the circuit breaker or fuse box. -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4. Carefully feed fan wires up through the downrod and then hanger bracket and hanger ball have been provided for your safety through the holes in the rubber cap on the top of the downrod. Insert and the proper installation of your new ceiling fan. - Page 11 RUBBER CAP OUTLET BOX C R OS S PIN SET SCREWS HA NG E R B A L L SET SCREW LOCK PIN DOWNR OD REGISTRATION SLOT HITCH PIN HANGER BRACKET Fig.6 Fig.7 Fig.9 Fig.5 Fig.8...
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS REMEMBER to shut the power off at the circuit breaker or fuse (and the blue wire if light kit is installed)are on the other side of the outlet box. Turn splices upward and tuck them carefully into outlet box. Follow the steps below to connect the fan to your house supply wires. - Page 13 FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN. HOUSE WIRE SUPPLY WHITE (NEUTRAL) GREEN (GROUND) BLACK (HOT) CEILING WALL WHITE (NEUTRAL) BLUE (OPTIONAL LIGHT) GROUND- BLACK (MOTOR) (CONNECT TO GROUND WIRE ON HANGER BRACKET IF NO HOUSE GROUND WIRE EXISTS.) Fig.10...
- Page 14 FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH. FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH. HOUSE WIRE SUPPLY HOUSE WIRE SUPPLY WHITE (NEUTRAL) WHITE (NEUTRAL) GREEN (GROUND) GREEN (GROUND) BLACK (HOT) BLACK (HOT) CEILING CEILING LIGHT...
-
Page 15: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 16: Attaching The Fan Blades
ATTACHING THE FAN BLADES Step 1. Attach the fan blade to the blade FAN MOTOR bracket using rubber washer, metal washer and METAL WASHERS RUBBER WASHERS screws provided. Tighten screws securely. Repeat for remaining blades. (Fig. 14) FAN BLADE Step 2. Remove and discard the rubber stops from FAN BLADE the motor.Align holes in blade bracket and motor and secure with proper screws. -
Page 17: Operating Your Fan
OPERATING YOUR FAN Restore power to ceiling fan and test for Warm weather- (Forward) The pull chain on your fan controls the speed proper operation. settings as follows: A downward air flow creates a cooling effect Speed settings for warm or cool weather as shown in Figure 16.This allows you to set depend on factors such as the room your air conditioner on a warmer setting... -
Page 18: Summer Operation
WINTER OPERATION SUMMER OPERATION... -
Page 19: Maintenance
MAINTENANCE Here are some suggestions to help you maintain your fan. 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachemets twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2. -
Page 20: Troubleshooting
TROUBLESHOOTING Problem Solution Problem Problem Problem Fan will not start. Fan sounds noisy. Fan Wobble Solution Solution Solution 1. Check fuses or circuit breakers. 1. Allow a 24-hour "break-in" period. Most 1.Make sure your hanger bracket and outlet box are noises associated with a new fan go away secure. -
Page 21: Specifications
SPECIFICATIONS Fan Size Speed Volts Watts N.W. G.W. These are typical readings. Your actual fan may vary. They F571 0.22 2090 do not include amps or wattage used by the light kit. 52" 0.39 29.1 3704 16.1LBS 18.7LBS 1.9’ High 0.56 63.3 5596... - Page 22 2090 3704 29.1 5596 63.3...
