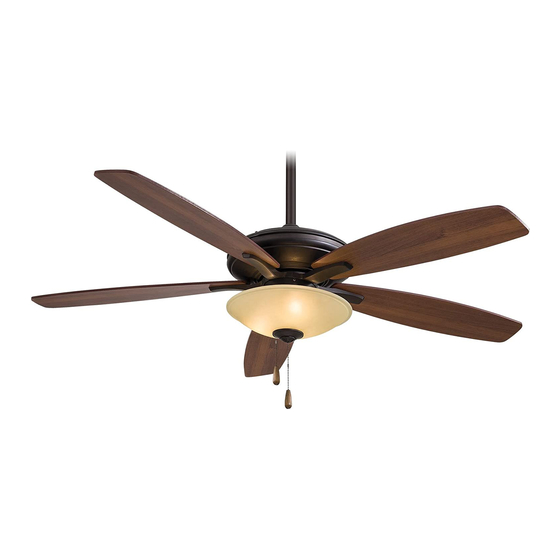

Summary of Contents for minkaAire Mojo F522

  • Page 1 CERTIFICATE...
  • Page 2 Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
  • Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship light bulbs excluded for one full year.
  • Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.

  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES ........... INSTALLING THE LIGHT KIT ASSEMBLY ......... PACKAGE CONTENTS ........INSTALLING THE GLASS SHADE & LIGHT BULB ......INSTALLING THE FAN ........FAN WITHOUT LIGHT KIT ..............HANGING THE FAN .......... OPERATING YOUR FAN ..............ELECTRICAL CONNECTIONS ......

  • Page 6: Safety Rules

    SAFETY RULES Before you begin installing the fan, shut power off the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes. Hire a qualified electrician or consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device, If lamping exceeds 190watts, the ceiling fan’s light kit will shut off automatically. NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.

  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: A. Mounting hardware: 1. Fan blades(5) 2. Hanger bracket Wire nuts(3) #8x3/4”Machine screws (2) 3. Canopy #10x1.5Wood screws (2) 4. Canopy cover 4mm Star washers (2) 5.

  • Page 9: Installing The Fan

    INSTALLING THE FAN Tools Required: Philips screw driver, slotted screw driver, step-ladder, wire cutters, electrical tape. PA RALLEL WOOD BRACE CEILING (MIN. 2’’ THICK) JOIST MOUNTING OPTIONS OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.

  • Page 10: Hanging The Fan

    HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4.Carefully feed fan wires up through the downrod(Fig 8). hanger bracket and hanger ball have been provided for your safety and Thread the rod into the coupling, next line up holes and replace lock the proper installation of your new ceiling fan.
  • Page 11 DOWNROD OUTLET BOX CANOPY DOWNROD COUPLING CROSS PIN *OMIT COUPLING SET SCREWS COVER WHEN USING HITCH THE MINIMUM-LENGTH LOCK DOWNROD HANGER SUPPLY CANOPY REGISTRATION BALL SET SCREW WIRES COVER SLOT SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 6 Fig. 7 Fig.

  • Page 12: Electrical Connections

    ELECTRICAL CONNECTIONS FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN. REMEMBER to shut the power off at the circuit breaker or fuse HOUSE WIRE SUPPLY WHITE (NEUTRAL) GREEN (GROUND) box. BLACK (HOT) Follow the steps below to connect the fan to your house supply wires. CEILING Use the wire nuts supplied with your fan.
  • Page 13 FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH. FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH. HOUSE WIRE SUPPLY HOUSE WIRE SUPPLY WHITE (NEUTRAL) GREEN (GROUND) WHITE (NEUTRAL) GREEN (GROUND) BLACK (HOT) BLACK (HOT) CEILING CEILING LIGHT SWITCH...

  • Page 14: Finishing The Installation

    FINISHING THE INSTALLATION OUTLET BOX Step 1. Tuck connections neatly into ceiling outlet box. Step 2. Remove one screw from the hanger bracket and loosen the other screw around 1/4 . ” HANGER Step 3. Align the canopy up to ceiling and over the loose screw. Place the canopy into key hole BRACKET and rotate canopy clockwise.

  • Page 15: Blade Installation

    BLADE INSTALLATION THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE INSTALLING THE SWITCH CUP. Screw Step 1.Attach the fan blade to the blade holder using the screws Fiber Blade and fiber washers provided. Tighten screws securely. Repeat Washer holder process for remaining blades.(Fig.15) Step2.Remove the rubber stops from motor.

  • Page 16: Installing The Light Kit Assembly

    INSTALLING THE LIGHT KIT ASSEMBLY Step1. Remove the light kit plate from the light kit assembly by removing three screws from the rim of the light kit plate and reserve the screws. Step2.Remove 1of 3screws from the mounting ring and loosen the other 2 screws.(Do not remove.) (Fig.17) Mounting ring Step3.Place the key holes from the light kit plate over the 2 screws previously...

  • Page 17: Installing The Glass Shade & Light Bulb

    INSTALLING THE GLASS SHADE & LIGHT BULB WARNING:Shut of the power supply before removing or replacing lamp. If you accidentally come into contact,wipe thoroughly with a clean,lint-free,cotton cloth. Use light bulb in accordance with the fan’s specification.TO REDUCE THE RISK OF FIRE DO NOT EXCEED MAXIMUM WATTAGE RATING.
  • Page 18 Remarked: the fan is provided extra cap and finial, which can be used when the fan is installed with univeral remote control(Not Provided) a) Before install the univeral remote control(Not Provided), please make sure the fan speed pull Pull chain chain control is set to "high speed"and the light pull chain control is set to "...

  • Page 19: Fan Without Light Kit

    FAN WITHOUT LIGHT KIT Step 1. Disassemble the switch cup from the light kit. You can keep the light kit for future use. (Fig 20) Washer Step 2. Attach the plastic plug to the switch cup. (Fig 21) Light kit plate Switch cup Step 3.

  • Page 20: Operating Your Fan

    OPERATING YOUR FAN Restore power to ceiling fan and test for proper operation. Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans, etc. The Reverse switch is located on the switch cup. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation.
  • Page 21 WINTER OPERATION SUMMER OPERATION Fig. 22 Fig. 23...

  • Page 22: Care Of Your Fan

    CARE OF YOUR FAN 4.There is no need to oil your fan. The motor has Here are some suggestions to help maintain your fan. permanently lubricated bearings. 1.Because of the fan’s natural movement some connections may 5.If your fan is provided with glass shades, clean with lukewarm become loose.

  • Page 23: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24 - hour “ break in ” period. Most noises associated Check circuit fuses or breakers. with a new fan will go away during this time.
  • Page 24 SYMPTOM SYMPTOM Lights shut off and will not come back on Fan Wobble SOLUTION SOLUTION This unit is equipped with a wattage limiting device. Lamping in NOTE:All blade sets are grouped by weight. Because wood and plastic excess of 190 watts will disable your ceiling fan’s light kit. To reset blades vary in density, the fan may wobble even though blades are your light kit you must turn the power off and re lamp, keeping the matched.

  • Page 25: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the light (s). 0.27 13.68 1935 7.93 9.35 ” 0.42 34.03 3384 1.96’ For any additional information about your 0.57 67.39 4682 Minka Aire Ceiling fan, please write to:...
  • Page 26 1935 13.68 141.45 3384 34.03 99.44 4682 67.39 69.48...
