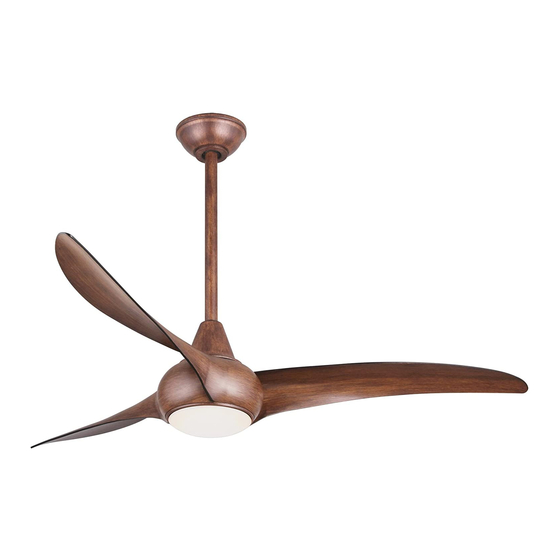

minkaAire Light Wave Instruction Manual
  1. Manuals
  2. Brands
  3. minkaAire Manuals
  4. Fan
  5. Light Wave
  6. Instruction manual

minkaAire Light Wave Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Light Wave
CERTIFICATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Light Wave and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for minkaAire Light Wave

Summary of Contents for minkaAire Light Wave

  • Page 1 Light Wave CERTIFICATE...
  • Page 2 Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
  • Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship light bulbs excluded for one full year.
  • Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.

  • Page 5: Table Of Contents

    CONTENTS SAFETY RULES ........... FINISHING THE INSTALLATION ............PACKAGE CONTENTS ........INSTALLING THE 17W LED ASSEMBLY ..........INSTALLING THE FAN ........OPERATING THE REMOTE CONTROL/WALL CONTROL ....BLADE INSTALLATION ........CARE OF YOUR FAN ................HANGING THE FAN .......... TROUBLESHOOTING ................

  • Page 6: Safety Rules

    SAFETY RULES Before you begin installing the fan, shut power off the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes. Hire a qualified electrician or consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring.
  • Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product.

  • Page 8: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: A. Mounting hardware: 1. Fan blades(3) 2. Hanger bracket #8x3/4”Machine screws (2) #10x1.5”Wood screws (2) 3. Canopy 4mm Star washers (2) 4. Canopy cover Metal washers (2) 5.

  • Page 9: Installing The Fan

    INSTALLING THE FAN Tools Required: Philips screw driver, slotted screw driver, step-ladder, wire cutters, electrical tape. PA RALLEL WOOD BRACE CEILING (MIN. 2’’ THICK) JOIST MOUNTING OPTIONS OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.

  • Page 10: Blade Installation

    BLADE INSTALLATION Screw Screw Step 1. Align the 3 holes from the blade to the Flywheel fan motor. Fan motor Secure blade with 3 blade screws with locked washer provided. Follow the same process for the remaining two blades. (Fig. 5) All blade sets are grouped together by weight.

  • Page 11: Hanging The Fan

    HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4.Carefully feed fan wires up through the downrod(Fig 10). hanger bracket and hanger ball have been provided for your safety and Thread the rod into the coupling, next line up holes and replace lock the proper installation of your new ceiling fan.
  • Page 12 DOWNROD OUTLET BOX CANOPY DOWNROD CROSS PIN SET SCREWS CANOPY HITCH COVER LOCK HANGER SUPPLY REGISTRATION BALL SET SCREW COUPLING WIRES SLOT COVER SCREWS LOCK PIN DOWNROD HITCH PIN HANGER BRACKET Fig. 12 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig.

  • Page 13: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING:To avoid possible electrical shock be sure electricity is Step 2. Motor to Receiver Electrical Connections: Connect the turned off at the main fuse or breaker box before wiring. WHITE wire from the fan to the WHITE wire marked”TO MOTOR N”...
  • Page 14 Step 3.Receiver to House Supply Wires Electrical connections: Connect the WHITE wire(Neutral) from the outlet box to the WHITE wire marked”AC in N” from the receiver. Connect the BLACK wire(Hot) from the outlet box to the BLACK wire marked “AC in L” from the receiver. Secure all wire connections with the plastic wire nuts provided.(Fig.15) Step 4.If your outlet box has a GROUND wire (Green or Bare Copper) RECEIVER...
  • Page 15 OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) GREEN OR BARE COPPER (GROUND) " " BLACK ( AC IN L ) WHITE ( AC IN N ) " " RECEIVER " " BLACK ( TO MOTOR L ) " " WHITE ( TO MOTOR N ) BLUE (FOR LIGHT) ORANGE (CONNECT TO...

  • Page 16: Finishing The Installation

    FINISHING THE INSTALLATION Step 1. Tuck connections neatly into ceiling outlet box. OUTLET BOX Step 2. Remove one screw from the hanger bracket and loosen the other screw around 1/4” . HANGER BRACKET Step 3. Align the canopy up to ceiling and over the loose screw. Place the canopy into key hole and rotate canopy clockwise.

  • Page 17: Installing The 17W Led Assembly

    INSTALLING THE 17W LED ASSEMBLY Step 1. While holding the 17W LED assembly under your fan, firmly snap the wire connection plugs together. (Fig.17) Step 2 . Attach the 17W LED assembly to the switch box by twisting tightly . (Fig.17) Note: This is a integrated LED light kit assembly and can not be disassembled Switch box to provent electronical shock.

  • Page 18: Operating The Remote Control/Wall Control

    OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a DOWN D.
  • Page 19 Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans, etc. The Reverse switch is located on the coupling. Slide the switch to the down for warm weather operation. Slide the switch to the up for cool weather operation.(Fig. 18) NOTE: Wait for fan to stop before changing the setting of the slide switch.
  • Page 20 WINTER OPERATION SUMMER OPERATION Fig. 19 Fig. 20...

  • Page 21: Care Of Your Fan

    CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4.There is no need to oil your fan. The motor has permanently lubricated bearings. 1.Because of the fan’s natural movement some connections may become loose. Check the support connections, brackets and blade 5.If your fan is provided with glass shades, clean with lukewarm soapy water and a soft cloth or sponge.DO NOT IMMERSE attachment twice a year.

  • Page 22: Troubleshooting

    TROUBLESHOOTING SYMPTOM SYMPTOM Fan Sounds Noisy Fan will not start SOLUTION SOLUTION Allow a 24 - hour “ break in ” period. Most noises associated Check to make sure the wall switch is turned on. with a new fan will go away during this time. Check circult fuses or breakers.
  • Page 23 SYMPTOM SYMPTOM Fans/Light Turn on and Off Unexpectedly Fan Wobble SOLUTION SOLUTION This is caused by interference. Please see “Freduency interference” for NOTE: All blade sets are grouped by weight. step to charge the frequency. Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist.
  • Page 24 SYMPTOM Frequency Interference SOLUTION 1.Turn the power off to your ceiling fan. 2.Please use a small size tool to change the frequency settings on the control system. 3.Returm power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the “Stop” button, doing so will cause the procedure to fail. 4.Within 60 seconds of turning the fan’s AC power ON.

  • Page 25: Specifications

    SPECIFICATIONS These are typical readings. Your actual fan may vary. They do not include amps and wattage used by 0.23 11.22 1752 the light (s). 6.40 7.90 ” 0.38 32.33 3393 2.448’ For any additional information about your 0.54 65.30 5024 Minka Aire Ceiling fan, please write to:...
  • Page 26 1752 11.22 3393 32.33 5024 65.30...
