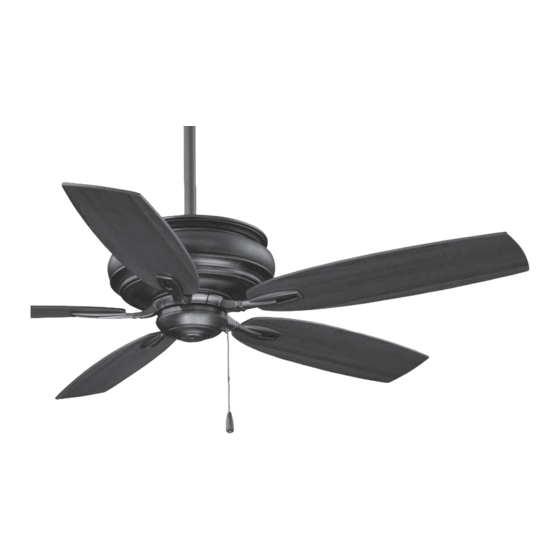

Summary of Contents for minkaAire TIMELESS F614-FB
- Page 1 TIMELESS INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
- Page 3 ® Minka-Aire warrants to the original owner that this fan will be free from defects in material and workmanship for one ® year from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan shall be free from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in the original installation.
- Page 4 This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the fan was not designed.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................ATTACHING THE FAN BLADES............PACKAGE CONTENTS..............ATTACHING THE SWITCH CUP............INSTALLING THE FAN..............OPERATING YOUR FAN............... HANGING THE FAN................CARE OF YOUR FAN................ELECTRICAL CONNECTIONS............TROUBLESHOOTING................FINISHING THE INSTALLATION..........SPECIFICATIONS..................LISTED E75795 1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267... -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blades (5) A. Mounting hardware: #10 x 1.5" Wood screws (2 PCs.) 2. Hanger bracket, canopy and #8 x 3/4" Machine screws (2 PCs.) canopy cover assembly Lock washers (2 PCs.) 3a. -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE MOUNTING OPTIONS CEILING (MIN. 2" THICK) JOIST OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 3. Secure the Hanger Bracket to the ceiling outlet box using the hanger bracket and hanger ball have been provided for your safety and screws provided with your outlet box in conjunction with the the proper installation of your new ceiling fan. - Page 11 Step 7. Slip Coupling Cover and Canopy onto Downrod. Carefully re-install the Hanger Ball onto the Downrod being sure that it's properly positioned over the Cross Pin and the wires are not twisted, tighten Set Screw. (Fig. 10) Step 8. Lift the Motor Assembly and place the Hanger Ball into the Hanger Bracket. Rotate the HANGER BRACKET Motor Assembly as needed until the check groove from the Hanger Ball rests firmly over the registration tab from the Hanger Bracket.
- Page 12 DOWNROD OUTLET BOX COUPLING CANOPY DOWNROD CROSS PIN *OMIT COUPLING COVER WHEN SET SCREWS THE MINIMUM-LENGTH HITCH DOWNROD LOCK CANOPY COVER HANGER SUPPLY REGISTRATION BALL SET SCREW WIRES SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 11 Fig. 6 Fig. 7 Fig.
-
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS REMEMBER to shut the power off at the circuit breaker or fuse box. FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN. Follow the steps below to connect the fan to your house supply wires. Use the wire nuts supplied with your fan. - Page 14 FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH. FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH. HOUSE WIRE SUPPLY HOUSE WIRE SUPPLY WHITE (NEUTRAL) GREEN (GROUND) WHITE (NEUTRAL) GREEN (GROUND) BLACK (HOT) BLACK (HOT) CEILING CEILING LIGHT SWITCH...
-
Page 15: Finishing The Installation
FINISHING THE INSTALLATION OUTLET BOX Step 1. Slide the canopy up to ceiling and over the 2 screws on the hanger bracket. Rotate canopy clockwise. Next, while holding the canopy with one hand, slide the HANGER BRACKET canopy cover over the screws and rotate clockwise until tight. Note: adjust the canopy screws as necessary until the canopy and canopy cover are snug. -
Page 16: Attaching The Fan Blades
ATTACHING THE FAN BLADES Step 1. Attach the fan blades to the blade holders using the screws and fiber washers provided, SCREWS tighten screws securely. (Fig. 16) FAN BLADE FAN MOTOR FIBER WASHERS Step 2. Remove rubber stops from motor. Rotate FAN BLADE motor so that the screw holes are revealed through the opening on switch cap plate. -
Page 17: Attaching The Switch Cup
ATTACHING THE SWITCH CUP Step 1. Remove the 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes on the switch cup plate over the 2 screws previously loosened from the mounting ring, turn switch cup plate until it locks in place at the narrow section of the key holes. -
Page 18: Operating Your Fan
OPERATING YOUR FAN Restore power to ceiling fan and test for proper operation. Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans, etc. The Reverse switch is located on the switch cup. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. - Page 19 WINTER OPERATION SUMMER OPERATION Fig 20 Fig 21...
-
Page 20: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become 5. -
Page 21: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM SYMPTOM Fan Wobble Fan will not start Fan will not start SOLUTION SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises Because wood and plastic blades vary in Check circuit fuses or breakers. -
Page 22: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. They do not Fan Size Speed Volts Amps Watts N.W. G.W. C.F. include amps and wattage used by the light (s). 0.24 11.6 2363 54" 9.65 10.95 0.39 30.2 2.16' Medium 4040 0.59... - Page 23 2363 11.6 30.2 4040 70.5 6257 Ceiling fan airflow is measured in cubic feet per minute (CFM). Power use is measured in watts. To maximize energy savings:...
