PCE Instruments PCE-2500N User Manual

Material tester
Hide thumbs Also See for PCE-2500N:
Table of Contents

Advertisement

Quick Links

User Manual
PCE-2500N/PCE-2600N Material Tester
User manuals in various languages (français,
italiano, español, português, nederlands, türk, polski,
русский, 中文) can be found by using our
product search on: www.pce-instruments.com
Last change: 16 May 2018
v1.0
© PCE Instruments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-2500N and is the answer not in the manual?

Questions and answers

Related Manuals for PCE Instruments PCE-2500N

Summary of Contents for PCE Instruments PCE-2500N

  • Page 1 User Manual PCE-2500N/PCE-2600N Material Tester User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 16 May 2018 v1.0 © PCE Instruments...

  • Page 2: Table Of Contents

    Readings displayed .......................10 Calibration ................... 12 Battery replacement................12 10 Additional information ................ 12 10.1 Specifications of impact device ...................12 10.2 Sample requirements ....................12 10.5 Conversion chart HLD/HLDL .................... 1 11 Warranty ....................1 12 Disposal ....................1 © PCE Instruments...

  • Page 3: Safety Notes

    We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments...

  • Page 4: Features

    Applications: ball bearings and other parts, fault analysis of pressure vessels, steam turbine generators and plants, heavy workpieces, mechanical and permanently installed parts, limited space Delivery contents 1 x hardness tester PCE-2500N or PCE-2600N 1 x charging cable 1 x test block 1 x cleaning brush...
  • Page 5 720 HLD ≠ 720 HLC. Since different impact devices correlate with different conversion charts when converting Leeb hardness values into other hardness units, the impact device used should be indicated in addition to the converted value. © PCE Instruments...

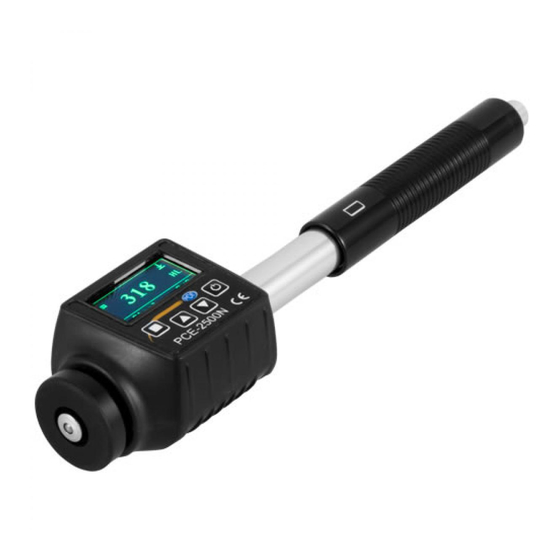

  • Page 6: Device Description

    Device description PCE-2500N Display Keypad Loading tube D-type impact body (within guide tube) Micro USB charging socket Support ring © PCE Instruments...
  • Page 7 PCE-2600N Display Loading tube Keypad DL-type impact body (within guide tube) Micro USB charging socket © PCE Instruments...
  • Page 8 After switching on the device, it will show the main screen: HL: Hardness scale AVE: Average value : Impact direction Difference between PCE-2500N and PCE-2600N PCE-2500N has a D probe for even surfaces • • PCE-2600N has a DL probe for uneven, small surfaces PCE-2500N PCE-2600N ©...

  • Page 9: Technical Specifications

    Storage conditions Temperature: -30 ~ 60 °C Humidity max. 90 °C Power supply Rechargeable lithium battery Dimensions PCE-2500N: 148 x 32 x 25 mm PCE-2600N: 205 x 32 x 25 mm Weight PCE-2500N: 64 g PCE-2600N: 80 g © PCE Instruments...

  • Page 10: Operation

    Surface: The test surface should be as smooth as possible. When the radius of • curvature R of the surface is smaller than 20 mm, a small support ring or another ring- shaped fixing aid should be used. © PCE Instruments...

  • Page 11: Stabilisation Of The Sample

    Hold the device between your thumb and index finger and place it onto the sample. • While doing so, make sure that the support ring lies firmly on the surface and that the impact direction is vertical to the test surface. © PCE Instruments...

  • Page 12: Measurement

    When converting the HLD value into a different hardness unit, the test method should be written as part of the unit. 400HVHLD, for example, stands for a hardness value of 400 HV (hardness according to Vickers), tested by the HLD method (Leeb hardness with D-type impact device). © PCE Instruments...
  • Page 13 See next chapter Language – language Chinese English 8. System Set – system settings Select the corresponding options to set the parameters. You can make a selection using the arrow keys. Confirm your selection with the Menu/Confirm key. © PCE Instruments...

  • Page 14: Calibration

    • Switch on the device to find out if it works properly. • 10 Additional information 10.1 Specifications of impact device Type of impact device D (PCE-2500N), DL (PCE-2600N) Impact energy 11 mJ Impact weight 5,5 g Ball hardness 1600 HV...
  • Page 15 59.6～99.6 59.1～85.8 127～651 83～976 32.2～99.5 Steel 143～650 20.4～67.1 Alloyed tool steel 80～898 46.5～101.7 Stainless steel 85～65 5 85～802 Grey cast iron 93～334 Spheroidal graphite iron 131～387 19～164 Cast aluminium 23.8～84.6 40～173 Brass 13.5～95.3 Bronze 60～290 Copper 45～315 © PCE Instruments...

  • Page 17: Conversion Chart Hld/Hldl

    10.5 Conversion chart HLD/HLDL HLDL HLDL HLDL HLDL HLDL HLDL HLDL HLDL HLDL HLDL © PCE Instruments...

  • Page 19: Warranty

    For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments...
  • Page 20 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 SOULTZ-SOUS-FORETS 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...

This manual is also suitable for:

Pce-2600n
