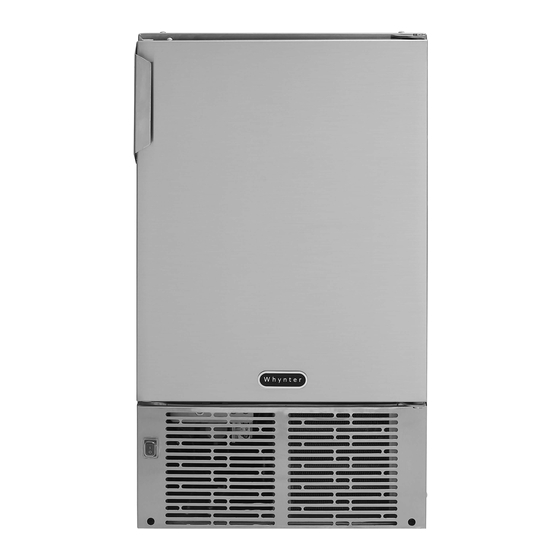

Whynter 14" Undercounter Automatic Stainless Steel Marine Ice Maker
23lb Daily Output
Model # : MIM-14231SS
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual
carefully before using this product. Keep this manual in a safe place for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIM-14231SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Whynter MIM-14231SS

Summary of Contents for Whynter MIM-14231SS

  • Page 1 Whynter 14" Undercounter Automatic Stainless Steel Marine Ice Maker 23lb Daily Output Model # : MIM-14231SS INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.

  • Page 2: Disposal Information

    Thank you for choosing the Whynter 14" Undercounter Automatic Stainless Steel Marine Ice maker. Please follow the instructions provided in this user guide to obtain the very best perfor-mance from your ice maker. We trust that your Whynter Ice Maker will provide the perfor-mance and reliability that we stand for.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS / TECHNICAL SPECIFICATIONS DISPOSAL INFORMATION TECHNICAL INFORMATION SAFETY PRECAUTIONS PARTS AND CONTROL PANEL LCD DISPLAY OVERVIEW INSTALLATION AND OPERATING INSTRUCTIONS 7 – 8 CARE AND MAINTENANCE TROUBLESHOOTING WARRANTY INFORMATION...
  • Page 4 TABLE OF CONTENTS / TECHNICAL SPECIFICATIONS Our Whynter MIM-14231SS features a non-corrosive and durable stainless steel body specifically designed for built-in application on marine vessels. Automatically bringing you 23 lbs of crescent-shaped in 24 hours with 12 lb storage capacity, making it the perfect solution for your ice making needs in virtually any situation. Sold sepa- rately, the optional flange kit (MIM-FK-14231) allows seamless and more finished installation.

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WARNING WHEN USING YOUR ICE MAKER, FOLLOW THESE BASIC PRECAU- TIONS:  Plug into a grounded 3-prong outlet; do not remove grounding prong, do not use an adapter, and do not use an extension cord.
  • Page 6 SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WARNING WHEN USING YOUR ICE MAKER, FOLLOW THESE BASIC PRECAU- TIONS:  Do not use the apparatus other than for its intended purpose.  Cleaning and user maintenance shall not be made by children without supervision. ...

  • Page 7: Parts And Control Panel

    PARTS AND CONTROL PANEL Door Hinge Ice maker Tray Door Hinge Hole Ice Bucket Door Handle Door Latch Power Button Air Intake Air Exhaust Door Rear Vent Water Inlet Port Power Supply Cord Braided Stainless Steel Flexible Hose for water supply 15 Cabinet Flange (Optional, Sold Separately) 16 Cabinet Flange (Optional, Sold Separately) ** Parts 15 and 16 - for cabinet installation.

  • Page 8: Installation And Operating Instructions

    INSTALLATION AND OPERATING INSTRUCTIONS LEVELLING THE ICE MAKER It is important for the ice maker to be leveled in order to work properly. It can be raised or lowered by turning the four feet on the bottom of the machine. We recommend using a carpenter’s level to check the machine. 1.
  • Page 9 INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION OF YOUR ICE MAKER  This ice maker should be installed by a licensed plumber only  Locate the ice maker away from direct sunlight and sources of heat (stove, heater, radiator, etc.) as it may increase electrical consumption.
  • Page 10 INSTALLATION AND OPERATING INSTRUCTIONS To ensure proper service access and ventilation, allow at least 4” clearance at rear, and 1” at top and sides. The in- stallation should allow the ice maker to be pulled forward for servicing if necessary. TRANSPORTATION AND LOCATION REQUIREMENTS ...
  • Page 11 INSTALLATION AND OPERATING INSTRUCTIONS Connecting the water line: 1. Turn off main water supply. Turn on nearest faucet long enough to clear line of water. 2. Find a ½” to ¾” vertical cold water pipe near the installation location. The distance should be less than 9 feet.
  • Page 12 FLANGE KIT INSTALLATION The flange kit allows seamless installation of the Whynter MIM-14231SS which gives a greater degree of person- alized application. This is an optional accessory, sold separately. The flange kit is used for a consistent smooth surface and additional secure fastening by screwing the flange to the cabinet.

  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE CAUTION : Failure to unplug the ice maker could result in electrical shock or personal injury CLEANING AND MAINTENANCE Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets, or there are other special considerations.
  • Page 14 CARE AND MAINTENANCE Condenser cleaning WARNING: DO not touch the condenser surface. The surface is sharp and can be easily damaged. A dirty or clogged condenser prevents proper airflow, reduces ice making capacity, and causes higher than recommended operating temperatures Condenser surface that may lead to component failure.

  • Page 15: Troubleshooting

     Restart the machine after turning it off  Conditions for ice making  Refrigerant leaks/ sealed sys-  Contact Whynter Service Department cycle are right but no ice is tem is blocked made  Water pressure is not properly ...
  • Page 16 ONE YEAR LIMITED WARRANTY This Whynter Ice Maker is warranted, to the original owner within the 48 continental states, for one year from the date of purchase against defects in material and workmanship under normal use and service. Should your Whynter Ice Maker prove defective within one year from the date of purchase, return the defective part or appli- ance, freight prepaid (within two months of purchase;...
