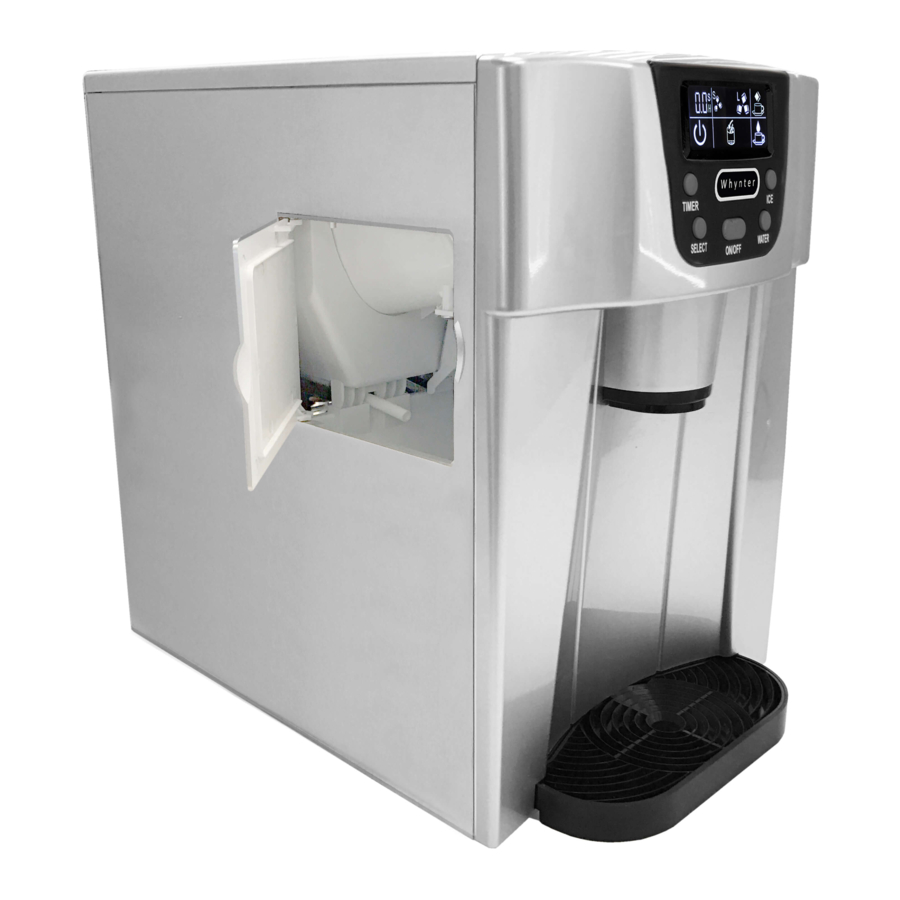

Whynter IDC-221SC - Ice Maker Manual

PARTS AND CONTROL PANEL

1. Ice Bin Access Lid
   1. Ice Full Senso
   2. Ice Shovel
2. Water Inlet Port
3. Power Cord
4. Water Reservoir Access Door
   1. a Ice Reservoir Drain Outlet
   2. b Water Inlet Supply
   3. c Water Level Sensor
   4. d Water Reservoir
5. LCD Display
6. Control Panel
7. Water and Ice Dispenser Outlet
8. Water Drip Tray
9. Air Vent
10. Drain cap and Rubber Drain Plug
11. Rubber Grip Legs (4)
12. 12 ft. Inlet Hose

LCD DISPLAY OVERVIEW

1. TIMER INDICATOR
   Displays remaining time when unit to turn ON or OFF. (see Timer Setting Instructions)
2. ICE SIZE INDICATOR
   This unit produces bullet-shaped ice. Each time you press the ice size selector button, the size selection window will change between Small and Large. The chosen size shall stay as selected unless changed or there is a power failure. When ambient temperature is below 59ºF, the most efficient operation is to use the small cube size setting. In an event of a power interruption, operation does not restart automatically. Upon restart, Large ice size will be selected at default.
3. ICE DISPENSING INDICATOR
   This indicator is displayed when the unit is dispensing ice.
4. ON/OFF INDICATOR
   This indicator is displayed all the time to show that the unit is plugged in and receiving power.
5. OPERATION INDICATORS
   1. ICE FULL INDICATOR
      When the ice bin is full, this indicator will be displayed. The indicator will remain until the ice in the bin either melts away slowly or has been removed. The unit will stay in a "Standby" mode until the ice has been removed / melted at which time the unit will automatically start operation as normal.
   2. WATER INDICATOR
      When the water indicator is solid, the unit is pumping water to make ice. If the water level is too low, the indicator will flash and the unit will stop working automatically. Once you add water to the unit, the indicator will turn off and the unit will resume normal operation.
   3. WARNING INDICATOR
      This indicates that there is an error with the unit. (see Troubleshooting)
6. WATER DISPENSING INDICATOR
   This indicator is displayed when the unit is dispensing water.
7. TIMER BUTTON
   Press to program timer delayed switch ON or OFF function
8. SELECT BUTTON
   Press to program ice size selection and timer.
9. ON/OFF BUTTON
   Press to turn the unit on and off
10. ICE DISPENSER BUTTON
    Press button to dispense ice. Press again to stop ice from dispensing.
11. WATER BUTTON
    Press button to dispense water. Press again to stop water from dispensing.

INSTALLATION OF YOUR ICE MAKER AND WATER DISPENSER

• This unit should be installed by a licensed plumber only (DIRECT WATER CONNECTION METHOD only)
• Before connecting the unit to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Place the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. For best performance, water temperature should be between 55ºF and 85ºF and ambient temperature between 65ºF and 77ºF.
• Plug the unit into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord.
• The unit must be installed with all electrical and water connections in accordance with state and local codes.
• In general, it is always a good idea to filter the water. A water filter can remove taste and odors as well as particles. Where water is very hard, softened water may result in white, mushy cubes that stick together. Deionized water is not recommended.
•
  Do not install the unit near an oven, radiator, or other heat source.

SPACE REQUIREMENTS

• During transportation, the incline angle of the unit should not be over 45°
• Do not turn the unit upside down. Problems could occur in the compressor and sealed system.
• The unit should be located on a hard and level surface that can support the unit when it is full. It is important for the ice maker to be level in order to work properly.
• Before using the unit for the first time, please wait 4 hours after positioning it.
• Clean the ice shovel, water reservoir, and ice scoop frequently.
•
  Do not kink or pinch the power supply cord between the ice maker and wall or cabinet.

OPERATING INSTRUCTIONS
Using this unit requires water. Adding water to this unit can be done in 2 different methods:
MANUAL FILL METHOD

1. Make sure that the unit is turned off.
2. Open the water reservoir access door.
3. Remove any dust or objects that may be in the water reservoir.
4. Fill the water reservoir up to the line marked "MAX". Fill with potable or drinking water only.

DIRECT WATER CONNECTION METHOD
The direct water line can be installed into the unit for a continuous flow of water, preventing you from refilling the water reservoir every time you need more ice or water.
NOTE: When using the direct water connection method, this appliance should be installed by a licensed plumber only.

1. Make sure that the unit is turned off.
2. Insert the inlet hose into the water inlet port. Make sure that the inlet hose if fully inserted to avoid water leakage.
3. Connect the other end of the hose to your water source.
4. Hand screw the hose into the water source and be sure to tighten the connection to avoid leaking.
5. The recommended water pressure is 58 PSI.
6. Turn on main water supply and tap. Check for water supply connection leaks. Tighten any connections.

• When filling the water manually, do not fill the water reservoir past the line marked MAX, as this will cause water to overflow the reservoir and soak electronic components inside the unit.
• Never fill the dispenser with any liquid other than water. This will result to damaging the dispensing system and void the warranty.

ICE MAKING INSTRUCTIONS

1. Turn the unit on by pressing the Power button.
2. Select desired ice size by pressing the ice size selector button (Small or Large).
3. Water will be pumped from the water reservoir to the water tray under the freezing bars. The freezing bars will start freezing. Once the freezing process is complete, the freezing bars will heat up to drop the ice and the ice shovel will push the ice down to the ice storage bin.
4. When the unit is used for the first time, discard the first couple batches of ice.
5. The unit will automatically check the water level in the reservoir periodically and will stop the ice-making cycle when the unit detects any shortage of water.
   MANUAL FILL METHOD: When the water level is low, the water indicator will then start flashing. Press the ON/OFF button to turn off the unit and fill the reservoir with water. Press the ON/OFF button again to restart the ice-making cycle or wait 3 minutes after the water indicator stops flashing as the unit will begin it's normal operation cycle automatically.
   DIRECT WATER CONNECTION METHOD: Once the water reservoir is out of water, the unit will refill automatically up to the MAX line.
6. When the ice reaches the ice full sensor, the unit will stop operating and the ice full indicator will be displayed.
7. Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level. If unit is not in use, drain all water left in the water reservoir.

• When the ambient temperature is lower than 59ºF, the small ice size is recommended to avoid ice clumping together. For best performance, water temperature should be between 55ºF and 85ºF and ambient temperature between 65ºF and 77ºF.
• The ice storage bin does not keep the ice frozen. The ice in the bin will slowly melt and the water will drip to the water reservoir and reused.

DISPENSING ICE AND WATER

1. Place a glass or cup directly below the water and ice dispenser outlet.
2. To dispense ice, press the ICE button. Once the desired amount of ice has been dispensed, press the ice dispenser button to stop.
   To dispense water, press the WATER button. Once the desired amount of water has been dispensed, press the WATER button to stop. This unit only dispenses room temperature water and/or water from the melted ice. Water in the water reservoir is not refrigerated when unit is in operation.

NOTE: As a default, the unit will dispense water for 10 seconds when the WATER button is pressed. The water dispensing default time can be adjusted by holding the WATER button for 3 seconds. Then press the Select button to choose the desired dispensing time from 7 seconds to 25 seconds. Press the WATER button to confirm the selection.

• Do not remove the glass or cup from below the dispensing outlet before the ice or water are finished dispensing.

TIMER SETTING INSTRUCTIONS
TIMER DELAY SWITCH ON
When the unit is OFF, press the Timer button on the control panel and the time indicator will flash. Set the desired time delay ON hours by pressing the Select button. The time increments are 0.5 hour up to 18 hours. The time displayed will change invariably and will decrease by 0.1 Hr. When the delay time set has elapsed, the unit will turn on. To cancel the delayed switch on function, press the Timer button and icon will disappear confirming the function has been cancelled.

TIMER DELAY SWITCH OFF
When the unit is ON, press the Timer button on the control panel and the time indicator will flash. Set the desired time delay OFF hours by pressing the Select button. The time increments are 0.5 hour up to 18 hours. The time displayed will change invariably and will decrease by 0.1 Hr. When the delay time set has elapsed, the unit will turn off. To cancel the delayed switch off function, press the Timer button and icon will disappear confirming the function has been cancelled.

NORMAL SOUNDS
Your unit may make sounds that are not familiar to you. Hard surfaces like the floor and walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them.

• Ratting noises may come from the flow of the refrigerant or the water line, items stored on top of the unit can also make noises.
• The high efficiency compressor may make a pulsating or high-pitched sound.
• Water running from the evaporator to the water reservoir may make a splashing sound.
• As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your unit.
• You may hear air being forced over the condenser by the condenser fan.
• During the harvest cycle, you may hear the sound of ice cubes falling into the ice bin

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your unit if you minimize the number of times the unit cover is opened. If the power is going to be OFF for a longer period of time, you need to take the proper steps to disconnect your appliance. Failure to unplug the unit could result in electrical shock or personal injury.

CARE AND MAINTENANCE

Failure to unplug the unit could result in electrical shock or personal injury
Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. The maintenance intervals listed are based on normal conditions.

• Regularly inspect plumbing connections to insure that no leaks are present.
• Disconnect the water inlet hose if the unit will not be used for a long period of time.
• Never keep anything in the ice storage bin that is not ice.

• Do not touch the power plug when your hands are wet.
• Never unplug the unit by pulling on the cord. Grasp the plug and pull out firmly.

DRAINING YOUR ICE MAKER AND WATER DISPENSER
Follow the steps below to drain the unit.

1. Carefully move the unit towards a sink or other suitable location for draining
2. Remove the drain cap and rubber drain plug located at the bottom side of the unit to access the drain.
3. Let the water drain from the drain plug. Drain cap and rubber drain plug
4. Firmly install the rubber drain plug into the drain port.

Do not tip the unit over while there is water in the reservoir.

REMOVING THE INLET HOSE
To disconnect the inlet hose from the portable unit, push the water inlet button while pulling the inlet hose at the same time.

CLEANING YOUR ICE MAKER AND WATER DISPENSER
To ensure the cleanliness of the ice, water in the reservoir should be replaced every 24 hours.

1. Remove the drain plug to drain remaining water from the water reservoir when the unit will not be used for long period of time. Place the drain plug back in after the water has been drained.
2. Always use potable or drinkable water.
3. Please clean your unit regularly. When cleaning, unplug the unit and remove ice. Do not spray unit with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.

EXTERIOR CLEANING
The unit may be cleaned with a mild detergent and warm water solution such as 1 oz.(28g) of dish-washing liquid mixed with 2 gallons of warm water. Do not use solvent-based or abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spotting.

INTERIOR CLEANING
When necessary, defrost and thoroughly clean the inside of the unit with mild soap and water. Do not use electrical heating devices, sharp or pointed tools when defrosting.
When defrosting or leaving open the unit turned off, leave the ice bin access lid and water reservoir door open.
This allows air to dry the inside of the unit, reducing the chance for mildew and damage to the mold mechanism's components.

TROUBLESHOOTING

SAFETY PRECAUTIONS

TECHNICAL SPECIFICATIONS
