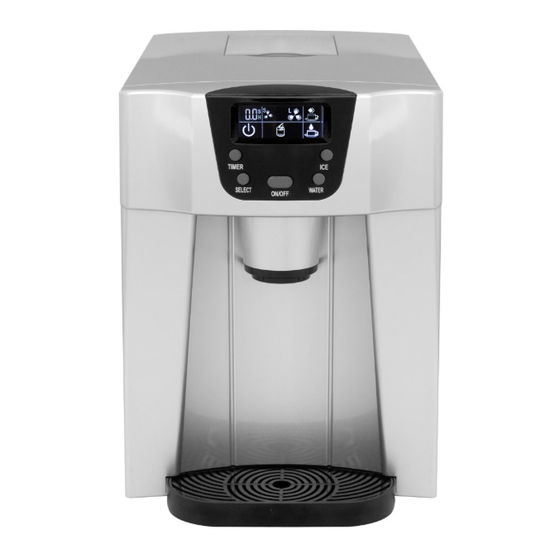

Whynter Countertop Direct Connection Ice Maker
and Water Dispenser - Silver
Model # : IDC-221SC
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual
carefully before using this product. Keep this manual in a safe place for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whynter IDC-221SC
Summary of Contents for Whynter IDC-221SC
- Page 1 Water Dispenser - Silver Model # : IDC-221SC INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
-
Page 2: Disposal Information
Water Dispenser. Please follow the instructions provided in this user guide to obtain the very best performance from your Ice Maker and Water Dispenser. We trust that your Whynter Ice Maker and Water Dispenser will provide the performance and reliability that we stand for. - Page 3 PARTS AND CONTROL PANEL LCD DISPLAY OVERVIEW INSTALLATION AND OPERATING INSTRUCTIONS 7 – 8 CARE AND MAINTENANCE TROUBLESHOOTING WARRANTY INFORMATION TECHNICAL SPECIFICATIONS MODEL : IDC-221SC Power Consumption: 165W Power Supply: 115V/ 60Hz Water Reservoir Capacity: 2.0L Ice Making Current: 1.5A Small - 1/2”...
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WARNING WHEN USING YOUR ICE AND WATER DISPENSER, FOLLOW THESE BASIC PRECAUTIONS: Read all instructions before using the appliance Never clean appliance parts with flammable fluids. The fumes can create a fire hazard. Do not use an exces- sively wet cloth, industrial solvents, and oil-based products to clean this appliance ... -
Page 5: Parts And Control Panel
PARTS AND CONTROL PANEL Ice Bin Access Lid Ice Full Sensor 4.a 4.b 4.c Ice Shovel Water Inlet Port Power Cord Water Reservoir Access Door Ice Reservoir Drain Outlet Water Inlet Supply Water Level Sensor Water Reservoir LCD Display Control Panel Water and Ice Dispenser Outlet Water Drip Tray Air Vent... -
Page 6: Lcd Display Overview
LCD DISPLAY OVERVIEW 5.b 5.c 1. TIMER INDICATOR 5.b WATER INDICATOR Displays remaining time when unit to turn ON or When the water indicator is solid, the unit is pumping OFF. (see Timer Setting Instructions on page 8) water to make ice. If the water level is too low, the indicator will flash and the unit will stop working au- 2. -
Page 7: Space Requirements
INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION OF YOUR ICE MAKER AND WATER DISPENSER This unit should be installed by a licensed plumber only (DIRECT WATER CONNECTION METHOD only) Before connecting the unit to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. - Page 8 INSTALLATION AND OPERATING INSTRUCTIONS ICE MAKING INSTRUCTIONS 1. Turn the unit on by pressing the Power button. 2. Select desired ice size by pressing the ice size selector button (Small or Large). 3. Water will be pumped from the water reservoir to the water tray under the freezing bars. The freezing bars will start freezing.
-
Page 9: Normal Sounds
INSTALLATION AND OPERATING INSTRUCTIONS TIMER SETTING INSTRUCTIONS TIMER DELAY SWITCH ON When the unit is OFF, press the Timer button on the control panel and the time indicator will flash. Set the de- sired time delay ON hours by pressing the Select button. The time increments are 0.5 hour up to 18 hours. The time displayed will change invariably and will decrease by 0.1 Hr. -
Page 10: Care And Maintenance
CARE AND MAINTENANCE CAUTION : Failure to unplug the unit could result in electrical shock or personal injury Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. The maintenance intervals listed are based on normal conditions. ... -
Page 11: Troubleshooting
Use a mild vinegar solution to clean the sensor Conditions for ice making Refrigerant leaks/ sealed sys- Contact Whynter Service Department cycle are right but no ice is tem is blocked made Water pressure is not properly ... -
Page 12: One-Year Limited Warranty
When making a warranty claim, please have the original bill or invoice of purchase with purchase date avail- able. Should your Whynter Ice Maker and Water Dispenser prove defective within one year from the date of pur- chase, return the defective part or unit, freight prepaid (within two months of purchase; after two months to one year, customer will be responsible for freight cost to Whynter’s service department), along with an explanation of...
