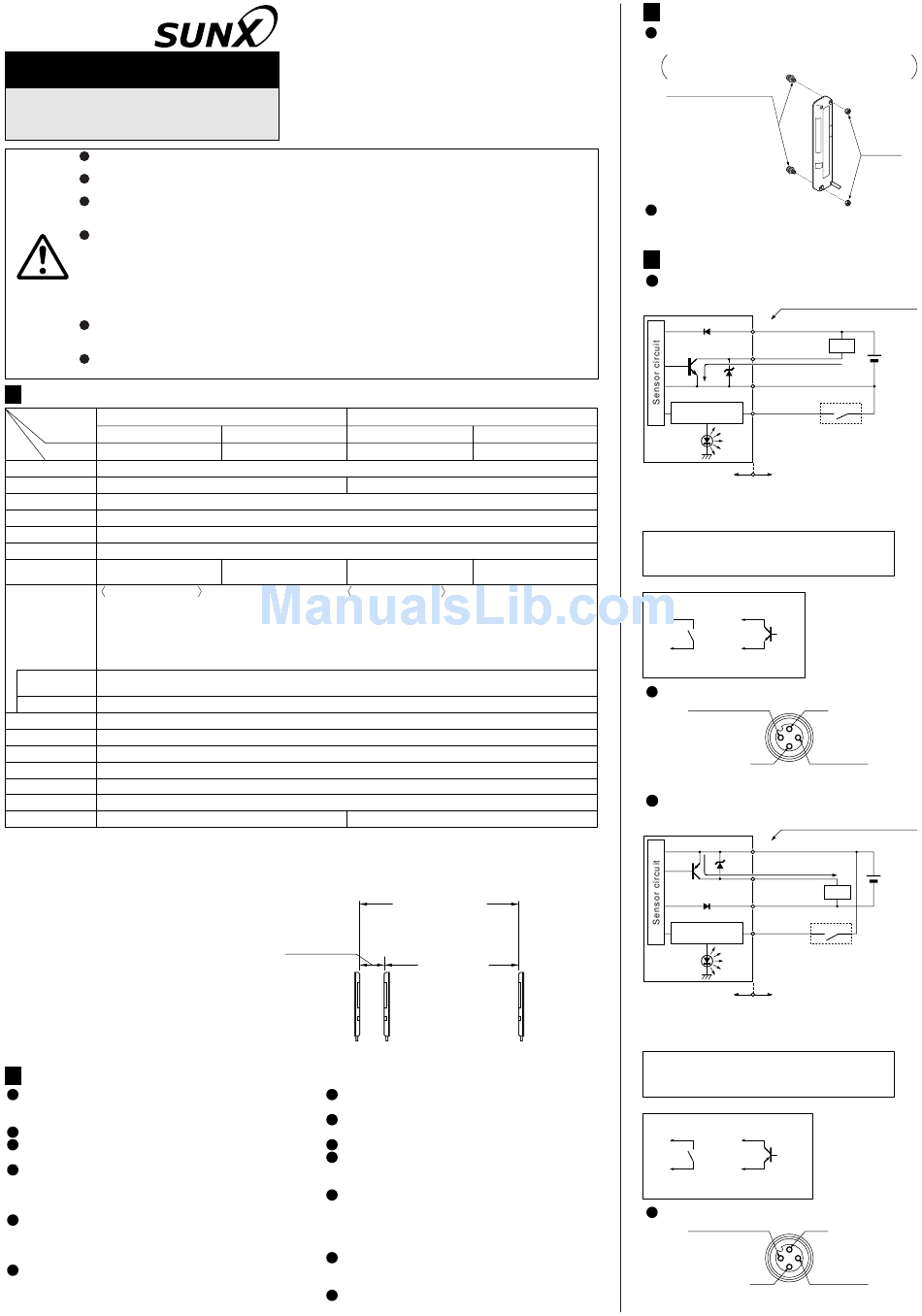

Sunx NA1-5 Instruction Manual

Na1-5 series. ultra-slim body area sensor

Advertisement

Quick Links

INSTRUCTION MANUAL
Ultra-slim Body Area Sensor
NA1-5
Series
If this product is used as a sensing device for personnel protection, serious body injury or
death could result.
Never use this product as a sensing device with any press machine, shearing machine, roll grinding
machine, forming machine, vulcanizer, or robot etc. for protection of a hand or a part of the body.
This product does not include a self-checking circuit for safety functions necessary to allow its use
as a sefety device. Thus, a system failure or malfunction can result in either an energized or a
de-energized output condition.
When this product is used as a sensing device in the following applications and if a problem relating to
'law' or 'product liability' occurs, SUNX shall not be liable for the failure and for the damage or less.
1)
Use of this product installed to a machinery or a device as a sensing device to detect a hand or a
part of the operator's body entering a dangerous area and stop the machinery or the device.
2)
Installation of this product to a protection device for preventing to enter a dangerous area and
WARNING
use of this as a sensing device which detectes a hand or a part of the operator's body and
open/close the door or window.
3)
Use of this product as a sensing device for personnel protection (including interlock).
For sensing devices to be used as safety devices for press machines or for personnel protection,
use products which meet standards, such as OSHA, ANSI or IEC etc., for personnel protection
applicable in each region or country.
In case of using as a safety device for press machine, use a product approved by the Ministry of
Labor in Japan.

SPECIFICATIONS

1
Long sensing range
Type
NPN output type
NA1-5
Item
Model No.(
Note 1)
Sensing height
Sensing range (
0.2 to 3m (0.05 to 1m when set to SHORT)
Note 2)
Beam pitch
Number of beam channels
Sensing object
Supply voltage
Power consumption
Emitter: 0.5W or less
(Note 3)
Receiver: 0.8W or less
NPN output type
NPN open-collector transistor
• Maximum sink current: 100mA
Output
• Applied voltage: 30V DC or less
• Residual voltage: 1V or less (at 100mA sink current)
ON or OFF when one or more beams are interrupted/ON or OFF when two or more beams are interrupted,
Output operation
selectable by operation mode switch
Short-circuit protection
Response time
10ms or less (when the interference prevention function is used, in Light state: 30ms or less, in Dark state: 13ms or less)
Interference prevention function
Ambient temperature
–10 to +55°C (No dew condensation or icing allowed), Storage: –20 to +70°C
Ambient humidity
Emitting element
Material
Enclosure: Heat-resistant ABS, Lens: Acrylic, Indicator cover: Acrylic
Weight
Emitter: 70g approx., Receiver: 80g approx.
Notes: 1)
The model No. with suffix '-C5' is 5m cable length type. (only the long sensing range: NPN output type)
Model No.: NA1-5-C5
The model No. with suffix '-J' is pigtailed type. (cable length: 0.3m)
(e.g.) NA1-5-J
For the cable connected with the pigtailed type, use the connection cable CN-24-C2 (cable length: 2m) (optional)
or CN-24-C5 (cable length: 5m) (optional).
The sensing range gives the mounting distance
2)
between the emitter and the receiver. In case of
NA1-5(-PN), an object can be detected even if
it is 0.2m or less (0.05m or less when set to
SHORT) away, and in case of NA1-PK5(-PN), it
can be detected even if it is 0.1m or less
(0.05m or less when set to SHORT) away.
3)
Obtain the current consumption by the following
equation.
Current consumption=Power consumption
÷Supply voltage
(e.g.) When the supply voltage is 12V, the
current consumption of the NA1-5
emitter is: 0.5W÷12V=0.042A=42mA

CAUTIONS

2
Make sure to carry out the wiring and the
operation of the operation mode switches in
the power supply off condition.
Take care that wrong wiring may damage the sensor.
Verify that the supply voltage variation is
within the rating.
If power is supplied from a commercial
switching regulator, ensure that the frame
ground (F.G.) terminal of the power supply is
connected to an actual ground.
In case noise generating equipment (switching
regulator, inverter motor, etc.) is used in the vicinity
of this sensor, connect the frame ground (F.G.)
terminal of the equipment to an actual ground.
Do not run the wires together with high-
voltage lines or power lines or put them in
the same raceway. This can cause mal-
function due to induction.
Thank you very much for using SUNX products.
Please read this Instruction Manual carefully
and thoroughly for the correct and optimum use
of this product. Kindly keep this manual in a
convenient place for quick reference.
PNP output type
NA1-5-PN
100mm
0.1 to 1.2m (0.05 to 0.5m when set to SHORT)
25mm
5 beam channels
ø35mm or more opaque object
12 to 24V DC±10% Ripple P-P10% or less
Emitter: 0.6W or less
Emitter: 0.5W or less
Receiver: 0.9W or less
Receiver: 0.8W or less
PNP output type
PNP open-collector transistor
• Maximum source current: 100mA
• Applied voltage: 30V DC or less
(between output and 0V)
• Residual voltage: 1V or less (at 100mA source current)
0.4V or less (at 16mA sink current)
Incorporated
Incorporated
35 to 85% RH, Storage: 35 to 85% RH
Infrared LED (synchronized scanning system)
Emitter: 80g approx., Receiver: 85g approx.
Receiver cannot be
placed in this range
.
Emitter
.
Do not use during the initial transient time (0.5
sec.) after the power supply is switched on.
Extension up to total 100m is possible with a
0.3mm
Avoid dust, dirt, and steam.
Take care that the sensor does not come in
direct contact with water, oil, grease, or
organic solvents, such as, thinner, etc.
Take care that the sensor is not directly
exposed to fluorescent light from a rapid-
starter lamp or a high frequency lighting
device, as it may affect the sensing
performance.
The emitter and the receiver must face each
other correctly. If one of them is set upside
down, the sensor does not work.
This sensor is suitable for indoor use only.
High-luminous job indicator
NPN output type
PNP output type
NA1-PK5
NA1-PK5-PN
Emitter: 0.6W or less
Receiver: 0.9W or less
(between output and +V)
0.4V or less (at 16mA source current)
NA1-5(-PN): 3m
Actual sensing range
1m when set to
(
of the sensor
SHORT
NA1-5(-PN):
NA1-PK5(-PN): 1.2m
0.2m (0.05m when set to SHORT)
NA1-PK5(-PN):
0.5m when set to
(
0.1m (0.05m when set to SHORT)
SHORT
Setting range of
the receiver
Receiver
Receiver
2
, or more, cable.

MOUNTING

3
Use M4 screws with washers, and M4 nuts.
The tightening torque should be 0.5N·m or less.
Please arrange the screws and nuts
separately.
M4 screws with washers
Optional
sensor
(MS-NA1-1, MS-NA2-1) are also available.

I/O CIRCUIT DIAGRAMS

4
NPN output type
D
(Brown / 1) +V
(Black / 4) Output
(Note 1)
Tr
Z
D
(Blue / 3) 0V
(Pink / 2) Input
Job indicator
lighting/blinking circuit
(Note 2)
E
Internal circuit
Notes: 1)
The emitter is not incorporated with the output.
Notes: 2)
In order to use the job indicators as large
size operation indicators, connect the input
(pink) and output (black) wires together.
Symbols...
D: Reverse supply polarity protection diode
Z
: Surge absorption zener diode
D
Tr: NPN output transistor
E: Job indicator
*1
Non-contact voltage or NPN open-
collector transistor
or
Low (0 to 2V): lights up or blinks
High (5 to 30V, or open): lights off
Connector-pin position (Pigtailed type)
2
Job indicator input
3
0V
Note: No connection is required for the emitter.
PNP output type
(Brown / 1) +V
Z
Tr
D
(Black / 4) Output
(Note 1)
D
)
(Blue / 3) 0V
(Pink / 2) Input
Job indicator
lighting/blinking circuit
(Note 2)
)
E
Internal circuit
Notes: 1)
The emitter is not incorporated with the output.
Notes: 2)
In order to use the job indicators as large
size operation indicators, connect the input
(pink) and output (black) wires together.
Symbols...
D: Reverse supply polarity protection diode
Z
: Surge absorption zener diode
D
Tr: PNP output transistor
E: Job indicator
*1
Non-contact voltage or PNP open-
collector transistor
or
High (4V or more): lights up or blinks
Low (0 to 0.6V, or open): lights off
Connector-pin position (Pigtailed type)
2
Job indicator input
3
0V
Note: No connection is required for the emitter.
M4 nuts
mounting
brackets
Color code/
Connector pin No. of the pigtailed type
Load
+
12 to 24V DC
100mA max.
±10%
*1
,
Users
circuit
1
+V
4
Output (Note)
Color code/
Connector pin No. of the pigtailed type
100mA max.
+
12 to 24V DC
Load
±10%
*1
,
Users
circuit
1
+V
4
Output (Note)
