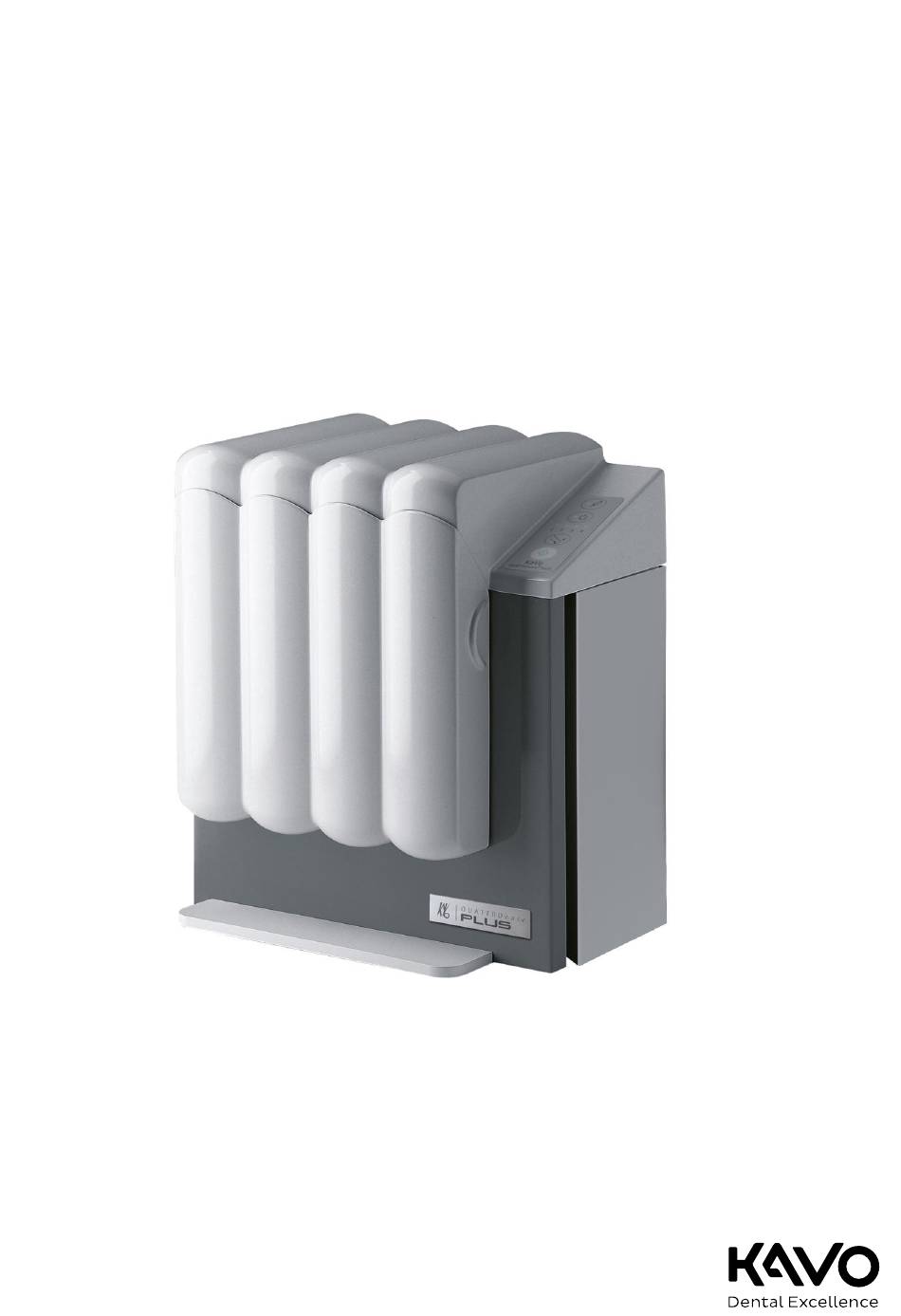

  • Page 1 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805...
  • Page 2 Distributed by: Manufacturer: KaVo Dental Technologies, LLC Kaltenbach & Voigt GmbH 11727 Fruehauf Drive Bismarckring 39 Charlotte, NC 28273 USA D-88400 Biberach Phone: 847 550 6800 www.kavo.com Fax: 847 550 6825...

  • Page 3: Table Of Contents

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 Table of contents Table of contents 1 User instructions ........................ 5 1.1 User guide ........................5 1.1.1 Abbreviations ..................... 5 1.1.2 General marks and symbols................. 5 1.1.3 Target group ...................... 6 1.2 Service .........................
  • Page 4 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 Table of contents 6.2 Safety checks ("STK") ....................31 7 Troubleshooting ......................... 33 8 Tools and consumables ...................... 35 9 Terms and conditions of warranty ..................38 4 / 40...

  • Page 5: User Instructions

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 1 User instructions | 1.1 User guide 1 User instructions 1.1 User guide Requirement Read these instructions prior to first startup to avoid misuse and prevent dam- age. 1.1.1 Abbreviations Explanation...

  • Page 6: Target Group

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 1 User instructions | 1.2 Service DANGER In cases which – if not prevented – directly lead to death or severe in- jury. WARNING In cases which – if not prevented – can lead to death or severe injury.
  • Page 7 Freight Forwarders' Terms and Conditions, Art. 28). Outside of Germany Note KaVo shall not be held liable for damage arising from transportation. The shipment must be checked on arrival. If the packaging is visibly damaged on delivery, please proceed as follows: 1.

  • Page 8: Information On The Packaging: Storage And Transport

    If you have any questions regarding proper disposal of the KaVo product, please contact the KaVo branch. 1.5 Disposal of electronic and electrical devices...
  • Page 9 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 1 User instructions | 1.5 Disposal of electronic and electrical devices In Germany To return an electrical device, you need to proceed as follows: 1. On the homepage www.enretec.de of enretec GmbH, you can download a form for a disposal order under the menu item, eom.

  • Page 10: Safety

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 2 Safety | 2.1 Explosion hazard 2 Safety The instructions for use are a component of the product and must be read care- fully prior to use and be accessible at all times.

  • Page 11: Accessories And Combination With Other Equipment

    ▶ Have a safety check done on the product every 5 years. For this purpose, send the product to the KaVo Customer Service Center Warthausen or a test center approved by KaVo.

  • Page 12: Product Description

    3 Product description 3.1 Intended use Indications for use: The QUATTROcare PLUS 2124 A is designed for maintenance, servicing and re- moval of abrasion products from handpieces and contra-angle handpieces as well as high speed air handpieces used for dental therapy.

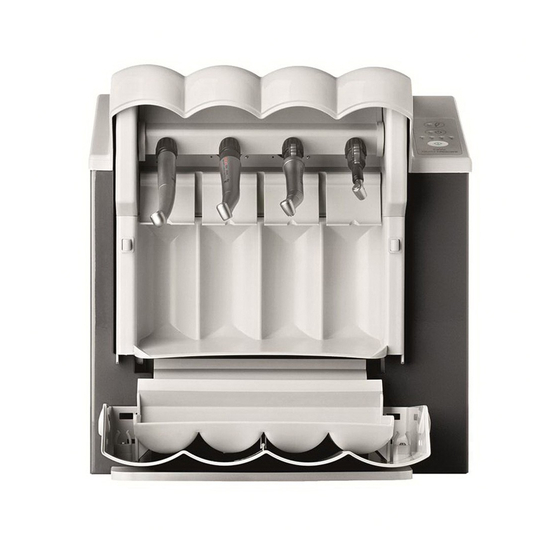

  • Page 13: Quattrocare Plus 2124 A

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 3 Product description | 3.2 QUATTROcare PLUS 2124 A 3.2 QUATTROcare PLUS 2124 A ① 2x INTRAmatic service couplings, short ② 2x MULTIflex service coupling ③ Control panel and display ④ Door of spray can chamber ⑤...

  • Page 14: Symbols On Product And Rating Plate

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 3 Product description | 3.3 Symbols on product and rating plate 3.3 Symbols on product and rating plate The rating plate is attached to the back of the unit. Accompanying documents...

  • Page 15: Scope Of Delivery

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 3 Product description | 3.5 Scope of delivery Electrical supply Supply voltage 100 to 240 VAC Supply frequency 50 or 60 Hz Power consumption 41 VA Overvoltage category Supply voltage fluctuation ±10 %...
  • Page 16 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 3 Product description | 3.5 Scope of delivery ① Chuck service adaptor ② QUATTROcare Plus Spray canister ③ Compressed air coupling ④ Instructions for use ⑤ O-ring MULTIflex (4 pcs) ⑥ O-ring INTRAmatic (3 pcs) ⑦...

  • Page 17: Startup

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 4 Startup | 4.1 Select location 4 Startup 4.1 Select location The QUATTROcare Plus Spray canister contains explosive propellant gases. You therefore need to comply with the following instructions and setup conditions when you set up the unit.

  • Page 18: Connecting The Quattrocare Plus 2124 A

    (on the compressor) or blow-out the lines before connect- ing them. NOTICE Use of power cables other than original KaVo parts. Damage to or malfunction of the product. ▶ Use original KaVo power cables only (for material numbers, see chapter on "Consumables and tools"). 18 / 40...

  • Page 19: Replacing The Quattrocare Plus Spray Can

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 4 Startup | 4.3 Replacing the QUATTROcare Plus Spray can Back of QUATTROcare PLUS 2124 A A T1000 mA fuse ④ is installed in the insert. ▶ Plug the power cable into the electric socket ③.
  • Page 20 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 4 Startup | 4.3 Replacing the QUATTROcare Plus Spray can Note The safety data sheet of the QUATTROcare Plus spray can be viewed at www.kavo.com. ▶ Open the side door of the unit.

  • Page 21: Removing The Spray Canister

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 4 Startup | 4.3 Replacing the QUATTROcare Plus Spray can Note If any oil or gas leaks, you need to use a different spray can. ▶ Swing the spray can and the adaptor back into the device.

  • Page 22: Disposal Of The Spray Canister

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 4 Startup | 4.3 Replacing the QUATTROcare Plus Spray can 4.3.3 Disposal of the spray canister ▶ Dispose of the spray can in empty condition. Note Waste code according to the European waste catalogue: 15 01 04 - metals, packaging, empty.

  • Page 23: Operation

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.1 Control panel 5 Operation 5.1 Control panel ① LED spray can control ② LED control light main switch (on/ off) ③ LED display ④ Start button for chuck service ⑤...

  • Page 24: Mounting Instruments

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.3 Mounting instruments 5.3 Mounting instruments Note Remove the handpieces from the unit as soon as the servicing is completed. Note The LED display shows the following: Adaptor on the far left corresponds to LED display 1.
  • Page 25 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.3 Mounting instruments ▶ Mount straight and contra-angle handpieces on the INTRAmatic service coupling, short, (service coupling on the left in the middle ② or on the far left ①) and lock them into place.

  • Page 26: Starting The Servicing Process

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.4 Starting the servicing process 5.4 Starting the servicing process Note The LED of the spray canister control ① lighting up indicates that the spray can is empty.

  • Page 27: Repositioning The Service Couplings

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.6 Repositioning the service couplings ▶ Pull the high speed air handpiece in the axial direction of the service cou- pling, and take it off. ▶ Press on the latch with a thumb and take the straight or contra-angle hand- piece off by simultaneously pulling in the direction of the axis of the service coupling.

  • Page 28: Chuck Servicing

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.7 Chuck Servicing ▶ Unscrew the union nut clockwise in the direction of the arrow, and take the service coupling off. ▶ Attach the service coupling as selected and fasten it turning the union nut counterclockwise against the direction of the arrow.

  • Page 29: Setting The Blow-Out Time

    The spray is then briefly injected through the chuck, completing the service. Close the chuck service mode: ▪ Place the handpieces in the QUATTROcare PLUS 2124 A, close the front door and start theservice procedure. ▪ Alternatively, after three minutes with no service procedure running, the de- vice automatically switches back to normal service mode.
  • Page 30 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 5 Operation | 5.8 Setting the blow-out time ▶ Hold down the start key ②. ▶ Turn the main switch③ on. ð LEDs 1 to 4 of the LED display① light up one after the other.

  • Page 31: Maintenance

    6.2 Safety checks ("STK") The QUATTROcare PLUS 2124 A must be subjected to a service check including safety check ("STK") every 5 years. The safety check may only be done by a professional trained by KaVo or in a shop trained by KaVo.
  • Page 32 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 6 Maintenance | 6.2 Safety checks ("STK") Perform the safety check ("STK") as described in the KaVo technician's instruc- tions. 32 / 40...

  • Page 33: Troubleshooting

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 7 Troubleshooting 7 Troubleshooting Note Heads of the "22" series cannot be serviced because their necks are too thin. These heads must be serviced together with the corresponding shanks. Malfunction Cause Remedy The red LED ①...
  • Page 34 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 7 Troubleshooting Malfunction Cause Remedy LEDs ② 1 and 3 flash in Fan is blocked or Replace the fan. alternating manner with defective. Notify the KaVo Service LEDs 2 and 4. A signal is Team.

  • Page 35: Tools And Consumables

    Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 8 Tools and consumables 8 Tools and consumables Presentation Material summary Mat. No. Service coupling 1.011.7380 INTRAmatic, short Service coupling 1.009.6142 MULTIflex Service coupling for IN- 0.411.7941 TRA heads includes actuating sleeve Service coupling 1.005.1707...
  • Page 36 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 8 Tools and consumables Presentation Material summary Mat. No. Service coupling 1.000.7585 YOSHIDA High speed air handpiece without light Service coupling 1.008.2083 MIDWEST High Speed Service coupling 1.000.8459 MIDWEST Low Speed Service coupling 1.000.8786...
  • Page 37 Instructions for use QUATTROcare PLUS 2124 A - 1.008.3805 8 Tools and consumables Presentation Material summary Mat. No. Power cable China 1.004.3850 37 / 40...

  • Page 38: Terms And Conditions Of Warranty

    12 months from the date of purchase, subject to the following conditions: Upon justified complaints of flaws or a short delivery, KaVo will make good its warranty by replacing the product free of cost or repairing it according to the customer's wishes.
