Chapter 8 Firmware Upgrades
Upgrade Terminal
Firmware over the Network
Follow these steps to copy firmware files to the terminal over a network using RSLinx Enterprise software and Ethernet
communication.

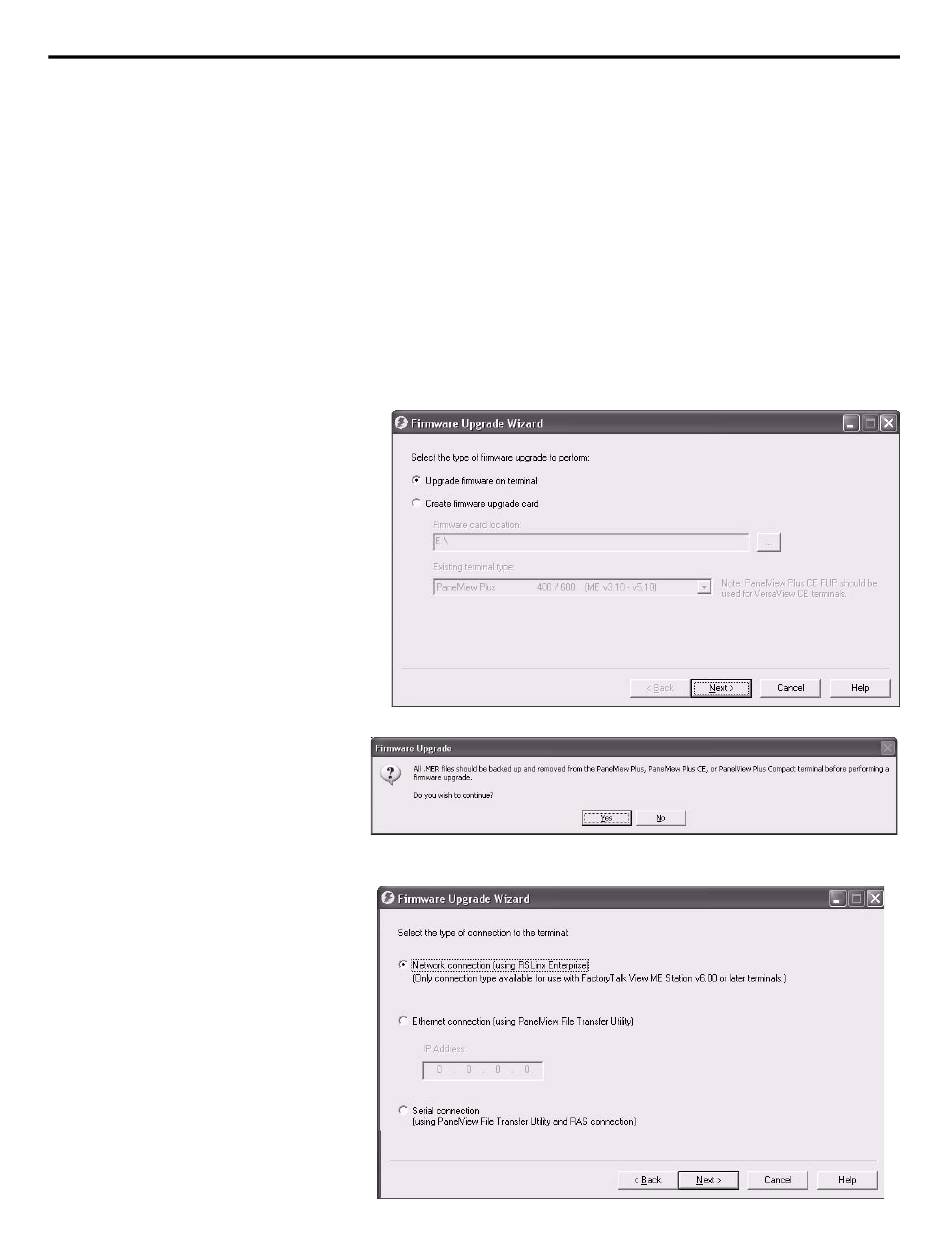

1. Run the Firmware Upgrade Wizard.
• Choose Tools>Firmware Upgrade Wizard in FactoryTalk View Studio.
• Choose Start>Programs>Rockwell
Software>FactoryTalk
View>Tools>ME Firmware Upgrade
Wizard.
2. Select Upgrade firmware on terminal
and click Next.
3. Click Yes to continue.
It is not necessary to back up files
on PanelView Plus 6 terminals.
4. Select Network Connection
(using RSLinx Enterprise) and
click Next.
This is the only valid selection for
PanelView Plus 6 terminals.
138
You can upgrade firmware in a terminal connected to a computer over a direct
network connection. The network connection requires a computer running the
Firmware Upgrade Wizard (FUW) and RSLinx Enterprise software, version 5.0
or later.
RSLinx Enterprise software is required so that you can select the terminal on the
network.
