Chapter 6 Install and Replace Components
Remove the Product ID
Label
Replace the Keypad Legend
Inserts
114
9. Attach the backlight connector to the circuit board.
Refer to step
10. Secure the LCD display.
a. Attach the display bracket then secure the display in the bracket for the
700 series C display.
b. Attach the four screws for all other displays.
Tighten the screws and torque to 0.58 N•m (5...7 lb•in).
11. Replace the display module bezel.
You can remove the label on your terminal and attach your own label.
1. Remove the Allen-Bradley label using your fingers or a tweezers.
2. Clean area with damp cloth and isopropyl alcohol.
3. Remove adhesive backing of OEM label and affix over area where label was
located.

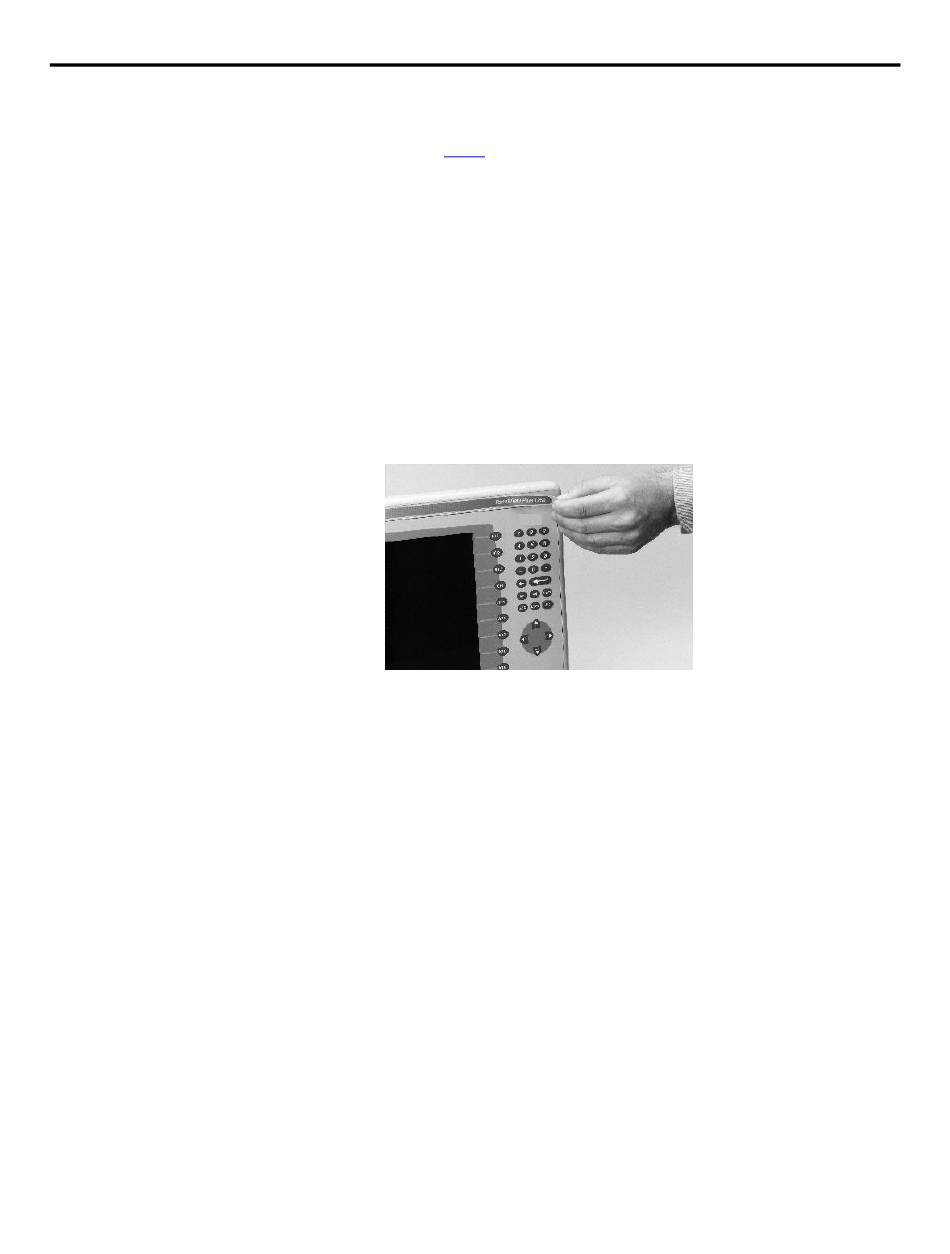

Legend strips are available as separate catalog numbers for keypad terminals. One
side of the legend strips have default key legends; the other side is blank for
creating custom legends.
The F1-Fxx and K1-Kxx legend inserts are accessible when the display module
bezel is removed.
Follow these steps to replace the key legend inserts.
1. Remove power from the terminal.
2. Remove the display module bezel.
Rockwell Automation Publication 2711P-UM006A-EN-P - November 2010
