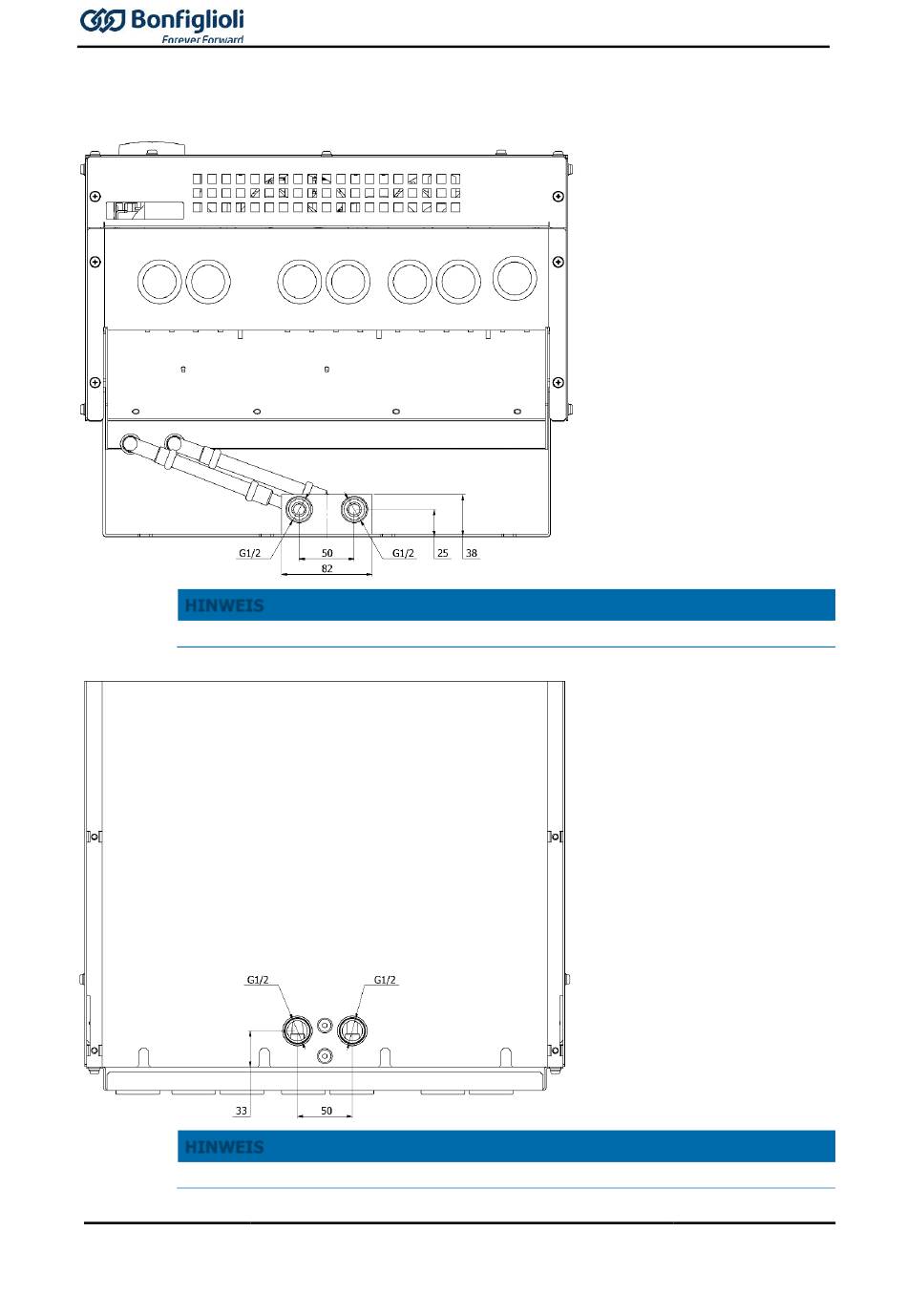

Bottom coolant connection ports on an stainless steel heat sink:
Connection at the bottom
HINWEIS
In this view the fluid entry port is on the left and the exit port on the right.
Connection at the rear
HINWEIS
In this view the fluid entry port is on the right and the exit port on the left.
