5.2
Size 6 (liquid-cooled)

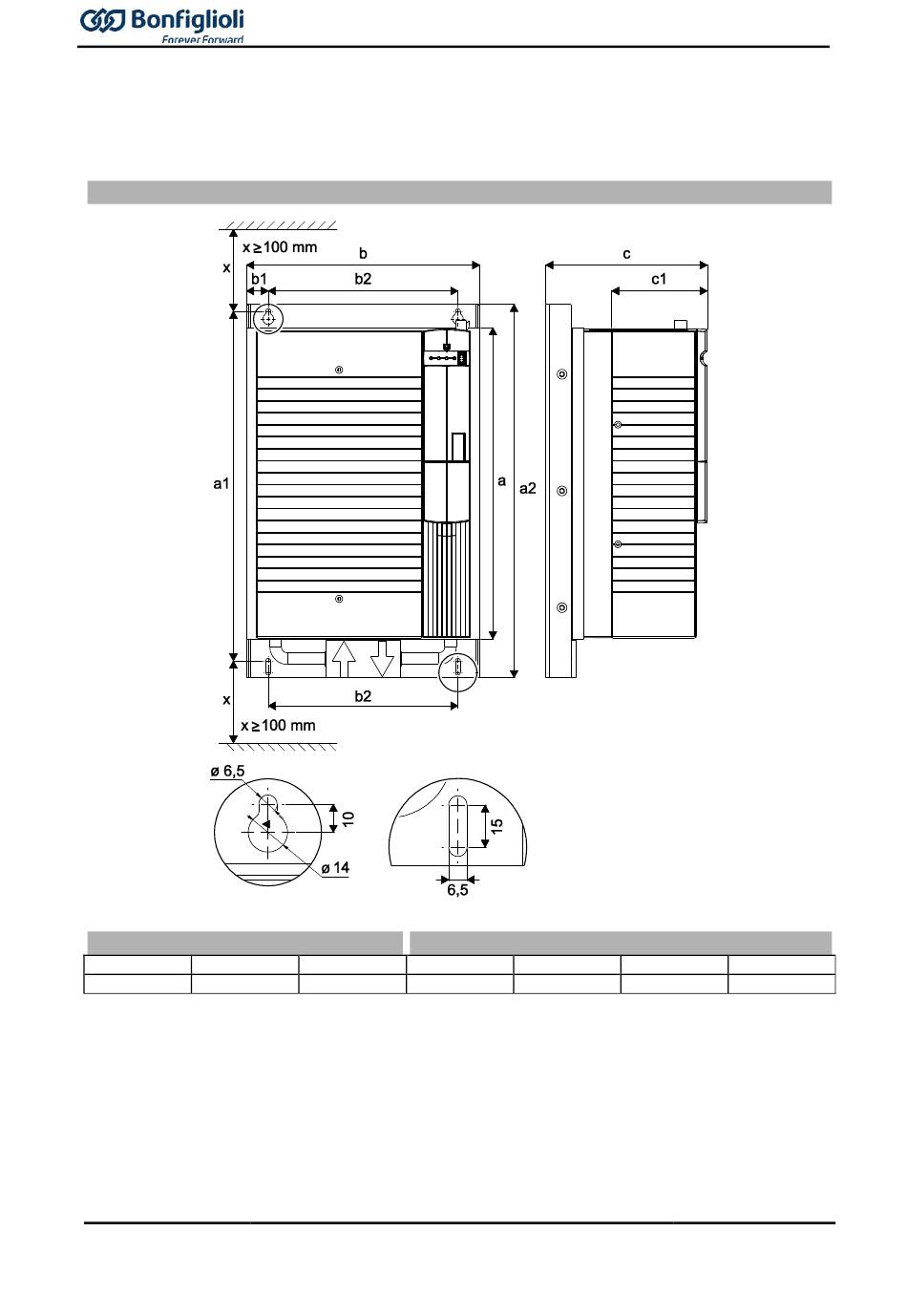

The frequency inverter is mounted in a vertical position on the assembly panel by means of the standard
fittings. The following illustration shows the standard fitting.
Dimensions [mm]
a
b
400
300
Assembly is done by screwing the two fixing brackets to the heat sink of the frequency inverter and the
assembly panel.
The frequency inverters are provided with fixing brackets, which are fitted using four thread-cutting
screws. The dimensions of the device and the installation dimensions are those of the standard device
without optional components and are given in millimeters.
22
Standard installation
Assembly dimensions [mm]
c
a1
208
450 ... 464
Liquid Cooling ACU / ANG /AEC
a2
b1
480
28
c1
123
11/17
