Kobold ZOE-ZB**FB series Operating Manual

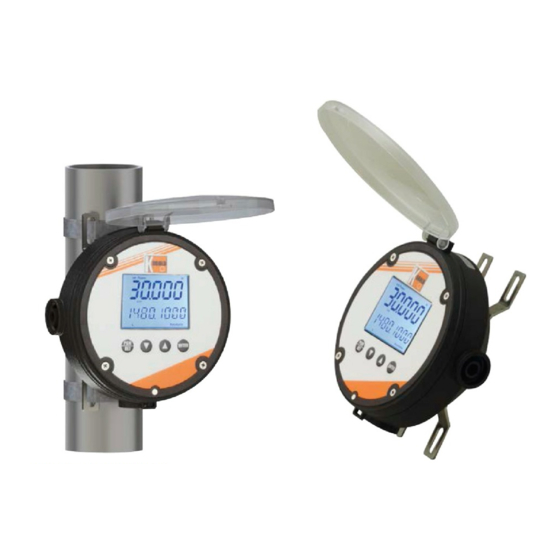

Flow-totalizer 2 inch pipe mounting kit wall mounting kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

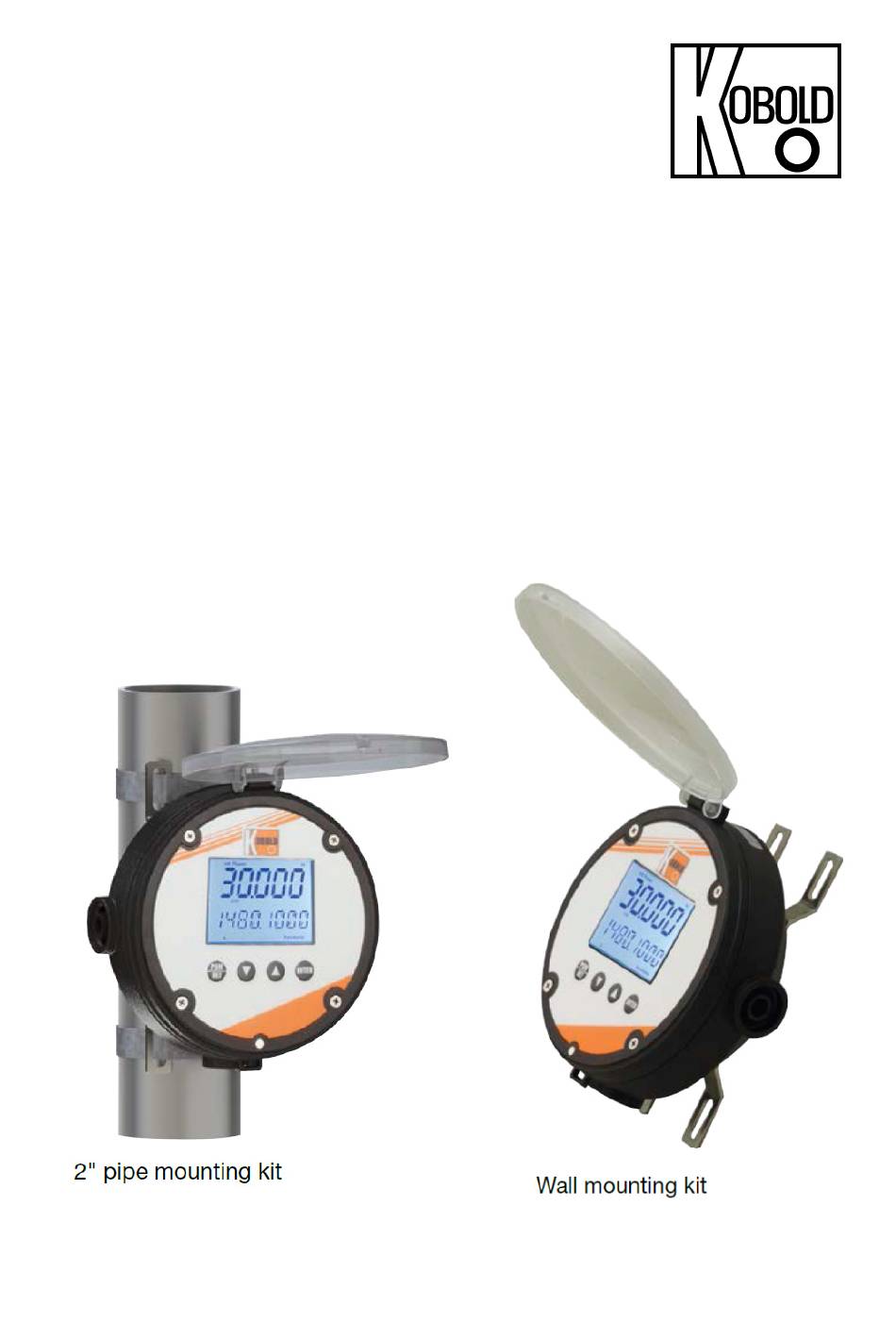

Operating Manual
for
Flow-Totalizer
Model: ZOE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZOE-ZB**FB series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold ZOE-ZB**FB series

Summary of Contents for Kobold ZOE-ZB**FB series

  • Page 1 Operating Manual Flow-Totalizer Model: ZOE...

  • Page 2: Table Of Contents

    Order Details ....................32     Dimensions ....................33     EU Declaration of Conformance ..............34     Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com Page 2 ZOE K04/0718...

  • Page 3: Note

    2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &...

  • Page 4: Instrument Inspection

    3. Instrument Inspection Instruments are inspected before shipping and sent out in perfect condition. Should damage to a device be visible, we recommend a thorough inspection of the delivery packaging. In case of damage, please inform your parcel service / delivery agent immediately, since they are responsible for damages during transit.

  • Page 5: Instrument / Functions Overview

    6. Instrument / Functions overview Function ZOE-ZExxF3 ZOE-ZBxxFB Dual counting function Supply voltage DC-supply Battery operation Sensor supply (only with external supply) Electrical outputs (only with external supply) Pulse output LCD Display Selectable units Decimal point Accumulated totalizer Resettable totalizer Linearization Rate display Backlight...

  • Page 6: Electrical Connections

    7. Electrical connections 7.1 Cable entry for housing option -K Up to 3 cable entries (M20x1.5 or ½ "NPT) are available for electric connection in case of electronics with plastic housing. To use these cable inlets, the existing factory protection caps must be broken with a tool (e.g. screwdriver) and a suitable cable gland should be screwed in.

  • Page 7: Overview Of Terminals Zoe-Zx With Supply Option B And 3

    7.2 Overview of Terminals ZOE-ZX with Supply option B and 3 Service ext Batt Battery 3,6V 2200mAh Size AA Supply option B (only battery- either 1 x 3,6V or 2 x 1,5V) Supply option 3 (with battery- either 1 x 3,6V or 2 x 1,5V and external supply) ZOE K04/0718 Page 7...

  • Page 8: Power Supply

    7.3 Power Supply Depending on functionality and features, the electronics offer different possibilities for power supply:  Options ZOE-ZExxx3xx: Battery and ext. DC-Supply  Options ZOE-ZBxxxBxx Battery operation 7.3.1 Storing the counter readings The storage of meter readings is carried out after each measurement cycle in the internal FRAM.

  • Page 9: Sensor Inputs

    7.4 Sensor Inputs 7.4.1 Active pulse signal Power Supply: External DC-Supply Signal input setting: „ACTIVE SIGNAL“ Wiring for ZOE-ZE with Supply option 3: Wiring for ZOE-Z with Supply option B: Battery 1,5V Size AA Battery 1,5V Size AA ZOE K04/0718 Page 9...
  • Page 10 7.4.2 Hall Sensor, NPN- and PNP-Sensors Power supply: only external DC-supply Signal input setting: „HALL“ Signal input setting: „NPN“ Signal input setting: „PNP“ Wiring for ZOE-ZE: Page 10 ZOE K04/0718...
  • Page 11 7.4.3 Reed switch Signal input setting: „REED “ Wiring for ZOE-ZE with Supply option 3: Wiring for ZOE-Z with Supply option B: ZOE K04/0718 Page 11...
  • Page 12 7.4.4 Self exciting Coil Power supply: External DC-supply and battery operation (Battery operation reduces battery life) Signal input setting: „COIL“ Wiring for ZOE-ZE with Supply option 3: The connection of the DOT (turbine wheel flowmeter) is identical to the connection of the induction coil.
  • Page 13 7.4.5 Namur-Sensor Power supply: only external DC-supply Signal input setting: „NAMUR“ Wiring for ZOE-ZE with Supply option 3: Battery 3,6V 2200mAh Size AA ZOE K04/0718 Page 13...
  • Page 14 7.4.6 Transducer model UMF2 Power supply: only external DC-supply Signal input setting: „NPN“ Wiring for ZOE-ZE with Supply option 3: Battery 3,6V 2200mAh Size AA Page 14 ZOE K04/0718...

  • Page 15: Control Input

    7.4.7 PMG (magnetic inductive with frequency output) Supply Voltage: only external DC power supply Signal input setting: Wiring for ZOE-ZE with Supply option 3: 7.5 Control Input There is one control input available for external controlling of instrument functions. The activation of its function can be done through: a.) an active control input or b.) Carried out by a passive N/O contact.
  • Page 16 Wiring for ZOE-ZE with Supply option 3: Battery 3,6V 2200mAh Size AA Page 16 ZOE K04/0718...

  • Page 17: Pulse Output

    7.6 Pulse Output Pulse output is set to push-pull output type and provides an active digital signal with HIGH amplitude of about + Vs. Wiring for ZOE-ZE with Supply option 3: Service ext Batt Battery 3,6V 2200mAh Size AA ZOE K04/0718 Page 17...

  • Page 18: Operating And Menu Structure

    8. Operating and Menu Structure 8.1 Overall Functions of operating buttons Function Button Symbol Measuring mode Menu mode During the parameter setting, back to main menu / return to Enter Menu mode the measurement mode/jump Menu / Return to the previous decimal To be pressed position while setting for 3-5 sec...

  • Page 19: Menu Mode

    8.2.2 Display layout in measuring mode (ZOE-ZX) 8.3 Menu Mode 8.3.1 General In the menu, all device parameters can be set. The individual parameters are organized into groups according to their function. While the menu mode is turned on, the input signal detection and pulse output are still active in the background. After leaving the menu mode, all display parameters are then updated again in measurement mode.
  • Page 20 8.3.2 Parameter setting Measuring mode Menu mode-Main group Menu mode Parameter selection mode-Sub group To activate the Menu mode, the button must be pressed for 3-5 sec. The parameters are divided into main groups and subgroups. For selection of main groups, buttons are used.

  • Page 21: Instrument Parameters

    8.3.3 Numerical value input While setting parameters with numerical value, the value to be set is always displayed above the parameter. The maximum size and the number of decimal places are fixed and cannot be changed. While setting the numerical value of a parameter, the left outer position starts blinking first indicating the position of the cursor.

  • Page 22: Overview Of Menu Functions/ Instrument Parameters

    9.2 Overview of menu functions/ instrument parameters available Menu Value Default Sublevel Parameter level Description with voltage level range value type 0 - 100 Display LIGHT [Digits] (Step external brightness size 10) 0-30 s Time out of 0 (No LIGHTOUT [Digits] (Step external...
  • Page 23 Number of LIN. PTS [Digits] linearization 0 - 9 Battery,external points Flow rate for K0 [Digits] when LIN. PTS Battery,external set to 0 Scaling factor when LIN. PTS [Digits] Battery,external set to 0 [lmp/USERUNIT] Measurement 1 – 10 M RATE [Digits] Battery,external repetition rate...

  • Page 24: Signal

    9.3 Signal 9.3.1 Signal / Sensor type The pulse input can be optimally customized to different sensor types in Menu, so that at the time of connection no further additional wiring is required for correct function. Menu Parameter Sensor type Internal wiring Hall sensor, Reed switch and all NPN Pull-Up resistor...

  • Page 25: Scaling

    In addition, a jump detector is integrated in the filter function, which monitors whether the current measured value has greatly changed compared to the last filtered measured value. With the parameter "jump threshold", the level of threshold is defined. If this „jump threshold „ is exceeded, the filter function is bypassed depending on parameter „jump factor“, thus achieving a faster response time with respect to rapid changes in flow.
  • Page 26 With active linearization function, the number of linearization points for parameter „linearization points“(in addition to point A0) is set fixed. Depending on the setting of this parameter, the other input parameters are shown in the menu. Input signals above the last point linearization are processed with the pulse rate of the last point. Conditions for the base sequence: The sensor curve must be monotonically increasing, since the frequency values increase continuously with increasing flow.

  • Page 27: Rate

    9.5 Rate 9.5.1 Rate / Measuring rate Parameter "Measuring rate" specifies the time interval within which the input signal is recorded, the flow rate is calculated and brought to display. The condition of all other outputs which depends on the flow rate (analogue output, switching outputs and status output) will be recalculated after the measurement time.

  • Page 28: Counter

    9.6 Counter All electronics have options of a (non-resettable) totalizer and a (resettable) partial totalizer for the connected input. The status of all active counters can be displayed in the "INFOSTAT" menu. 9.6.1 Counter / Volume Unit Parameter "volume unit" defines the unit volume of all volumetric counters. There are listed volume units to choose from.

  • Page 29: Pulse Output (Only With Zoe-Ze Supply Option 3)

    Since some useful information cannot be displayed in this case, it is recommended to use a bigger unit to avoid the loss or to use the smaller display for totalizers. 9.7 Pulse output (only with ZOE-ZE Supply option 3) A scalable pulse output is available for the options ZOE-ZExxxx3xx. When the pulse output is enabled, a scaled pulse output train is given at the output to the input pulses.

  • Page 30: User Service

    If the user's password has been changed from "00000", password request will be generated on next entry to User menu. If the default password has been forgotten or misplaced, the master password can be requested from KOBOLD. 9.8.2 User service / Reset By activating this function, the user can reset the device to factory settings.

  • Page 31: Technical Details

    10. Technical Details External power supply: 5…30 V (without sensor supply) 9…30 V (with sensor supply) power consumption max. 40 mA (only ZOE-ZExxx3) Battery for operation: 1 x 3.6 V lithium size AA or 2 x 1.5 V alcaline cell size AA Battery life: using 3.6 V lithium with 2200 mAh: up to 5 years using 2 x alcaline cells with 2600 mAh each:...

  • Page 32: Order Details

    11. Order Details Example: ZOE-ZE K M F 3 0 0) Electrical Model Electronics Housing Type connection/ Input Power supply Options Special cable gland 0 = universal mount (standard, round ZB = rate totaliser plastic without without external = battery for wall mounting power supply/ operation...

  • Page 33: Dimensions

    12. Dimensions [mm] ZOE-ZXK ZOE-ZXM ZOE K04/0718 Page 33...

  • Page 34: Eu Declaration Of Conformance

    13. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flow-Counter/-- Unit/-- Model: ZOE-ZX to which this declaration relates is in conformity with the standards noted below: EN 61326-1:2013 Electrical equipment for measurement, control and laboratory...

This manual is also suitable for:

Zoe-ze**f3 seriesZoe series
