Sencore MRD 6000 User Manual

4k uhd receiver decoder
Hide thumbs Also See for MRD 6000:
Table of Contents

Advertisement

Quick Links

Download this manual

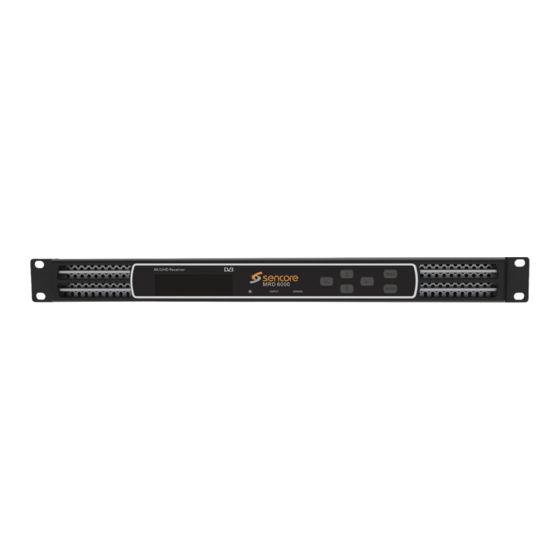

MRD 6000
4K UHD Receiver Decoder
User Manual
November 2018
Form 8187
www.sencore.com | 1.605.978.4600
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRD 6000 and is the answer not in the manual?

Questions and answers

Jennifer
March 27, 2025

How do I clear d 3.3v error on d sencore encoder

0
1 comments:
Mr. Anderson
March 27, 2025

The "3.3V Supply Error" on the Sencore MRD 6000 indicates that the voltage on the 3.3V rail has exceeded the safe operational range. To clear this error:

1. Power Cycle the Device – Turn off the MRD 6000, disconnect it from power, wait a few minutes, and then restart it.
2. Check Power Supply Stability – Ensure the power source is stable and meets the required specifications.
3. Inspect Internal Components – If the issue persists, there may be a hardware fault. Contact Sencore support or a qualified technician for servicing.

If the error continues, the unit may require professional repair.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Sencore MRD 6000

Summary of Contents for Sencore MRD 6000

  • Page 1 MRD 6000 4K UHD Receiver Decoder User Manual November 2018 Form 8187 www.sencore.com | 1.605.978.4600 Revision 1.0...
  • Page 2 Inquiries should be made directly to those companies. This document may also have links to third-party web pages that are beyond the control of Sencore. The presence of such links does not imply that Sencore endorses or recommends the content on those pages. Sencore acknowledges the use of third-party open source software and licenses in some Sencore products.
  • Page 3 MRD 6000 – User Manual Revision History Date Version Description Author MRD 6000 Manual – First Draft 11/06/2018 Page 3 (97)
  • Page 4 • Replacement Parts: When replacement parts are required, be sure the service technician uses replacement parts specified by Sencore, or parts having the same operating characteristics as the original parts. Unauthorized part substitutions made may result in fire, electric shock or other hazards.
  • Page 5 (at the breaker) and send your equipment to be serviced by a qualified technician. • To reduce the risk of shock the MRD 6000 must be connected to a mains socket outlet with a protective earthing connection. •...
  • Page 6 MRD 6000 – User Manual FCC Class A Information The MRD 6000 has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 7 2. AC Power Cable 3. Quick Start Guide Note: If any option cables were ordered with the MRD 6000, they will be included in the box as well. If any of these items were omitted from the packaging of the MRD 6000 please call 1- 800-SENCORE to obtain a replacement.

  • Page 8: Table Of Contents

    Section 3 Operating the Front Panel ............... 17 MRD 6000 Front Panel Overview ................18 Section 4 Operating the Web Interface ............20 MRD 6000 Web Interface Overview ................21 4.1.1 Logging into the MRD 6000 Web Interface ............21 4.1.2 Hiding Unused Inputs ..............21 4.1.3 Buttons and Status Indicators ..............
  • Page 9 – Pinouts for Analog Audio and Relay Connectors ... 89 Appendix D – MRD 6000 Audio Explanation ........... 91 Appendix E – MRD 6000 Discrete Audio Configuration ......94 Appendix F – Open Source Software ............94 Appendix G – Warranty ................96 Appendix H –...

  • Page 10: Section 1 Overview

    MRD 6000 – User Manual Section 1 Overview Introduction This section includes the following topics: Product Introduction ....................11 Front Panel Overview ....................11 Rear Panel Overview ....................12 Cooling ........................12 Rack Information ......................12 Page 10 (97)

  • Page 11: Product Introduction

    Front Panel Overview The MRD 6000 can be controlled from the front panel using the LCD screen and buttons that are shown below. A detailed description of using the front panel can found in Section 0. All hardware listed below comes standard except for the DVB-CI slots which are a factory installed option.

  • Page 12: Rear Panel Overview

    “Error List.” Rack Information The MRD 6000 is intended to be mounted in a standard 19” rack. It occupies 1RU of rack space and the connections are all on the rear of the unit.

  • Page 13: Section 2 Installation

    MRD 6000 – User Manual Section 2 Installation Introduction This section includes the following topics: Rack Installation ......................14 Power Connection ..................... 14 AC Power Connection ....................14 AC Dual Redundant Power Connection (optional) ............ 15 DC Power Connection ....................15 Maintenance ......................

  • Page 14: Rack Installation

    1.3 for grounding location. Power Connection Using the proper power connections is vital to the safe operation of the MRD 6000. Only use the supplied 3-prong power connector or one with equal specifications. – prong grounding pin. This could cause NEVER tamper with or remove the 3 damage to the MRD 6000, personnel, or property.

  • Page 15: Maintenance

    Network Setup via Front Panel The MRD 6000 can be setup on a network connection to allow remote management and SNMP configuration. For these features to work, the network settings for the MRD 6000 must first be configured properly for the network it is connected to.
  • Page 16 “Enabled” then press the button to save the selection. Note: It may take up to a minute for the MRD 6000 to obtain an IP address. During this time the unit will display a “busy” message next to DHCP.

  • Page 17: Section 3 Operating The Front Panel

    MRD 6000 – User Manual Section 3 Operating the Front Panel Introduction This section includes the following topics: MRD 6000 Front Panel Overview ................18 Page 17 (97)

  • Page 18: Mrd 6000 Front Panel Overview

    MRD 6000 – User Manual MRD 6000 Front Panel Overview The MRD 6000 front panel allows the user to configure all settings that are present in the web interface using the buttons located on the front of the unit. The screen below is the idle screen of the MRD 6000.
  • Page 19 MRD 6000 – User Manual Configure Network ↔↕ Host Name: DHCP: Disabled >IP: 000.000.000.000 Mask: 0.0.0.0 1. Screen title. 2. Icons indicate which control buttons are currently valid for entry. 3. Cursor shows which line is active. 4. When editing, active character or item is highlighted.

  • Page 20: Section 4 Operating The Web Interface

    MRD 6000 – User Manual Section 4 Operating the Web Interface Introduction This section includes the following topics: MRD 6000 Web Interface Overview ................21 Main Panel ......................... 22 Admin Panel ......................57 Reporting Panel ......................69 About Panel ....................... 73...

  • Page 21: Mrd 6000 Web Interface Overview

    MRD 6000 Web Interface Overview 4.1.1 Logging into the MRD 6000 Web Interface To open the MRD 6000 web interface use one of the following supported browsers and navigate to the unit’s IP address: • Internet Explorer 7 & above •...

  • Page 22: Drag And Drop Menus

    4.1.4 Drag and Drop Menus Certain menus in the MRD 6000 allow the user to drag and drop items to auto populate fields. Conditional Access and Service Selection menus are some examples of menus that drag and drop can be used. In the example below a service in the transport stream view on the right hand side of the window is selected and dragged over to auto populate the PIDs in the service selection section.

  • Page 23: Configuring Active Inputs

    This menu allows the user to configure a primary and backup input. In case there is an input failover the MRD 6000 is capable of detecting the failed state and switching to a secondary backup input in order to provide a continuous output. Which input is primary and backup, how the inputs switchover and restore and switchover timing is all user configurable.
  • Page 24 MRD 6000 – User Manual Active Input Indicator Active Input and Failover Configuration Menu Setting Range Description Primary Input Used for both normal operation and input failover settings. During normal operation this MPEG/IP Slot X Stream X input will be the active input.

  • Page 25: Configuring Asi Input

    4.2.2 Configuring ASI Input This menu allows the user to either Enable or Disable the ASI Input on the MRD 6000. The ASI ports can be configured as either an input or output. ASI inputs can be configured to enable or disable the null stripped feature. ASI outputs can be configured to pass the selected TS input directly unmodified to the output or apply PID filtering to the output.

  • Page 26: Configuring Mpeg/Ip Input

    Options section. Port Enabled This setting allows the user to enable or disable the ASI Input to the MRD 6000. Disabled Null Stripped Disabled Enabling Null Stripped allows the MRD 6000 to receive streams that do not contain null Enabled packets.
  • Page 27 0 - 65535 This is the UDP port the source device is sending to. This is the only setting required to receive a unicast stream. Enabled Enabling FEC (Forward Error Correction) tells the MRD 6000 to look at Destination Page 27 (97)
  • Page 28 Disabled packets. (i.e. VBR TS Streams) RTP SSRC Enabled Enabling RTP SSRC allows the MRD 6000 to filter the input by the user defined value. Only Disabled streams containing the user defined value will be received by the MRD 6000.

  • Page 29: Configuring Dvb-S/S2/S2X Input

    MRD 6000 – User Manual IP statistics menu 4.2.4 Configuring DVB-S/S2/S2X Input If the DVB-S/S2/S2X input card was selected as a factory installed option, the following menus and options will be available for configuration. This menu allows the user to configure the DVB-S/S2/S2X inputs.
  • Page 30 MRD 6000 – User Manual Connector Port B physical RF connector will be used to receive the stream. Port C Port D C-Band: 4GHz – 8GHz Satellite If LO Offset is set to 0 then L-Band frequency Frequency is entered into the Satellite Frequency dialog Ku Band: 11.2Ghz –...

  • Page 31: Configuring Dvb-S/S2 Input

    MRD 6000 – User Manual 4.2.5 Configuring DVB-S/S2 Input If the DVB-S/S2 Input card was selected as a factory installed option, the following menus and options will be available for configuration. This menu allows the user to configure the DVB-S/S2 inputs. Each DVB-S/S2 input card has four ports (labeled A, B, C and D) which only one port can be active at a time.
  • Page 32 Scrambling. In order to receive the stream, enter the value of the incoming signals PL Scrambling code. LNB Power The MRD 6000 has the ability to provide the necessary voltage to power an LNB. Select 13 VDC the correct voltage to supply to the LNB.

  • Page 33: Configuring 8Vsb/Qam Input

    MRD 6000 – User Manual 4.2.6 Configuring 8VSB/QAM Input If the 8VSB/QAM Input card was selected as a factory installed option, the following menus and options will be available for configuration. This menu allows the user to configure the 8VSB/QAM input. This menu is for setting up the reception of 8VSB off air signals or QAM cable signals.

  • Page 34: Configuring Turbo Psk Input (Currently Not Available)

    Configuring Turbo PSK Input (Currently Not Available) Reception of aTurbo PSK satellite signal requires a special input receiver card option which is not currently available for the MRD 6000. Please contact Sencore for an alternative model receiver/decoder for this application.
  • Page 35 MRD 6000 – User Manual Ireland mode is selected. New Zealand Taiwan South Africa South America United Kingdom European Cable Japan Philippines Channel Select a channel from the channels available in the dropdown. The list of available channels will be based on which channel...

  • Page 36: Configuring Dvb-Ci Descrambling

    4.2.9.1 Configuring DVB-CI Slots This menu allows the user configure the DVB-CI slots in the MRD 6000. The MRD 6000 has two DVB-CI slots, a top and bottom, where CAM Modules can be inserted. Both slots are individually configurable using the Bottom Slot and Top Slot tabs. CAM Modules can be reset manually using the button.

  • Page 37: Configuring Biss Descrambling

    4.2.9.2 Configuring Service Descrambling This menu allows the user to select the services the MRD 6000 will descramble using the CAM Modules and Smart Cards inserted into the DVB-CI slots. See Section 4.2.9.1 to configure these slots. These options are applicable only if the Mode in the DVB-CI settings is set to Selected PIDs or Selected Services (Refer to Section 4.2.9.1).
  • Page 38 MRD 6000 – User Manual 4.2.10.1 Configuring BISS Keys This menu allows the user to configure BISS descrambling. 12 unique BISS keys can be entered. If the BISS mode is set to Mode E a icon will appear next to Mode E Injected ID.
  • Page 39 4.2.10.2 Configuring Per-Service Descrambling This menu allows the user to select the services the MRD 6000 will descramble using the BISS keys configured in Section 4.2.10.1. These options are applicable only if Operation Mode in the BISS settings is set to Descramble Selected Services (Refer to Section 4.2.10.1).

  • Page 40: Configuring Service Selection

    MRD 6000 – User Manual 4.2.11 Configuring Service Selection This menu allows the user to configure the PIDs or Service the MRD 6000 decodes. Depending on the Selection Mode that is selected, the menu changes to reflect the applicable settings.
  • Page 41 Number the MRD will decode only services matching the number specified. Note: S302M Audio Type is auto detected by the MRD 6000 PID Lock Mode In PID Lock mode the MRD decodes only the PIDs specified by the user in the PID Lock Configuration matrix.
  • Page 42 MRD 6000 – User Manual Auto Seek Mode In Auto Seek mode the MRD decodes the first service listed in the PAT. All PIDs in this service are automatically selected for decoding. No other configurations are available in this mode. This mode is recommended to verify the MRD is receiving a valid signal and is able to decode.

  • Page 43: Configuring Video Services

    The menu allows the user to configure the SDI, Digital Video (HDMI), and Composite output formats of the MRD 6000. Please note that the composite video output is only active if the output video format is SD (720x480i, 720x576i). For all other selected formats, there is no output from the composite video BNC jack.

  • Page 44: Configuring Audio

    Transmission and Monitor. These presets can be applied by clicking the button. The menus for Audio 1 through Audio 4 all contain the same settings. Note: The number of audio services decoded by the MRD 6000 and listed may vary with licensing. Setting...

  • Page 45: Configuring Sdi Ports - Sd & Hd Interface

    MRD 6000 – User Manual 4.2.14 Configuring SDI Ports - SD & HD Interface The following menus allow the user to configure the SDI video output from ports 1A & 1B when either an SD or HD, non UHD/4K format, is selected for output. See section 4.2.12 for information on output format selection.

  • Page 46: Configuring Sdi Ports- Uhd -4K Interface

    6000 provide the respectable outputs for the 4K formats when selected. See section 4.2.12 on configuring the SDI output format. SDI Link connections 1A,2,3,4 from the MRD 6000 must appropriately match the quad SDI inputs of the receive/monitor device so the 4K image can be properly processed/rendered.
  • Page 47 4 links to recreate the image. Simultaneous HD-SDI output in 4K Mode The MRD 6000 provides a simultaneous HD-SDI output when you have selected and are outputting a UHD/4K format using Two Sample Interleave. For any of the available...

  • Page 48: Configuring Sdi Audio Embedding

    Interleave mode 4K SDI, port 1A contains ¼ of the image pixels. Port 1B is internally configured by the MRD 6000 to always output a mirror image of the signal on port 1A. Therefore, for all UHD/4K formatted signals with Two Sample Interleave, the Port 1B output is an HD 1080 formatted signal at the 4K frame rate selected.

  • Page 49: Configuring Analog Audio Output

    4.2.17 Configuring Analog Audio Output This menu allows the user to configure the analog output outputs of the MRD 6000. Two analog audio outputs are available. The dBu level of the outputs can be adjusted for each of the four audio outputs. For the Analog Output connector pin out refer to Appendix D.

  • Page 50: Pid Filter

    MRD 6000 – User Manual Setting Range Description Digital Output Assigning a PCM audio to a digital output will output the decoded or downmixed two channel audio using Audio 1-4 PCM Section the settings defined in 0. Assigning Pass- Audio 1-4 Pass-through Through to a digital output will output unprocessed compressed audio.

  • Page 51: Configuring Asi Output

    4.2.20 Configuring ASI Output This menu allows the user to configure the ASI output of the MRD 6000. When enabled this output acts as an active loop output of the active input. For example, if the DVB- S/S2 input card is the current active input the ASI output port will output a demodulated signal of the satellite input.

  • Page 52: Configuring The Mpeg/Ip Outputs

    MRD 6000 – User Manual Setting Range Description Port Enabled Enable or disable the ASI output port. Disabled Source Unmodified Input Unmodified Input will pass the incoming TS to the output without applying any BISS or DVB-CI Descrambled decryption Descrambled and...
  • Page 53 MRD 6000 – User Manual Setting Range Description Transmit Enabled Enable or disable the MPEG/IP transmit group. Disabled Unmodified Input will pass the incoming TS to the Source Unmodified Input output without applying any BISS or DVB-CI Descrambled decryption. Descrambled and...

  • Page 54: Configuring The Mpeg/Ip Mpe Outputs

    MRD 6000 – User Manual range can be used, but it is good practice to always choose a port >1030 and an even number This is the port used by the MRD 6000 to transmit Source Port 0 - 65535 the MPEG/IP stream.
  • Page 55 MRD 6000 – User Manual Setting Range Description Transmit Enabled Enable or disable transmission of de-encapsulated MPE data. Disabled Physical Port 1 The physical connector on the MPEG/IP card that Connector will be used to transmit the MPE data. Port 2...

  • Page 56: Viewing Psip Information

    MRD 6000 – User Manual 4.2.23 Viewing PSIP Information To view the PSIP information for the applied TS, select the View PSI Tables button located on the right hand side of the Inputs section. This will open a new window that displays all of the PSIP information for the applied TS.

  • Page 57: Admin Panel

    MRD 6000 – User Manual Admin Panel To access the Admin Control Panel, click on the tab. This menu allows the user to control many aspects of the MRD 6000. Page 57 (97)

  • Page 58: Changing Unit Password

    4.3.2 Profiles The MRD 6000 has the ability to save all configured settings to multiple profiles. Profiles can be saved locally, renamed and saved to external storage to be used on other MRD 6000s. Profiles can be used to quickly and easily change the configuration of an MRD 6000 to suit different inputs and decoding requirements.

  • Page 59: General Settings

    4.3.3 General Settings The MRD 6000 can be assigned an alias which is displayed in the upper right hand corner of the web interface. The alias can help define which MRD 6000 the operator is currently logged into. The BISS-E Injected ID for BISS Mode E can also be protected from being accidently changed.
  • Page 60 MRD 6000 – User Manual button. IP address and web address entries are accepted as Nameserver addresses. If the MRD 6000 contains a 58127 option card the unit can be configured to have an optional 2 control port. NOTE: Exercise extreme caution when performing changes to this menu as network communication can be lost with the MRD 6000.

  • Page 61: Mpeg/Ip Network Configuration

    This is the Gateway address assigned to the XXX.XXX.XXX.XXX management port. The 2nd management port of the MRD 6000 can be configured from the web interface. To make changes to which port is the 2nd management port click, the configure control ports button under the Unit Network Configuration section.

  • Page 62: Licensing

    100Mbps/Half 10Mbps/Full 10Mbps/Half 4.3.6 Licensing Certain features of the MRD 6000 require licenses in order to be functional. The interface displays all licenses available as well as the following status: • License Locked or Unlocked • License is Supported or Unsupported by the installed hardware If licenses need to be applied to the MRD 6000 click button.

  • Page 63: Date/Time

    4.3.7 Date/Time The MRD 6000 can be set to synchronize with an NTP server or a manual data and time can be defined by the user. Click the button to configure the date and time. These values are used to timestamp entries in the Alarm and Event logs under the Reporting tab.

  • Page 64: Configuring Snmp

    4.3.8.2 SNMP Trap Managers The SNMP trap managers are recipients of SNMP traps sent from the MRD 6000. The following menu allows the user to configure the recipient’s IP addresses. To add and remove recipients of the SNMP traps click the button.

  • Page 65: Syslog

    The MRD 6000 stores the SNMP MIB files for the currently installed version of software on the unit. These files can be downloaded directly from the MRD 6000 by clicking on button. The screen below will appear where the files can be downloaded and saved off of the unit.

  • Page 66: In-Band Control

    The In-Band Control is used to change settings and receive updates from data within a PID in the incoming TS, as injected by the Sencore CMD 4000 In-band Control Server. The following menu allows the user to configure the In-Band Control settings. To configure the In-Band Control settings click the button.

  • Page 67: Updating The Mrd 6000

    4.3.11.2 Rollback Software Updates The MRD 6000 is capable of reverting back to a previous version of software using the Rollback feature. The MRD 6000 maintains two separate software images; one is the most current version of software with all current settings and the other is the previous...

  • Page 68: Reboot Unit

    4.3.12 Reboot Unit The MRD 6000 can be rebooted from the web interface. In order to perform a reboot click the button. The MRD 6000 will prompt the user to confirm the reboot.

  • Page 69: Reporting Panel

    MRD 6000 – User Manual Reporting Panel tab in the MRD 6000 contains logs for active alarms currently affecting the unit and an event log. The active alarms are updated periodically in order to reflect the real-time state of the unit. Once an error is cleared it will be cleared from the active alarms window.

  • Page 70: Event Logs

    Event Log menu. This list displays all of the events and alarms that have affected the unit. The MRD 6000 stores up to four days’ worth of logs. If the unit is rebooted or powered off and on the event logs are cleared.

  • Page 71: Configuring The Logs

    4.4.3 Configuring the Logs The MRD 6000 allows the user to configure alarms and events. Events and alarms can be hidden, set to send SNMP traps or close a relay when active. In order to configure these options click the...
  • Page 72 Relay will not be closed. See D for pinout Relay # This column allows the user to select which of the three relays available on the MRD 6000 will be closed when the alarm is raised. Relay Duration This column is only available in the tab.

  • Page 73: About Panel

    System Recovery The MRD 6000 has the ability to recover from a complete system software corruption. The system recovery allows a user to start the platform into a prompt where a software update will allow the system to be installed in the event all other images will not work.

  • Page 74: Section 5 Appendices

    – Pinouts for Analog Audio and Relay Connectors ... 89 Appendix D – MRD 6000 Audio Explanation ........... 91 Appendix E – MRD 6000 Discrete Audio Configuration ......94 Appendix F – Open Source Software ............94 Appendix G – Warranty ................96 Appendix H –...

  • Page 75: Appendix A - Acronyms And Glossary

    MRD 6000 – User Manual Appendix A – Acronyms and Glossary 8VSB: Vestigial sideband modulation with 8 discrete amplitude levels. 16VSB: Vestigial sideband modulation with 16 discrete amplitude levels. AAC: Advanced Audio Coding AC-3: Also known as Dolby Digital AES: Audio Engineering Society...
  • Page 76 MRD 6000 – User Manual I/O: Input/Output IP: Internet Protocol Kbps: 1000 bit per second LED: Light Emitting Diode LNB: Low-Noise Block MAC: Medium Access Control Main level: A range of allowed picture parameters defined by the MPEG-2 video coding specification with maximum resolution equivalent to ITU-R Recommendation 601.
  • Page 77 MRD 6000 – User Manual RU: Rack Unit RW: Read/Write SD: Standard Definition SDI: Serial Digital Interface SFP: Small Form-Factor Pluggable SI: System Information SMPTE: Society of Motion Pictures and Television Engineers SNMP: Simple Network Management Protocol SPTS: Single Program Transport Stream...

  • Page 78: Appendix B - Error And Event List

    Service that BISS key is assigned to descramble is not present in the incoming stream. Backup Input Active Primary input is currently in a failed condition and the MRD 6000 Condition has failed over to the Backup input. Bitrate Exceeded Error Total incoming transport stream bitrate has exceeded 213 Mbps.
  • Page 79 The MRD 6000 has detected that the transport stream error indicator is present on the active input. Transport Stream Not The MRD 6000 has detected that the transport stream from the Present active input is no longer present. TS Sync Loss Transport stream sync for IP stream is not detected.

  • Page 80: Appendix C - Specifications

    MRD 6000 – User Manual Appendix C - Specifications MRD 6000 – Base Unit Includes – Display, keypad, embedded controller, chassis/case, power supply/line cord System – Display Type: Display Configuration: 240 pixels by 64 pixels Keypad: Snap-dome Membrane Front Panel Lockout:...
  • Page 81 MRD 6000 – User Manual Video Decoding Features General – TS Data Rate: .25-200 Mb/s Video Decoder – Base Unit – Video Profiles and Levels: MPEG-2: to MP@HL, H.264: to HP@L4.2 HEVC : to MP@HT up to L4.1, M10P@HT up to L4.1...
  • Page 82 MRD 6000 – User Manual ≥15 dB, 5Mhz to 1.5GHz Return Loss: Drive Level: 800 mVpp ±10% SD-SDI – 270Mb/s Data Bit Rate: 16x9 – Pillarbox, Center-Cut, Anamorphic Display Modes: 4x3 – Letterbox, Center-Cut, Anamorphic Composite Video Out – Video Format Standards: SMPTE 170M-2004, NTSC, PAL-B/G/I/D/M/N One 75 Ω...
  • Page 83 MRD 6000 – User Manual –20dBFS encoded TS source Output level is adjusted to +4 dBu @ -20 dBFS THD+N: < 0.015% from 20 Hz to 20khz @ +24dBu Dynamic Range: 104 dB Signal to Noise 80 dB Crosstalk: < -80dB from 20Hz to 20kHz Frequency Response: ±0.5dB 20Hz to 20kHz,...
  • Page 84 MRD 6000 – User Manual DVB-CI Descrambling Module Option CAM Decryption – General – Compatibility Standard: DVB-CI EN 50221 Number of CAM Slots: Auto CAM insertion/removal detection: CAM Usage: Selectable, Enable/Disable CAM Name Display: Multicrypt Support: Decryption Selection – Elementary Stream types: Video (MPEG2 &...
  • Page 85 MRD 6000 – User Manual Transmit – Output Format: UDP and RTP .25 – 200 Mb/s Bitrate Range: Packets/IP Frame: 1-7 MPEG Packets/IP Frame 2 Mirrored TS – Unicast and/or Multicast Number of Outputs: IP FEC Output (MRD58925) Adds –...
  • Page 86 MRD 6000 – User Manual 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 Symbol rate: 0.5-60 MSym/s Pilot: On/Off Auto Detect DVB-S2 Advanced (MRD 58916) Adds – Modulation: 16APSK, 32APSK Modulation/Coding: Supported Rates: 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 Symbol Rate: 0.5-60 MSym/s...
  • Page 87 MRD 6000 – User Manual Max TS Bitrate: 160 Mb/s LNB Power and 22 kHz Tone – LNB Power Off/13/14/18/19VDC @ >450mA LNB voltage regulation: ± 4% 22 kHz Tone: Off/On @ 650 mV (± 250 mV) peak-peak DVB-S –...
  • Page 88 MRD 6000 – User Manual Standard: ATSC A/53E Decoding Levels: Nyquist Roll Off (Alpha): 11.5% DVB-T2/C2/ISDB-T Input Module Option General – 42 MHz – 1002 MHz Frequency Range: Number of inputs: Connector: F-Type, Female Impedance: 75 Ohms Sensitivity: -34dBmV to + 40dBmV (A74 Compliant)

  • Page 89: Appendix D - Pinouts For Analog Audio And Relay Connectors

    MRD 6000 – User Manual Appendix D – Pinouts for Analog Audio and Relay Connectors AUD 1-2 AUD 3-4 RELAY (DB-15) ANALOG AUDIO 1-2 (DB-15) ANALOG AUDIO 3-4 CHANNEL FUNCTION CHANNEL FUNCTION Channel 1 Left Channel 3 Left Channel 1...
  • Page 90 MRD 6000 – User Manual DB-15 Connector (DB-9) RELAY PINOUT (Male) Pin #’s PIN RELAY FUNCTION Relay 1 Normally Open Relay 1 Normally Closed Relay 2 Common Relay 3 Normally Open Relay 3 Normally Closed Relay 1 Common Relay 2...

  • Page 91: Appendix E - Mrd 6000 Audio Explanation

    Appendix E – MRD 6000 Audio Explanation Downmix Audio Setup There are two primary modes of audio down mix operation for the MRD 6000 receiver/decoders. These settings only affect the signal if the digital output is set to PCM. It will also affect those embedded audio channels that are set to a PCM down mix.
  • Page 92 MRD 6000 – User Manual Audio Output Settings The digital audio services may be set to PCM (AES) or Pass-through (AES data) as an output. This applies to all available sources. The PCM setting will decode and automatically down mix an AC-3 or Dolby Digital Plus stream to two channels of AES audio.
  • Page 93 MRD 6000 – User Manual Mono Dual left OUT L = OUT R = IN Mono Dual right OUT L = OUT R = IN Lo/Ro OUT L = L + C + Ls OUT R = R + C + Rs (per ATSC A52) OUT L = L + C –...

  • Page 94: Appendix F - Mrd 6000 Discrete Audio Configuration

    MRD 6000 – User Manual Appendix F – MRD 6000 Discrete Audio Configuration The MRD 6000 currently does not offer a Discrete Audio mix option or license. This option is available on other Sencore receiver/decoders models and differs from a normal downmix in tht is simply decodes selected audio channels rather than mixing multiple channels into 2 channels.
  • Page 95 MRD 6000 – User Manual OpenSSL 1.0.1c BSD-Like 1998-2008 The OpenSSL Project, 1995-1998 John Levon, Philippe Elie, OProfile 0.9.7 GPL Version 2, June 1991 et. al PCRE 8.00 1997-2009 University of Cambridge, 2007-2008 POPT 1.14 1998 Red Hat Software qDecoder 12.0.2...

  • Page 96: Appendix H - Warranty

    Appendix I – Support and Contact Information Returning Products for Service or Calibration The MRD 6000 is a delicate piece of equipment and needs to be serviced and repaired by Sencore. Periodically it is necessary to return a product for repair or calibration. In order to expedite this process please carefully read the instructions below.
  • Page 97 Sencore Inc. 3200 Sencore Drive Sioux Falls, SD 57107 USA www.sencore.com Copyright © 2018 Sencore Inc. 1.605.978.4600...
