Sencore MRD 7000 Quick Start Manual

MRD 7000 Quick Start Introduction
This instruction set is meant to help Sencore customers get the MRD 7000 up and running as fast as
possible. If technical support is still required please email

Required Equipment and Materials:

 MRD 7000 Chassis
 Laptop or Computer with Chrome web-browser installed
 Network Switch
 (2) Ethernet cables
 VGA Monitor
 USB Keyboard

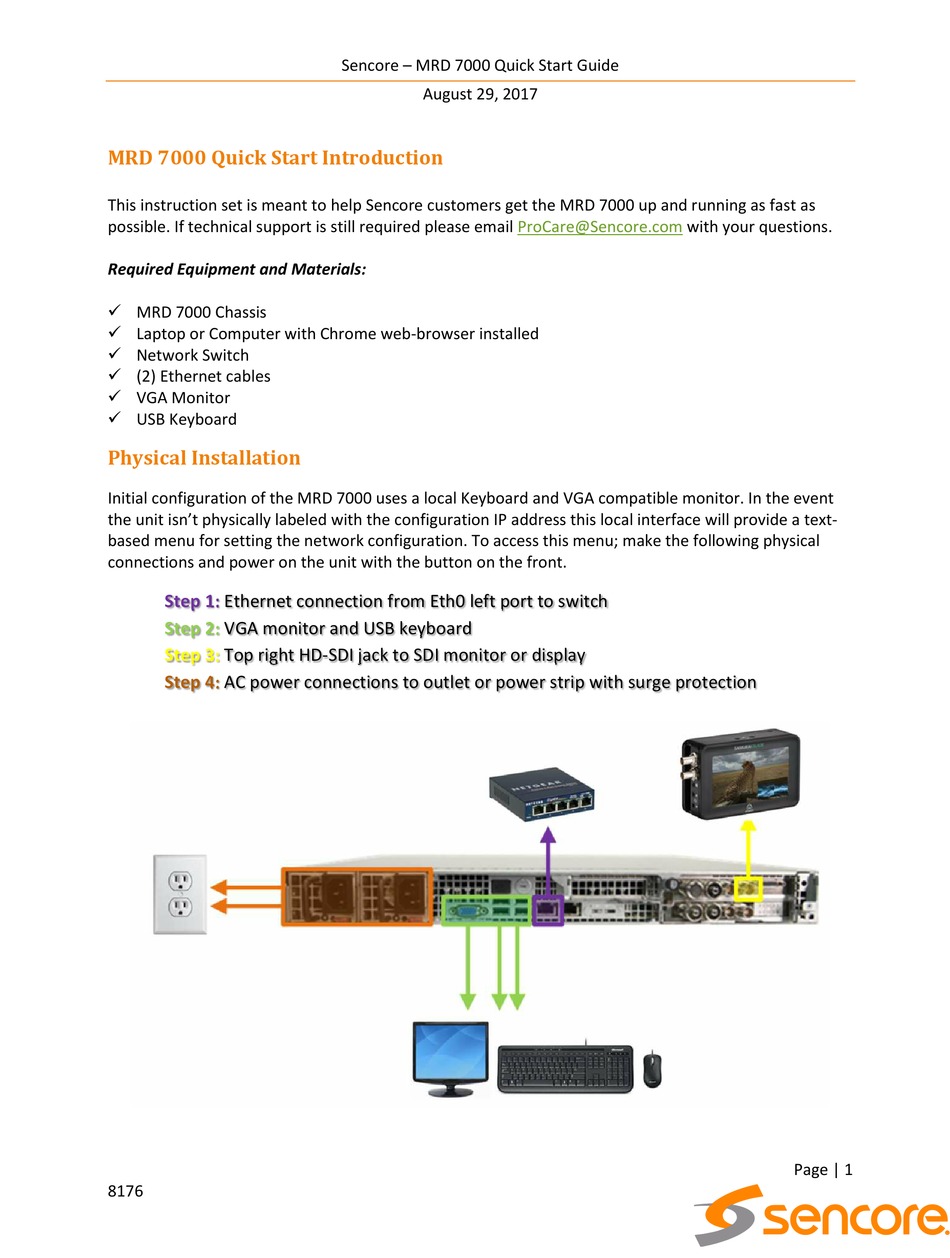

Physical Installation

Initial configuration of the MRD 7000 uses a local Keyboard and VGA compatible monitor. In the event
the unit isn't physically labeled with the configuration IP address this local interface will provide a text-
based menu for setting the network configuration. To access this menu; make the following physical
connections and power on the unit with the button on the front.
Step 1: Ethernet connection from Eth0 left port to switch
Step 2: VGA monitor and USB keyboard
Step 3: Top right HD-SDI jack to SDI monitor or display
Step 4: AC power connections to outlet or power strip with surge protection
8176
Sencore – MRD 7000 Quick Start Guide
August 29, 2017
ProCare@Sencore.com with your questions.
Page | 1
