Summary of Contents for V-ZUG DKS5i

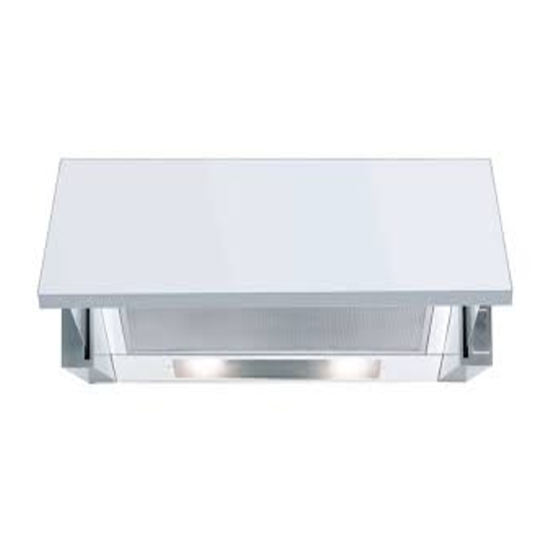

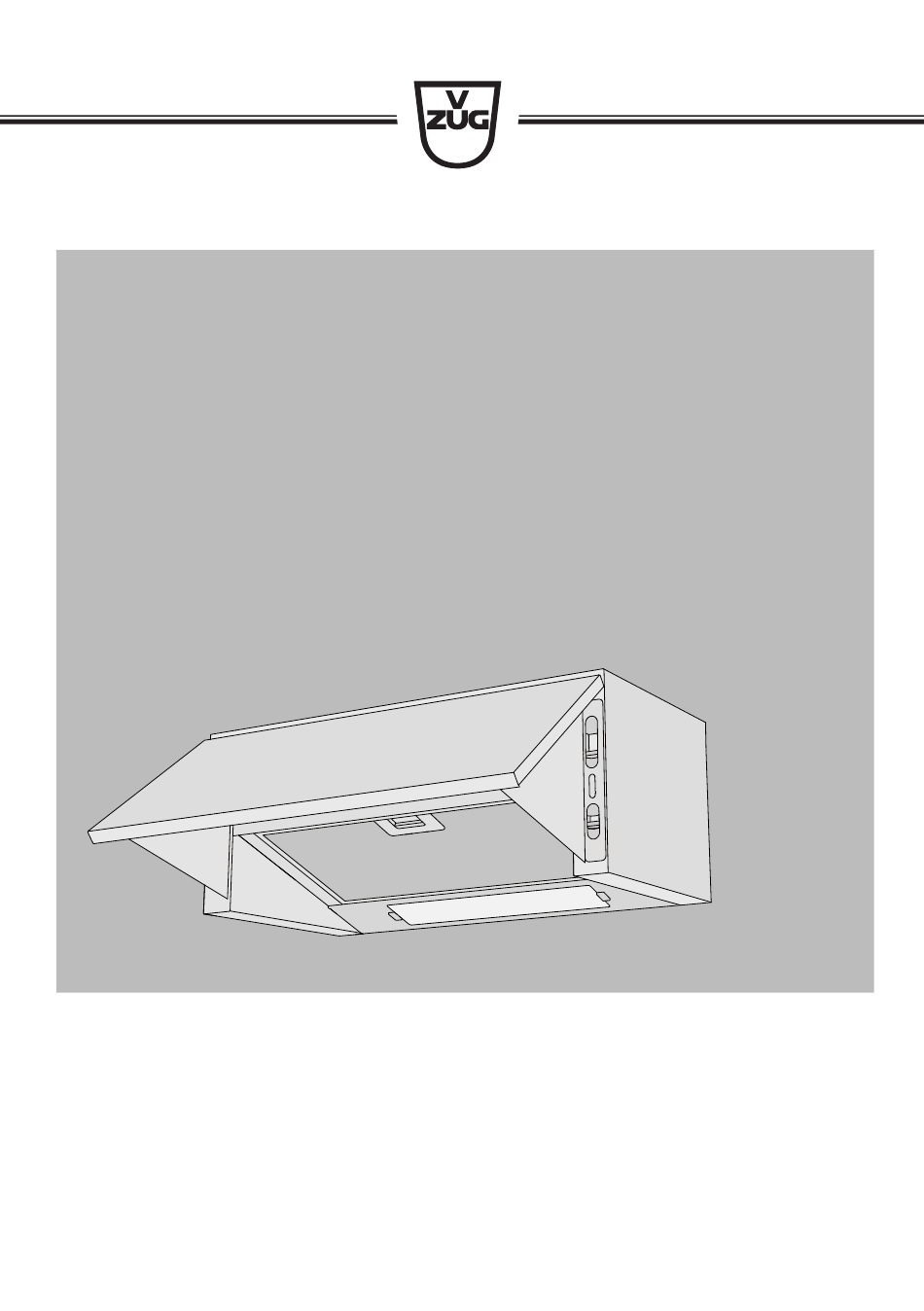

- Page 1 Operating instructions DKS5i/DKS6i Range hood...
- Page 2 The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DKS5i 61005 DKS6i 61006 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2016...
-
Page 3: Table Of Contents
Contents 1 Safety precautions 4 Symbols used ...................... 4 General safety precautions ................. 5 Before using for the first time ................ 5 Correct use...................... 6 Children in the home.................... 6 Note on use ...................... 7 2 Disposal 9 3 Your appliance 10 Appliance description .................. 10 Extraction model .................... 10... -
Page 4: Safety Precautions
Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸... -
Page 5: General Safety Precautions
1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved. -
Page 6: Correct Use
1 Safety precautions Correct use ▪ The appliance is designed for use in the home for extracting cooking odours from above a cooking area. ▪ Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, may only be carried out by the manufacturer, its Cus- tomer Services or a similarly qualified person. -
Page 7: Note On Use
1 Safety precautions Note on use ▪ If the appliance is visibly damaged, do not use it. Contact our Customer Services. ▪ If the appliance is not functioning properly, disconnect it from the power supply immediately. ▪ If the mains cable of the appliance is damaged, it must be replaced by Cus- tomer Services in order to avoid hazard. - Page 8 1 Safety precautions ▪ When carrying out maintenance work on the appliance, including replacing the light bulb, cut off the electricity supply to the appliance: remove the screw fuse from the holder or switch the circuit breaker off, or disconnect from the mains supply.
-
Page 9: Disposal
Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection ▪ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety ▪... -
Page 10: Your Appliance
Your appliance Appliance description The appliance is for ventilating a cooking area and is typically built into the wall unit. This particular model can be used in the extraction mode as well as in the recirculation mode. Extraction model The integrated fan extracts cooking fumes and smells from above the cooking surface. -
Page 11: Construction
3 Your appliance Construction Hood flap Grease filter with stable metal frame Illumination Operating elements Power level switch Illumination switch... -
Page 12: Operating The Appliance
Operating the appliance Switching the extractor fan on ▸ Swing the hood flap out. – The extractor fan switches on. Setting the power level ▸ Use the power level switch to set the desired power level. Switching the illumination on/off ▸... -
Page 13: Care And Maintenance
Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If wa- ter gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they can damage the surface. -
Page 14: Removing The Grease Filter
5 Care and maintenance Removing the grease filter ▸ Swing the hood flap out and switch the appliance off. ▸ Push the grip 5 on the grease filter 4 back. – This releases the grease filter. ▸ Remove the grease filter from the fixture. -
Page 15: Trouble-Shooting
Trouble-shooting What to do if ... … the illumination is not working Possible cause Solution ▪ Fuse or automatic circuit breaker ▸ Change the fuse. for electrical installations in the ▸ Reset the automatic circuit breaker. home is defective. ▪ An interruption in the mains power ▸... -
Page 16: Accessories And Spare Parts
Accessories and spare parts Please give model number of the appliance and exact description of the ac- cessory or spare part when ordering parts. Halogene light bulb (230 V / 28 W) LED light bulb (230 V / 3 W) Grease filter The light bulb is also available from specialist retailers. -
Page 17: Technical Data
Technical data Electrical connection ▸ See identification plate. ▸ Remove the metal grease filters. – The identification plate is located on the inside of the appliance. -
Page 18: Index
Index Care..............13 Validity............... 2 Children in the home........6 Cleaning Housing .......... 13 Disconnection..........9 Disposal............9 Electrical connection ........17 Extraction model ........... 10 Identification plate......... 17 Model number ..........2 Operating elements ........11 Packaging ............9 Product family.......... -
Page 19: Service & Support
Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our progress- ive service agreements. - Page 20 To switch the illumination on/off ▸ Set the illumination switch to on or off. J61005013-R02 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
