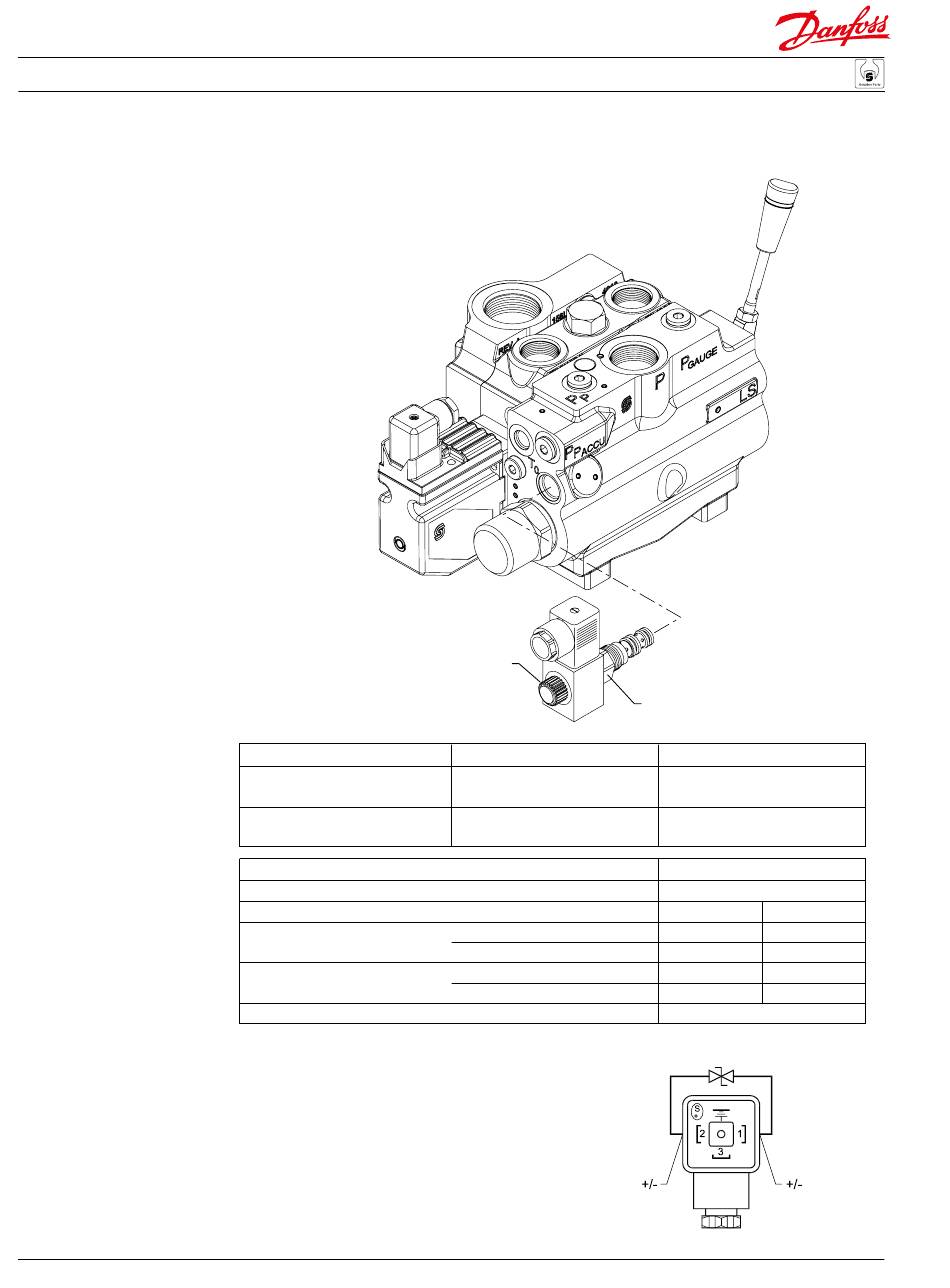

Service and Parts Manual
Installation
Installation and technical
data for pvpp (solenoid
operated pilot drain)
PVPP connection
10
PVG 100 Proportional Valves
Position
1
2
Max. operation pressure
Max. coil surface temperature
Rated voltage
Current consumtion
Power consumtion
Max. permissible deviation from rated supply voltage
When installing the wire remember to
connect the built-in diode to the plug
pins.
520L0888 • Rev BB • Feb 2015
2
(coil nut)
(cartridge valve)
Across flats
24 mm
[0.94 in]
20 mm
[0.79 in]
22°C (71,6°F) coil temperature
110°C (230°F) coil temperature
22°C (71,6°F) coil temperature
110°C (230°F) coil temperature
1
Max. tightening torque
45 Nm
[400 lbf·in]
5 Nm
[44 lbf·in]
350 bar [5076 bar]
155°C [311°F]
12 V –– __
24 V –– __
1.55 A
0.78 A
1.00 A
0.50 A
19 W
19 W
12 W
12 W
±10%
P106 004E
