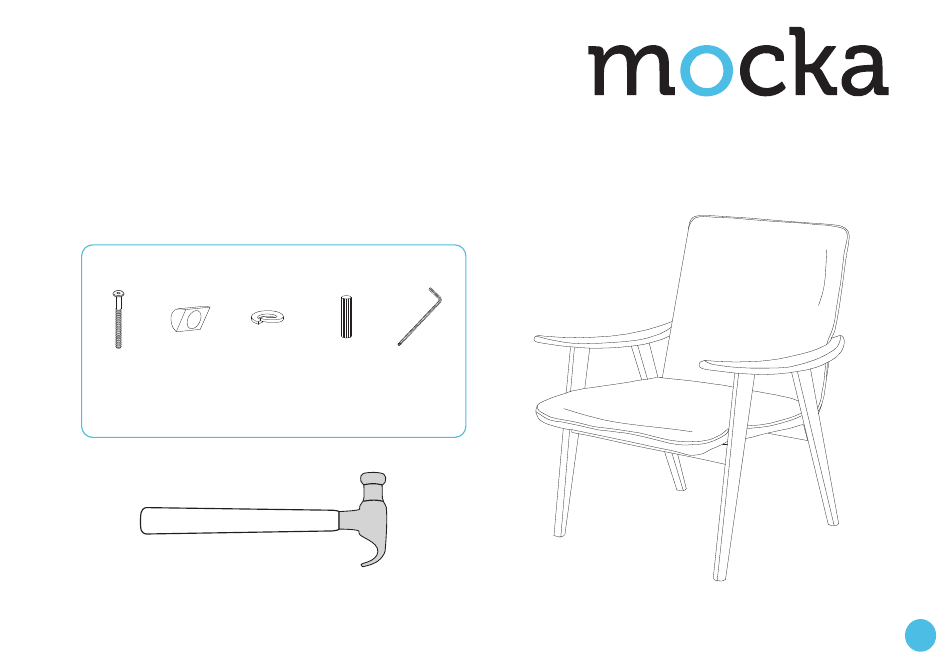

Kai Armchair
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
D
E
A
B
screw
screw
spring
allen
dowel
x4
washer x4
key x1
pin x4
x8

Hardware Supplied

Hammer required
1
mocka.co.nz | mocka.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kai Armchair and is the answer not in the manual?

Questions and answers

Summary of Contents for Mocka Kai Armchair

  • Page 1 Kai Armchair Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. screw screw spring allen dowel washer x4 key x1 pin x4 Hardware Supplied Hammer required mocka.co.nz | mocka.com.au...
  • Page 2 Kai Armchair Assembly Instructions left right Insert 4x dowels (D) into the underside of the chair seat [1]. Attach the left and right chair legs [2] to the chair seat [1] using 4x screw pins (B), 4x spring washers (C) and 4x screws (A) as shown. Tighten with the allen key (E).
