Summary of Contents for Delta SOLIVIA 2.5 AP G3 TR

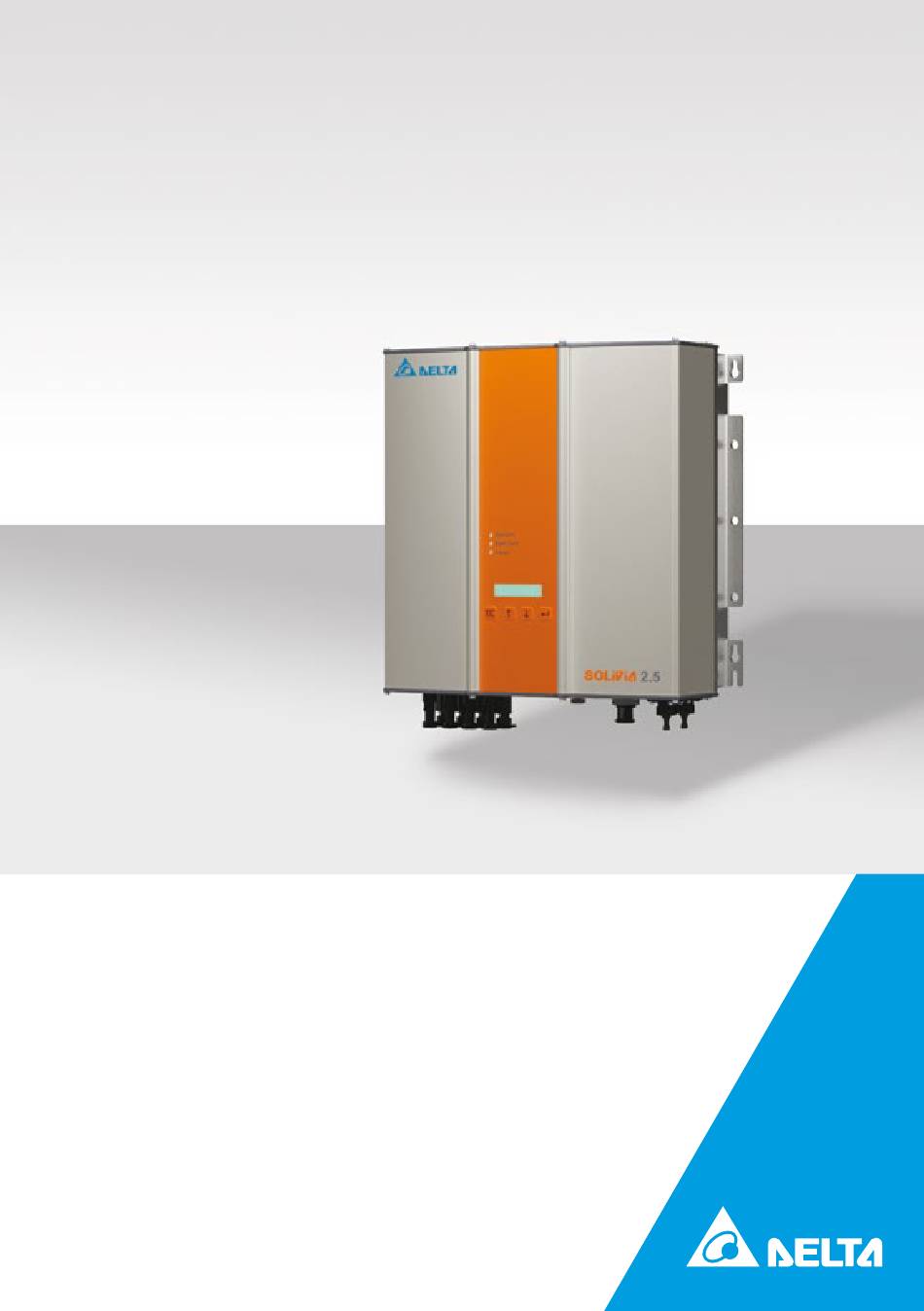

  • Page 1 SOLIVIA 2.5 AP G3 TR Operation and installation manual...
  • Page 3 The technical instructions and illustrations contained in this manual are to be treated as confidential and no part may be reproduced without the prior written permission of Delta Energy Systems Service engineers and end users may not divulge the information con- tained herein or use this manual for purposes other than those strictly connected with correct use of the equipment.
  • Page 4 Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 5: Table Of Contents

    8.3.7.3 Submenu S: Firmware ....... . 31 Operation and installation manual SOLIVIA 2.5 AP G3 TR...
  • Page 6 13. Certificates .........43 Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 7: About This Manual

    Purpose of this manual This manual is part of the product and is only valid for the SOLIVIA 2.5 AP G3 TR. Store the manual in a safe place. Read the manual carefully and thoroughly and follow the instructions contained therein.

  • Page 8: Intended Use

    The installation and commissioning work may be performed only by qualified elec- tricians. ● The solar inverter can be operated safely and normally only if it is installed and operated in accordance with this manual (see IEC 62109-5.3.3). Delta Energy Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 9: Scope Of Delivery

    ● The solar inverter contains no components that are to be maintained or repaired by the operator or installer. All repairs must be performed by Delta. ● Observe all points in this installation and operation manual! ●...

  • Page 10: Data Evaluation And Communication

    Operator protection requirements are met by electrically isolating the grid from the PV module. The electrical isolation between the grid and the PV module is equivalent to basic insulation. Maximum operator protection is ensured by reinforced isolation Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 11: Equipment Overview

    ≤ 4.6 kVA, with single-phase parallel feed-in through the solar inverter into the grid. Equipment overview Connections for PV modules Grid connection Interface connection RS485 (EIA485) Display for status messages and keypad for operation Light-emitting diodes for operational status display Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 12: Installation

    According to the Australian / New Zealand Standard AS/NZS 5033:2005 (§ 3.1), PV arrays for installation on domestic dwellings in Australia or New Zealand shall not have maximum voltages greater than 600 V. Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 13: Minimum Requirements

    As the solar inverter weighs 21.5 kg, it should be lifted out of the transport crate by at least two persons. Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 14: Ambient Temperature

    An automatic circuit breaker is to be provided in the line L upstream of every device, with a nominal current of 25 A and tripping characteristic type B or C (please refer to Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 15: Connection Of Pv Modules

    Deltas solar inverters are factory-set to ISO-ON-Warning mode on delivery. The grounding monitoring has two modes: ● PV+ grounding (grounding monitoring of the positive pole of the PV generator) Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 16: Output Power Over Pv Voltage

    Output power over PV voltage 3700 W 3500 W 3300 W 3100 W 2900 W 2700 W 2500 W 200 VDC 250 VDC 350 VDC 400 VDC 450 VDC 150 VDC 300 VDC Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 17: Output Power Over Ac Voltage

    800 W 1600 W 2400 W 400 W 1200 W 2000 W 2500 W @ 150 V 2500 W @ 250 V 2500 W @ 450 V 2500 W @ 350 V Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 18: Interface Connection Rs485 (Eia485)

    230 V - House connection line RS485 (EIA485) - Connection Datalogger Connector pin assignment RS485 (EIA485) Reserved Reserved Reserved GND (RS485) Reserved RX_B (RS485) TX_A (RS485) Reserved Top View Operation and installation manual SOLIVIA 2.5 AP G3 TR...
  • Page 19 RX_B Ohm, 0,25W Pin 6 Reserved Anti-islanding Power controller Communication protection Operating- and system control String A Public MPP- Isolation grid Tracker String B Booster String C String D Solar inverter Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 20: Electrical Connection And Operational Start-Up

    In case of a new installation the time and date have to be set in sub-menu S (Setup) (see „8.3.7 Submenu S (Setup)“, page 28). nOTE To ensure protection conforming to IP65 all unused connections and interfaces must be closed using the provided sealing plugs. Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 21: Setup / Settings

    1) In certain states in Australia, power limitation is required. ● With power limitation, the output (AC) power of SOLIVIA 2.5 AP G3 TR will be as followed : Power limitation setting AU PL -> Max. power: 2490 W ●...
  • Page 22 Then, you will be asked to insert the PIN code and to confirm it twice. After confirmation, you will then be able to select the desired country. nOTE These steps must be executed without interruption. Otherwise, you will stay in the country selection mode. Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 23: Led Operation And Fault Display

    The display on the device indicates varied information. The enter keys are used for the adjustment of the device and for the retrieval of information. The indicated data can deviate with a tolerance of up to 5 %. Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 24: Navigation In The Display

    You can scroll the main menu by activating the selector keys Press the ENTER key to select the submenus. In order to exit the menus again, acti- vate the ESC key. Operation and installation manual SOLIVIA 2.5 AP G3 TR...
  • Page 25 Submenu T - Total ENTER Down Menu S - Setup inverter Submenu S - Setup ENTER Down to 2 Remarks: ESC in main menu jumps to first entry of corresponding sub menu Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 26: Submenu N (Now)

    Down N -> Date Display of current day (WD.DD.MM.YYYY) of the week and date Down to 2 Remarks: ESC in main menu N jumps to first entry of sub menu N Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 27: Submenu D (Day)

    Display of the daily operating D -> Runtime Value (Min) time of the solar inverter Down to 2 Remarks: ESC in main menu D jumps to first entry of sub menu D Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 28: Submenu W (Week)

    Display of the annual operating Y -> Runtime Value (h) time of the solar inverter Down to 2 Remarks: ESC in main menu Y jumps to first entry of sub menu Y Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 29: Submenu T (Total)

    Display of the total operating T -> Runtime Value (Min) time of the solar inverter Down to 2 Remarks: ESC in main menu T jumps to first entry of sub menu T Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 30: Submenu S (Setup)

    S -> Time (HH:MM:SS) Adjustment of the internal clock Down S -> Date Adjustment of current day of the week and date (WD.DD.MM.YYYY) Down S -> Firmware Adjustment of the firmware Down to 2 Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 31: Submenu S: Solar Iso / Gnd

    S -> Solar ISO / GND ENTER ISO GND-OFF Down S -> Solar ISO / GND ENTER PV+ grounded Down S -> Solar ISO / GND ENTER PV- grounded Down to 5 Use new value Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 32: Submenu S: Country Settings

    Down S -> Country settings Islanding Active / Not active Down S -> Country settings DC injection x(mA) < x.xx(s) Down S -> Country settings Sync time x(s) Down to 5 Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 33: Submenu S: Firmware

    Isolate the solar inverter from the grid (open automatic circuit breaker). Switch off the DC disconnector. Wait: approx. 1 minute. Switch DC disconnector back on. Switch in grid (close automatic circuit breaker). Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 34: Display Messages

    DC side during resistance on the DC side of the red: <on> warning start-up phase or running PV modules. Solar inverter is still yellow: <off> Isolation run- phase. feeding! ning warning Operation and installation manual SOLIVIA 2.5 AP G3 TR...
  • Page 35 DC voltage and selection no input entry within 5 yellow: <on> then switch it on again. minutes. nOTE Please follow the instructions above before contacting your service technician! Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 36: Technical Data

    In certain states in Australia, power limitation is required. With power limitation, the output (AC) power of SOLIVIA 2.5 AP G3 TR will be as followed: Power limitation setting AU PL -> Max. power 2490 W, Nominal power: 2350 W Operation and installation manual SOLIVIA 2.5 AP G3 TR...
  • Page 37 IEC / EN 61000-6-2; EN 61000-6-2; IEC / EN 61000-6-3 IEC / EN 61000-6-3 AS/NZS 60950; AS/NZS 3100; IEC 62103; EN 50178; Safety AS 4777.2; AS 4777.3 IEC 62109-1, IEC 62109-2 Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 38: Appendix

    Switching equipment Anti-islanding protection with voltage and frequency Consumer monitoring, as well as network impedance measurement equipment of the customer Photovoltaic Short-circuit protection generator with Overload protection power inverter max. 4.6 kVA Operation and installation manual SOLIVIA 2.5 AP G3 TR...
  • Page 39 Switching equipment Anti-islanding protection with voltage and Consumer equipment frequency monitoring, as well as network of the customer impedance measurement Photovoltaic Short-circuit protection generator with Overload protection power inverter max. 4.6 kVA Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 40: Overview Of Connection Diagrams

    DC disconnector DC disconnector Solivia 2.5 Solivia 2.5 Automatic circuit Automatic breaker circuit breaker type B 25 A type B 25 A Customer Meter for Meter for power power feed-in consumption Operation and installation manual SOLIVIA 2.5 AP G3 TR...
  • Page 41 PV generator DC disconnector Solivia 2.5 Fuse Operation and installation manual SOLIVIA 2.5 AP G3 TR...

  • Page 42: Glossary

    The Maximum Power Point is the point of the current-voltage diagram of a PV cell at which the largest power can be tapped off, i.e. the point at which the product of current and voltage has its maximum value. Operation and installation manual SOLIVIA 2.5 AP G3 TR...
  • Page 43 PV cells are large-surface photodiodes which convert light energy (generally sunlight) into electrical energy. This comes about by utilization of the photoelectric effect (photo- voltaics). PV generator System comprising a number of PV modules. Operation and installation manual SOLIVIA 2.5 AP G3 TR...
  • Page 44 PV module Part of a PV generator; converts PV energy into electrical energy. RJ45 Abbreviation for standardized eight-pole electrical connector connection. RJ stands for Registered Jack (standardized socket). RS485 (EIA485) Differential voltage interface on which the genuine signal is transmitted on one core and the negated (or negative) signal on the other core.

  • Page 45: Certificates

    N136 ACMA supplier code number (AGENT) 18 Hood Street Rosedale Vic. Product details Product description – brand name, type, model, lot, batch or serial number (if available) Delta Brand Name SOLIVIA2.5APG3 Model Number Solar Inverter Description Compliance with Radiocommunications (Electromagnetic Compatibility) Standard 2008 The above mentioned product complies with the requirements of the Radiocommunications (Electromagnetic Compatibility) Standard 2008.
  • Page 48 SuPPORT - ASIA-PACIFIC Delta Energy Systems (Australia) Pty. Ltd. Unit 6, 25 Howleys Road Notting Hill VIC3168 Australia Phone: +61 3 9543 3053 Fax: +61 3 9544 0606 Support Email: support.australia@solar-inverter.com Delta Energy Systems (India) Pvt. Ltd. Ozone Manay Tech Park ‘A’...
