Modular Optical Tweezers

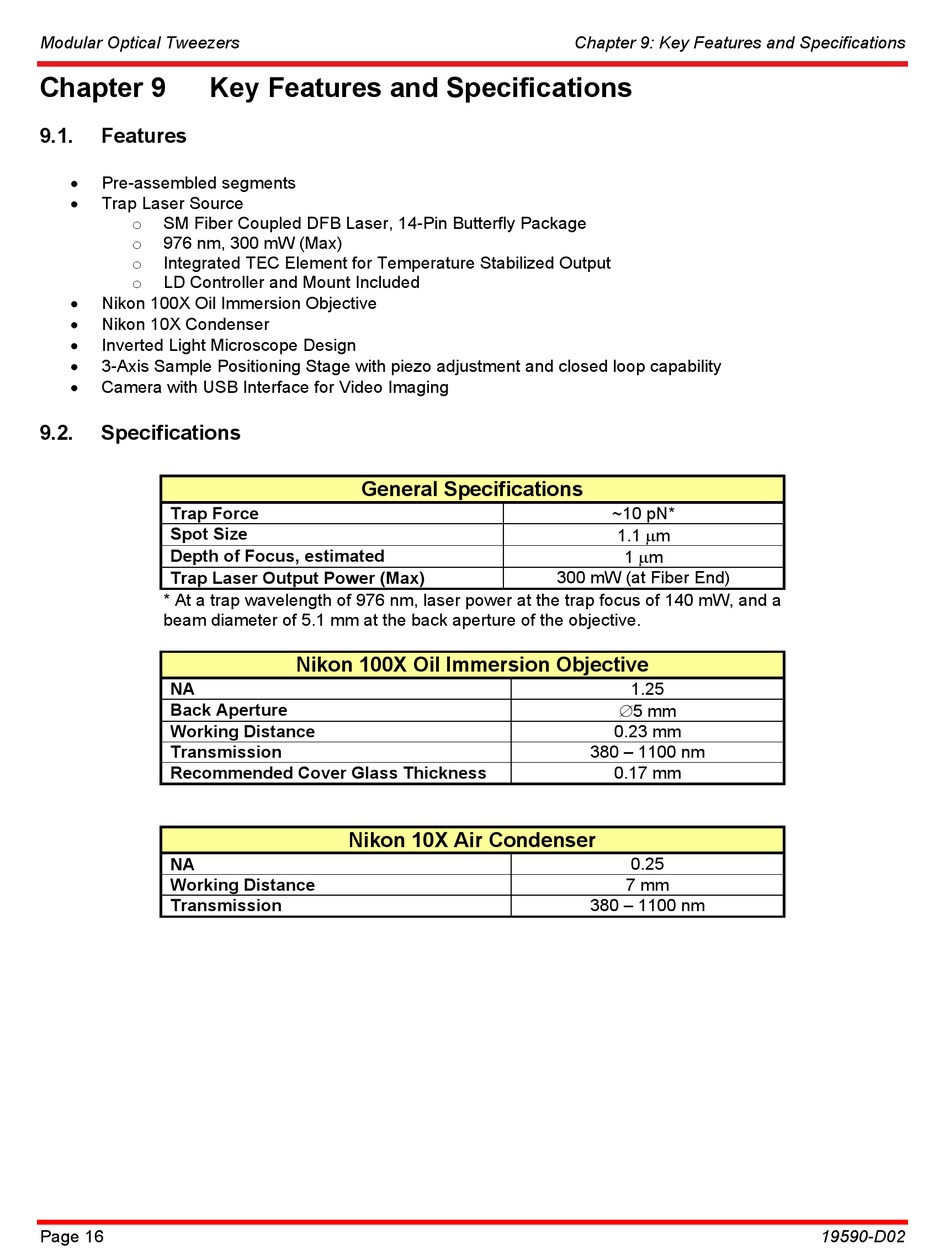

Chapter 9 Key Features and Specifications
9.1.

Features


Pre-assembled segments

Trap Laser Source
SM Fiber Coupled DFB Laser, 14-Pin Butterfly Package
o
976 nm, 300 mW (Max)
o
Integrated TEC Element for Temperature Stabilized Output
o
LD Controller and Mount Included
o

Nikon 100X Oil Immersion Objective

Nikon 10X Condenser

Inverted Light Microscope Design

3-Axis Sample Positioning Stage with piezo adjustment and closed loop capability

Camera with USB Interface for Video Imaging
9.2.

Specifications

Trap Force
Spot Size
Depth of Focus, estimated
Trap Laser Output Power (Max)
* At a trap wavelength of 976 nm, laser power at the trap focus of 140 mW, and a
beam diameter of 5.1 mm at the back aperture of the objective.
NA
Back Aperture
Working Distance
Transmission
Recommended Cover Glass Thickness
NA
Working Distance
Transmission
Page 16
General Specifications
Nikon 100X Oil Immersion Objective
Nikon 10X Air Condenser
Chapter 9: Key Features and Specifications
~10 pN*
1.1 m
1 m
300 mW (at Fiber End)
1.25
5 mm
0.23 mm
380 – 1100 nm
0.17 mm
0.25
7 mm
380 – 1100 nm
19590-D02
