Reflective 2D Phase Only Spatial Light Modulators (SLMs)
400 - 850 nm, 650 - 1100 nm, or 1550 nm Operating Wavelengths
Available Resolutions: 1920 x 1080 or 1920 x 1200
Highly Stable Phase Control with Minimal Flickering
O V E R V I E W
Features
Liquid Crystal on Silicon (LCoS) with Reflective Coating
Panel Resolutions: 1920 x 1080 or 1920 x 1200
Operating Wavelengths: 400 - 850 nm, 650 - 1100 nm, or
1550 nm
High-Power Models Available for 400 - 850 nm or 650 - 1100 nm Operating Ranges
All-in-One and Separate-Panel Mounting Configurations
Liquid Cooling Module Included on SLM Head
Fill Factor: >90% (Varies by Model)
Independent Horizontal and Vertical SLM Panel Tilt Adjustments (Standard SLM
Models Only)
Trigger Output for Timing Control of Other Devices (All Models Except
EXULUS-HD1)
Fast Frame/Refresh Rates up to 180 Hz (EXULUS-HD1 Only, Using
Frame Boost)
Customizations Available:
Panel and Controller in Separate Units (Standard SLM Models
Only)
Other Retardance Ranges (Contact Tech Support for Details)
®
Thorlabs' Exulus
Spatial Light Modulators (SLMs) employ Liquid Crystal on
Silicon (LCoS) technology to produce high-resolution, high-speed reflective
phase modulation with individually addressable pixels. This phase control is
EXULUS-HD1 - November 22, 2023
S P A T I A L L I G H T M O D U L A T O R S

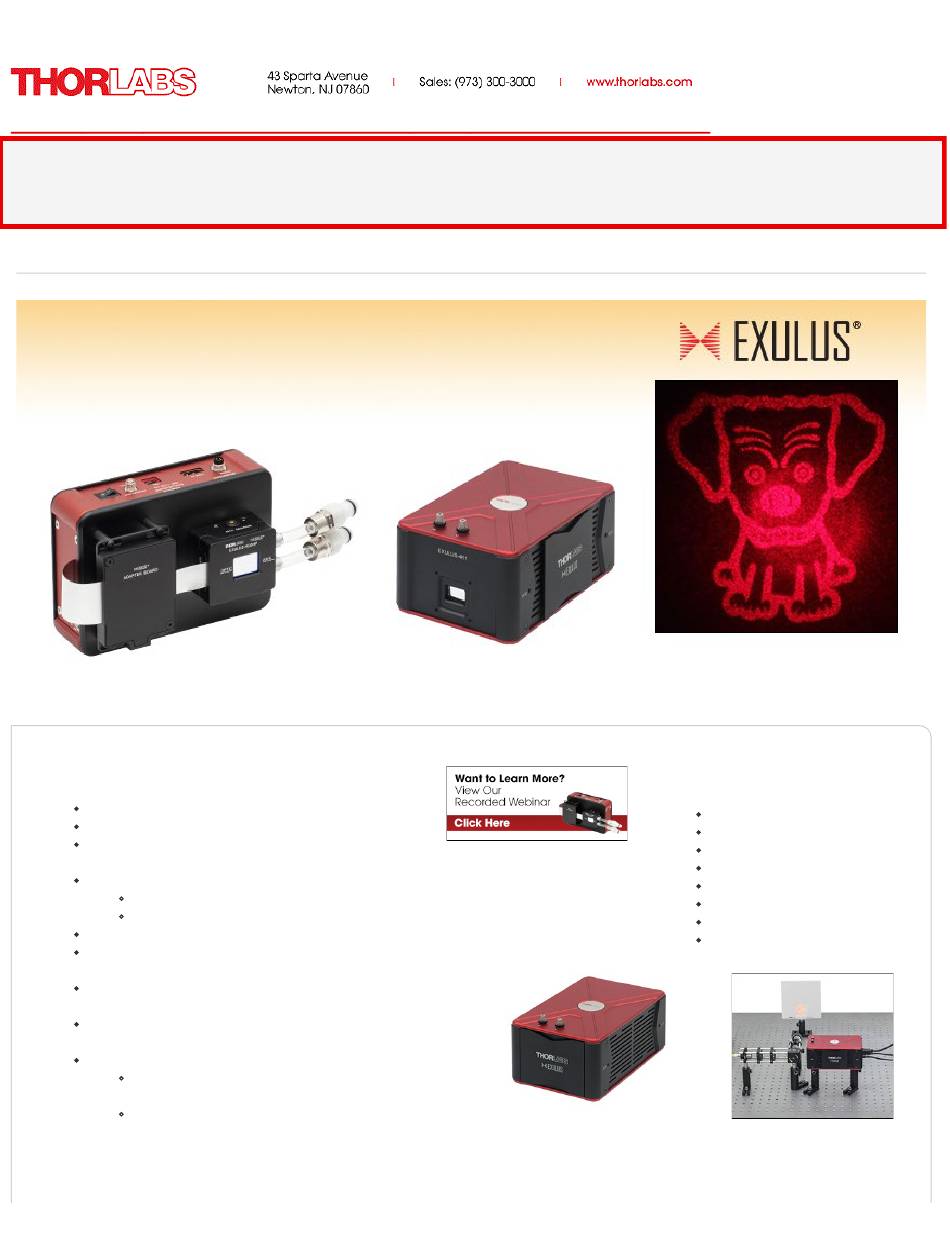

EXULUS-HD3HP
Removable SLM Head,
EXULUS-HD1
1920 x 1200 (WUXGA),
1920 x 1080 (Full HD),
650 - 1100 nm
400 - 850 nm
Image Generated by SLM Using Computer-
Generated Hologram Projection. For Details, See
Click to Enlarge
The Exulus SLMs (excluding the high-
power SLMs) are provided with a
magnetic cover; when the SLM is in
use, the cover can be attached to the
designated area on the housing (sides
for the HD1 models and back for the
Applications
Wavefront Correction
Optical Trapping
Beam Steering
Pulse Shaping
Adaptive Optics
Holography
Laser Processing
Lithography
Click to Enlarge
Each Exulus SLM features multiple 8-
32 (M4) taps for post mounting. For a
list of items used in this setup, see the
App Note tab.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for THORLABS EXLUS-HD1
Summary of Contents for THORLABS EXLUS-HD1
- Page 1 The Exulus SLMs (excluding the high- Each Exulus SLM features multiple 8- power SLMs) are provided with a ® Thorlabs' Exulus Spatial Light Modulators (SLMs) employ Liquid Crystal on 32 (M4) taps for post mounting. For a magnetic cover; when the SLM is in...
- Page 2 *HDMI is a trademark or registered trademark of HDMI Licensing Administrator, Inc. DisplayPort is a trademark owned by the Video Electronics Standards Association (VESA) in the United States and other countries. The use of such trademarks by Thorlabs does not constitute or imply any affiliation with or endorsement or sponsorship by their respective trademark owners.
- Page 3 Angles of incidence other than 0° will result in phase shifts that differ from the programmed pattern. Angles of up to 10° are possible without significantly affecting performance. Frame Boost Mode (referred to as Triple Mode in the software) plays the R, G, and B channels of the video signal in succession, for an overall frame rate of 180 Hz.
- Page 4 Ambient temperature fluctuations may cause the characteristics of your SLM to change. Using it at an ambient temperature of 25 °C is recommended. Item # EXULUS-HD2 EXULUS-HD3 EXULUS-HD4 Panel Resolution 1920 x 1200 (WUXGA) Type Liquid Crystal on Silicon (LCoS) with Reflective Coating Operating Wavelength 400 - 850 nm 650 - 1100 nm...
- Page 5 Average Reflectance 80% (Typical) 2π at 633 nm (Full Wave Mode) 2π at 1064 nm (Full Wave Mode) Phase / Retardance Range π at 633 nm (Half Wave Mode) π at 1064 nm (Half Wave Mode) 0° Angle of Incidence Optic Axis 0°...
- Page 6 When a repeating, linear phase pattern is displayed on the SLM, it will function similarly to a blazed diffraction grating. The diffraction efficiency is the power in the first-order of the diffraction pattern divided by the zero-order when the phase of the SLM is set to zero across the panel. These measurements were made at 633 nm, 1064 nm, or 1550 nm for several test patterns with varying phase steps, effectively creating gratings with varying line spacing (denoted as line pair / mm).
- Page 7 The "Spatial Light Modulator" software package is designed for use with our EXULUS-HD1. EXULUS-HD3HP SLMs. The "Thorlabs EXULUS" software package is designed for use with our EXULUS-HD2, EXULUS-HD3, EXULUS-HD4, EXULUS-HD2HP, and EXULUS-HD3HP SLMs. Click the button below to visit the software page.
- Page 8 HD2, and EXULUS-HD4) frame rate. In triple mode (EXULUS-HD1 only), a color video will play the R, G, B channels in succession at a 180 Hz frame rate. "Thorlabs EXULUS" Software Package for EXULUS-HD2, EXULUS-HD3, EXULUS-HD4, EXULUS-HD2HP, and EXULUS-HD3HP Click to Enlarge Click to Enlarge...
- Page 9 ® shift. Thorlabs' Exulus 2D SLM is fabricated with liquid crystal on silicon (LCoS) technology, which is based on display technology. This allows it to provide far more pixels than lower-order phase modulators such as segmented or deformable mirrors. Also, the phase shift of one pixel has little crosstalk with other pixels.
- Page 10 ® The main component of the Exulus is the 2D SLM LCoS panel. Figure 1 shows a basic schematic of the LCoS panel. The liquid crystal layer is sandwiched between the top transparent and conductive ITO electrode, and the reflective electrode on the bottom. Each pixel on the SLM panel corresponds to individually addressable electrodes on the bottom.
- Page 11 Effects of Focusing and Tilt Due to the fill factor of the SLM panel, there is a small gap between the pixels. This in turn causes higher diffraction orders and a high-energy zero-order spot which is unaffected by the SLM, but inherently exists at the output. The center bright spot often overlaps with the holographic projection on the same image plane, as is visible in Figure 4.
- Page 12 Figure 8: An optical tweezers system incorporating an EXULUS-HD1 SLM. D A M A G E T H R E S H O L D S Damage Threshold Data for Thorlabs' Exulus Spatial Light Damage Threshold Specifications Modulators Item #...
-
Page 13: Testing Method
Testing Method Thorlabs' LIDT testing is done in compliance with ISO/DIS 11254 and ISO 21254 specifications. First, a low-power/energy beam is directed to the optic under test. The optic is exposed in 10 locations to this laser beam for 30 seconds (CW) or for a number of pulses (pulse repetition frequency specified). - Page 14 Thorlabs expresses LIDT for CW lasers as a linear power density measured in W/cm. In this regime, the LIDT given as a linear power density can be applied to any beam diameter; one does not need to compute an adjusted LIDT to adjust for changes in spot size, as demonstrated by the graph to the right.
- Page 15 optic either because of dielectric breakdown or thermal effects. This means that both CW and pulsed damage thresholds must be compared to the laser beam to determine whether the optic is suitable for your application. Pulse Duration t < 10 <...
- Page 16 [3] C. W. Carr et al., Phys. Rev. Lett. 91, 127402 (2003). [4] N. Bloembergen, Appl. Opt. 12, 661 (1973). L I D T C A L C U L A T I O N S In order to illustrate the process of determining whether a given laser system will damage an optic, a number of example calculations of laser induced damage threshold are given below.
- Page 17 *HDMI is a trademark or registered trademark of HDMI Licensing Administrator, Inc. The use of such trademark by Thorlabs does not constitute or imply any affiliation with or endorsement or sponsorship by such trademark owner.
- Page 18 *HDMI is a trademark or registered trademark of HDMI Licensing Administrator, Inc. The use of such trademark by Thorlabs does not constitute or imply any affiliation with or endorsement or sponsorship by such trademark owner.
- Page 19 *HDMI is a trademark or registered trademark of HDMI Licensing Administrator, Inc. The use of such trademark by Thorlabs does not constitute or imply any affiliation with or endorsement or sponsorship by such trademark owner.
- Page 20 EXULUS-HD1 First-Order Diffraction ff iciency at 633 nm � 100 .__..6 SleP,)s >- ■ 8 Steps ■ teps ■- 2StE � ■ ■- � TI-tQRl �fg� ■- . ' . Line Pair/ mm...
