1. INTRODUCTION

1.1.

The system

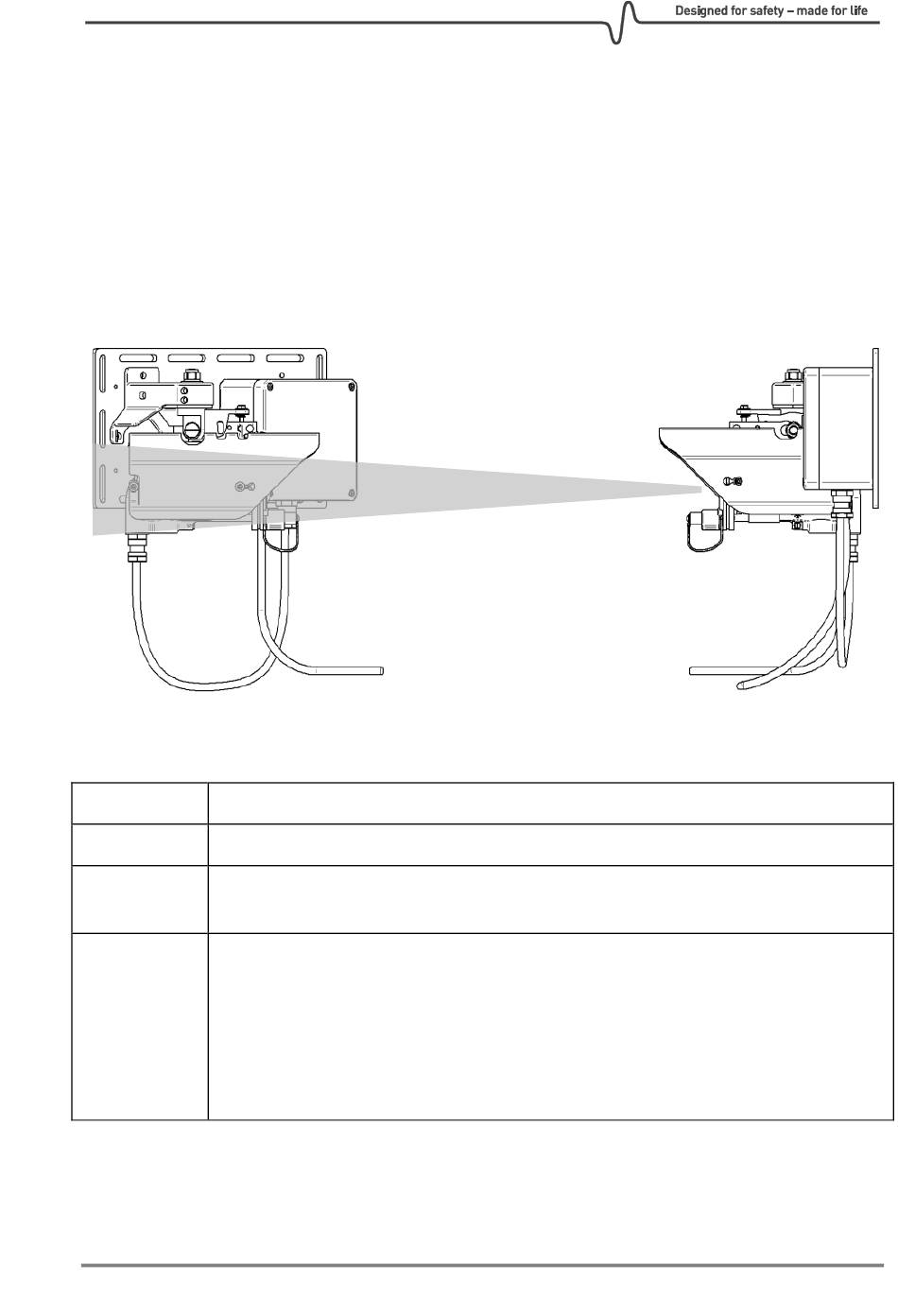

The GD1 is a laser-based open path Gas Detector with a separate transmitter (TX) and
receiver (RX). The TX emits infrared laser light detected by the RX. The detection principle
is based on measuring the absorption of light by the gas molecules along the optical line-
of-sight.
RECEIVER
1.2.

Definitions

TX Transmitter
RX Receiver
Absolute Strength of the optical signal
transmission
Relative The relative strength of the optical signal in percentage relative to the
transmission Absolute transmission when finishing alignment.
During commissioning, the GD1 is set up with optimum alignment and
signal strength. The relative transmission is used to keep track on how dirty
or out of alignment the system has become after the GD1 was
commissioned.
GD1
Laser light
