2.2.

Positioning

Deciding on how the GD1 detectors should be placed at the site is discussed in section
10.3. During installation the detector should be positioned according to the following
points:
• Check that there is a free line of sight between the TX and RX.
• The measuring path should be horizontal.
• Avoid that the measuring path is blocked by temporary scaffolding, parked cars,
high traffic and moving structures.
• The detector should be attached to a mechanically rigid structure.
• The GD1 should be positioned as to avoid more than one TX transmitting into a RX.
Failing to do this can lead to interference between the detectors and false alarms.
• The transmitter and receiver units are to be fitted perpendicular to the measuring
path, within ± 20 degrees.
2.3.

Mounting

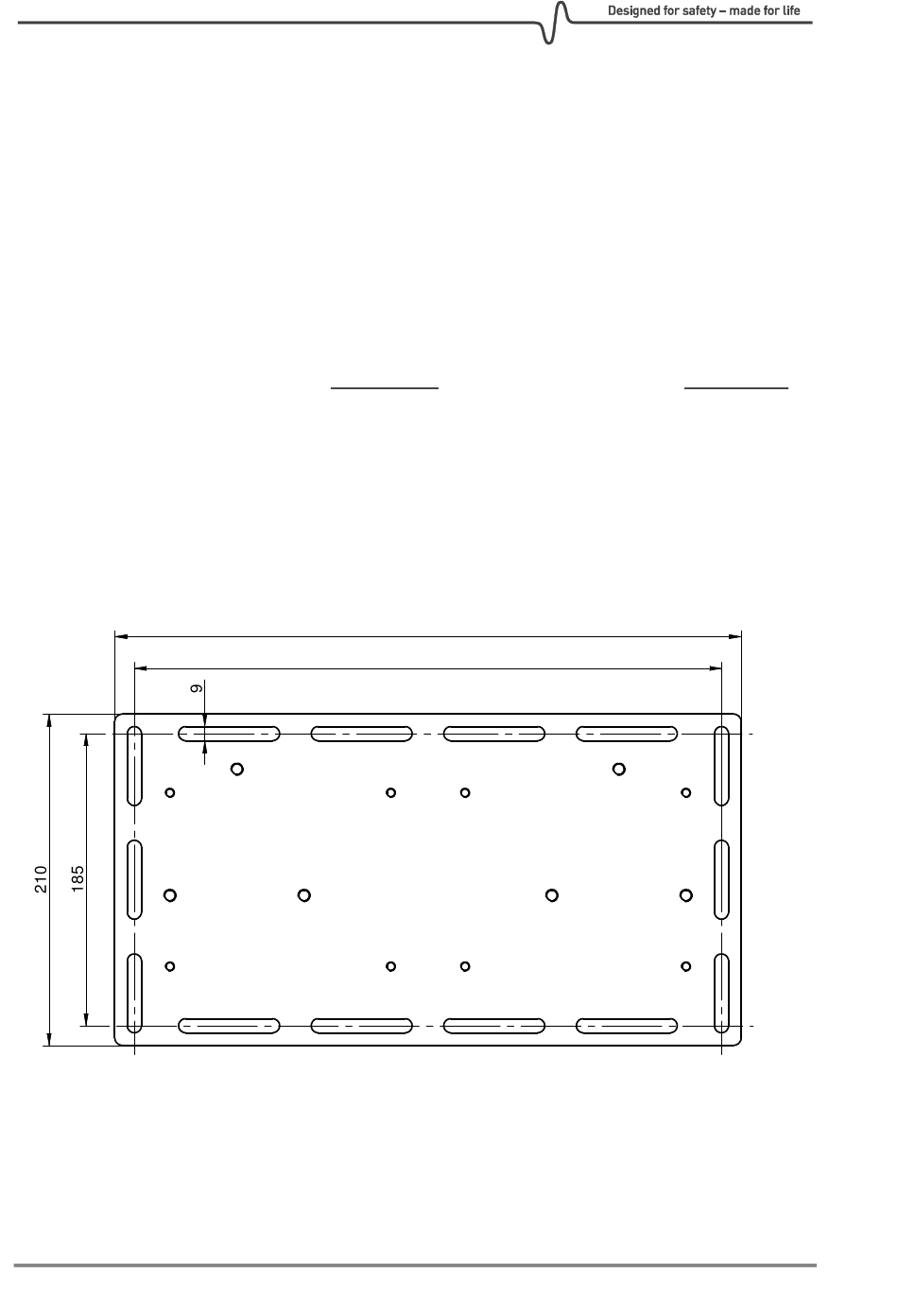

The GD1 Transmitter and Receiver system assemblies are delivered on a 6mm (1/4")
universal mounting plate suitable for most mounting situations. See figure below for
general dimensions (mm).
The transmitter and receiver units are to be mounted perpendicular to the measuring path,
within ± 20 degrees.
GD1
397
372
