Simtronics GD1 MK3 Operating Manual page 22

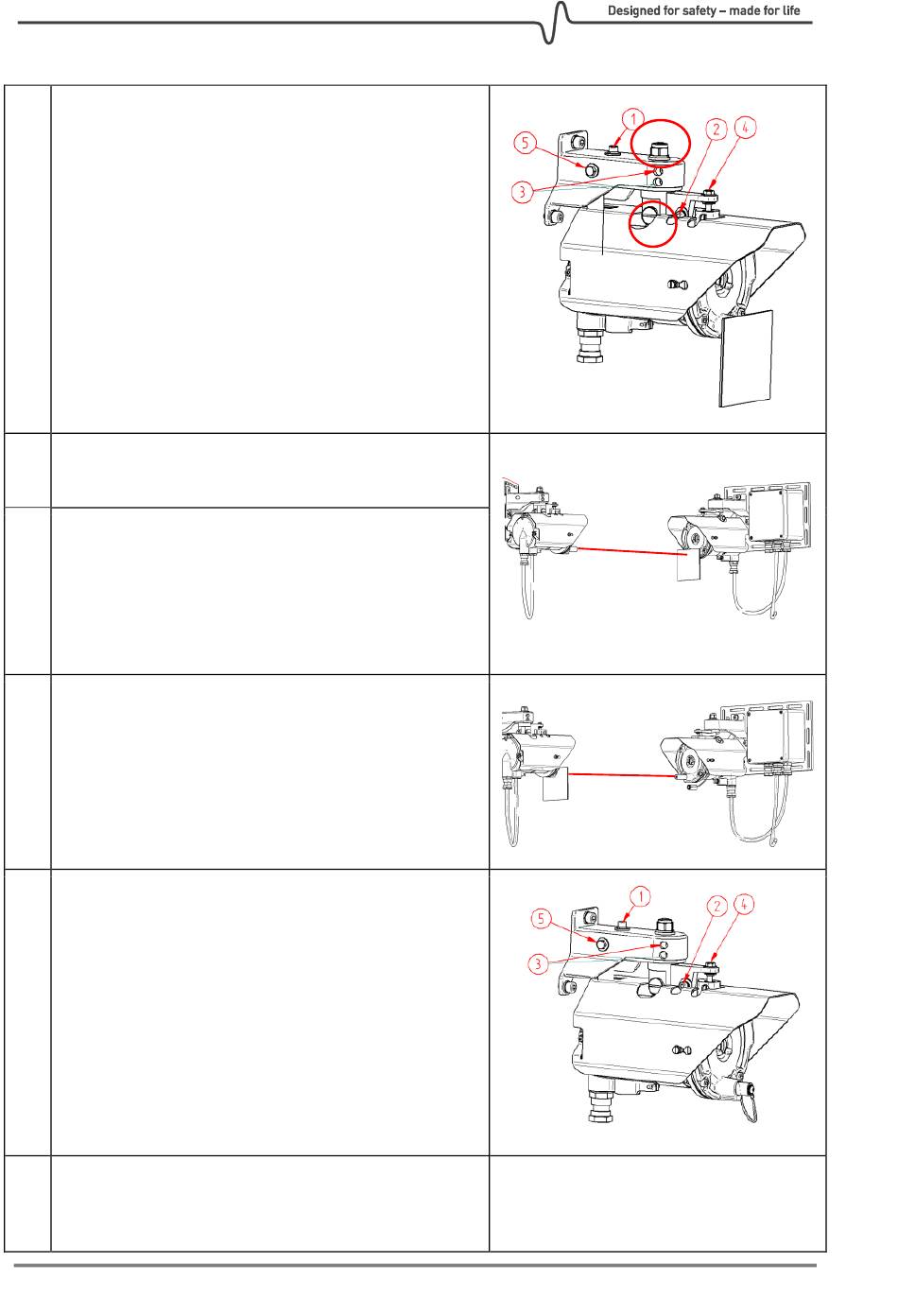

Loosen screws 2 and 3 on both the TX and RX.
Important: Nut A and nut on bolt B are
tightened correctly in the factory and should
3
not be touched. If tightened too much, they
may jeopardize the correct operation of
adjustment screws.
Rotate horizontally by hand so the RX and TX
4
points towards each other.
Adjust the RX with screws 4 (vertical direction)
and horizontal by hand until the laser spot hits
the target plate on the TX.
5
Tighten screws 2 and 3 fully on RX so it cannot
be moved by hand anymore.
Swap sides Alignment Laser and Laser Target
6 Plate so Alignment Laser now is attached to
the TX side.
Now adjust the TX with screws 4 (vertical
direction) and horizontal by hand until the
laser spot hits the target plate on the RX.
7
Tighten screws 2 and 3 fully on TX so it cannot
be moved by hand anymore.
Keep the Alignment Laser and Laser Target
8 Plate in place to assist in the Fine tuning
procedure.
GD1
Coarse alignment finished!
Page 22 of 76
A
B
850-816926-EN R06
