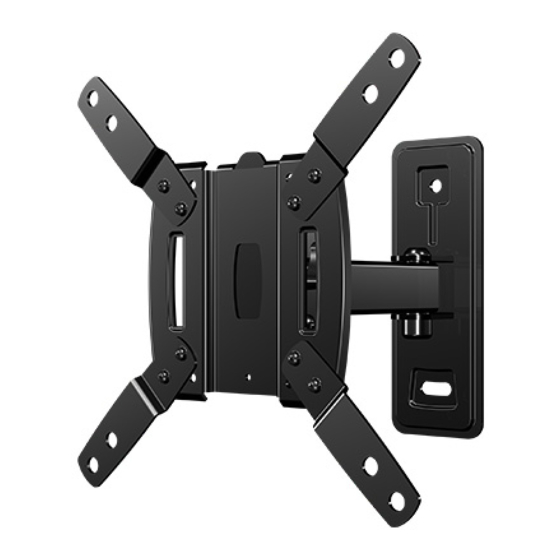

- Page 1 QSF 207 INSTRUCTION MANUAL We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-800-359-5520 We’re ready to help! Scan for easy install video san.us/1143...
- Page 2 This mount is NOT compatible. weigh MORE than products heavier than the maximum weights indicated (11.3 kg) Visit secura-av.com or call 1-800-359-5520 may result in collapse of the mount and its accessories, 25 lbs. (11.3 kg)? (UK: 0800 056 2853) to fi nd a compatible mount.
-
Page 3: Dimension Specifications
Dimension Specifications TV INTERFACE 7.87in 200mm NOTE: TV shifts 4.27 in. (108.6 mm) to the right or left when in the home position. 3.94in Consider this when selecting the location of 100mm your wall mount. .35in 7.87in 8.8mm 200mm WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 7.59in... -
Page 4: Parts And Hardware
Parts and Hardware STEP 1 Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;... - Page 5 STEP 2 Parts and Hardware Lag Bolts 5/16 x 2¾ in. Wall Plate Assembly Washers 5/16 For concrete installations ONLY CAUTION : Do not use in drywall or wood Concrete Anchors Fischer UX 10 x 60R...
- Page 6 STEP 3 Hardware Securement Washer Securement Screw 8-32 x 3/8 in. 8-32 Hardware to Manage Cables Cable Ties...
- Page 7 Hardware for STEP 2C Steel Stud Installations Only [NOT INCLUDED] Contact Customer Service at 1-800-359-5520 (UK: 0800 056 2853) to have these additional pieces shipped directly to you. Screws 1/4-20 x 1.75 Anchors S2 x2 Washers 1/4-20 Snap Toggle BB S1 x2 .734 x .312 x .065 in S3 x2...
- Page 8 STEP 1 Attach TV Bracket to TV 1-1 Measure Your TV Hole Pattern 1-2 Assemble Your TV Bracket Measure the width and height of your TV hole Determine which TV bracket configuration to use, A, B, or C pattern in cm (see conversion chart below). based on your TV hole pattern measurements.
- Page 9 TV hole pattern TV hole pattern measurement measurement 20.0 20.0 x 20.0 20.0 x 10.0 Dimensions in cm Dimensions in cm 20.0 10.0 20.0 Assemble TV bracket extenders onto TV bracket Assemble TV bracket extenders onto TV bracket as illustrated. as illustrated.
- Page 10 1-3 Select TV Screw 1-4 Select TV Screw Length Standard configurations Diameter are shown. For special If your TV has a flat back AND you want your TV closer to the applications, or if you are uncertain about your wall, use the shorter TV screws and no spacers Hand thread screws into hardware selection, the threaded inserts on...
- Page 11 1-5 Attach TV Bracket Position your TV bracket configuration (A, B, or C) over your TV hole pattern - making sure the bracket is centered over the TV hole pattern and level. Install using the TV screw/washer/spacer configuration you selected for your TV. CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step.
-
Page 12: Wood Stud Installation
STEP 2A Attach Wall Plate to Wall Wood Stud Installation CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●... - Page 13 Install wall plate assembly using two lag bolts and washers . Tighten the lag bolts only until the washers are pulled firmly against the wall plate. NOTE : If needed, you can make small level adjustments to the wall plate by loosening the bottom lag bolt and shifting the wall plate until level.
- Page 14 STEP 2B Attach Wall Plate to Wall Solid Concrete or Concrete Block Installation CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate assembly directly onto the concrete surface. ● Minimum solid concrete thickness: 8 in. (203 mm) ●...
- Page 15 Insert two anchors CAUTION: Be sure the anchors are seated flush with the concrete surface. Install wall plate assembly using two lag bolts and washers . Tighten the lag bolts only until the washers are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt .
- Page 16 STEP 2C Attach Wall Plate to Wall Steel Stud Installation Steel Stud Anchor Kit SSMK1 is not included (see page 7) Contact Avoid potential personal CAUTION: injury or property damage! Customer Service at 1-800-359-5520 to have the additional hardware shipped directly to you. Locate your stud.
- Page 17 Drill pilot holes as illustrated. Fold metal channel of anchor S1 until it is flat with the plastic straps and slide the metal channel into the drilled hole. 1 in. (25 mm) 1/2 in. (13 mm)
- Page 18 Hold the plastic straps of anchor S1 by the end and pull towards you until the metal channel is flush behind the drywall. Slide the plastic cap down the straps and into the hole with the lip of the cap flush against the wall.
- Page 19 Bend the straps up and down until they snap off level with the lip of the cap. CAUTION: Be sure the cap is seated against the drywall surface and the ends of the anchor do not extend beyond the cap - cut if neccessary. Install wall plate assembly using two screws and two washers...
- Page 20 STEP 3 Hang TV onto Wall Plate HEAVY! You may need assistance with this step. Hang the TV onto the arm of wall plate assembly by first hooking the top support, then resting the TV into place. Lock the TV to the wall plate assembly with securement screw and washer CAUTION:...
-
Page 21: Manage Cables
Manage Cables Use cable ties to bundle cables and to attach cables to the arm of the wall plate assembly for a cleaner look. -
Page 22: Tilt Adjustment
TV Adjustments TILT ADJUSTMENT LEVEL ADJUSTMENT Your TV should adjust easily when moved, then stay in place. To adjust the leveling of your TV, loosen the securement screw , level your TV, then tighten securement screw If your TV is too loose or too tight, adjust the tilt tension CAUTION! This securement screw must be... -
Page 23: Removing The Tv
REMOVING THE TV HEAVY! You may need assistance with this step. To remove your TV from the wall plate assembly Disconnect all cables from your TV. Remove the securement screw and washer (See STEP 3). Lift the TV up and off of wall plate assembly... - Page 24 Features 20.0 10.0 20.0 10.0 TV bracket can be confi gured to fi t TV hole patterns from 7.5 x 7.5 cm up to 20.0 x 20.0 cm...
- Page 25 Adjustments allow fi ngertip control Fully articulating arm, with of TV or restriction of TV movement 2 pivot points, creates optimal viewing positions 15˚ TV tilts up or down for the perfect viewing angle Level adjustments create a worry-free installation 3˚...
- Page 26 Blank Page...
- Page 27 Blank Page...
- Page 28 Thank you for choosing Secura! Please take a moment to let us know how we did: Email us: info@secura-av.com Call us: 1-800-359-5520 UK: 0800 056 2853 Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete.
