Summary of Contents for Cedes TOFniva

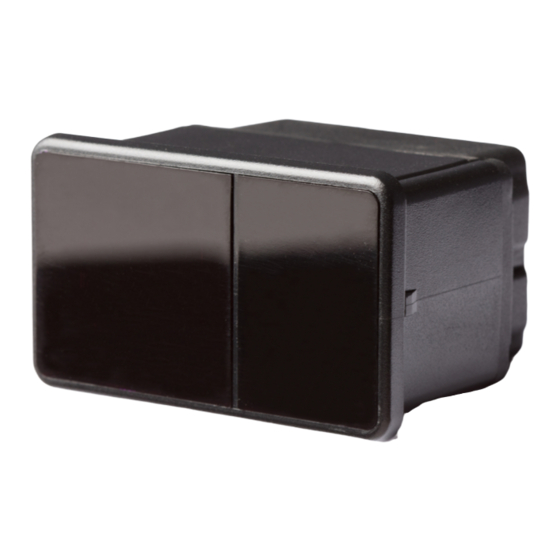

- Page 1 TOFniva Installation and Operation Manual RoHS CEDES AG is certified according to ISO 9001: 2015 English Pages 2 – 9 115 078 | 181128 | V 1.2...
-
Page 2: Table Of Contents
Start-up CH-7302 Landquart Timing diagram Switzerland LED signals Blanking Trouble shooting Maintenance Disposal Technical data Dimensions 16.1 Sensor 16.2 Mounting brackets CEDES AG reserves the right to modify or change technical data without prior notice. © CEDES | V 1.2... -
Page 3: Safety Information
Safety messages categories Keep the instruction manual on site. Warning of serious health risks The TOFniva should only be installed by authorized and WARNING fully trained personnel! The installer or system integrator is fully responsible for the safe integration of the sensor. It is... -
Page 4: Introduction
Type description The TOFniva is a compact yet powerful and flexible range TOFniva – a – bb – c – d – e – fff; g; h,h*i,i of sensors. These detect people and objects within a planar area of max 2.0 m by 2.0 m. TOF technology enables... -
Page 5: Installation
Take a small screw driver and turn the potentiometer to the required position. 2. Define the ideal place to mount the sensor Important: The TOFniva must be mounted with a 6° angle or with a minimum distance of 200 mm parallel to Surface B. -
Page 6: Input / Output Description And Electrical Connection
7. Input / Output description and electrical connection Generally the TOFniva has one output that is triggered if the detection field is interrupted. For this purpose, a push-pull output is used. With the logic selector (gray wire, Figure 6), the logic of the output signal can be configured for “HIGH“... -
Page 7: Blanking
14. Disposal The TOFniva should only be replaced if a similar protection device is installed. Disposal should be done using the most up-to-date recycling technology according to local regulations and laws. There are no harmful materials used in the design and manufacture of the sensor. -
Page 8: Technical Data
Selectable output logic • green Not connected • General Eye safety EN 62471:2008 EMC emission EN 61000-6-3:2007 EN 12015:2014 EMC immunity EN 61000-6-2:2005 EN 12016:2013 Vibration IEC 60068-2-6:2007 Shock IEC 60068-2-27:2008 RoHS 2011/65/EU Certificate © CEDES | V 1.2... -
Page 9: Dimensions
TOFniva English 16. Dimensions Measurements (all dimensions in mm) 16.1 Sensor 16.2 Mounting brackets Flat - flush mounting 70.5 6° - flush mounting 70.5 © CEDES | V 1.2... - Page 10 TOFniva English © CEDES | V 1.2...
- Page 11 TOFniva English © CEDES | V 1.2...
- Page 12 TOFniva CEDES AG, Science Park | CH-7302 Landquart Phone: +41 81 307 2323 | Fax: +41 81 307 2325 | info.eu@cedes.com | www.cedes.com...
