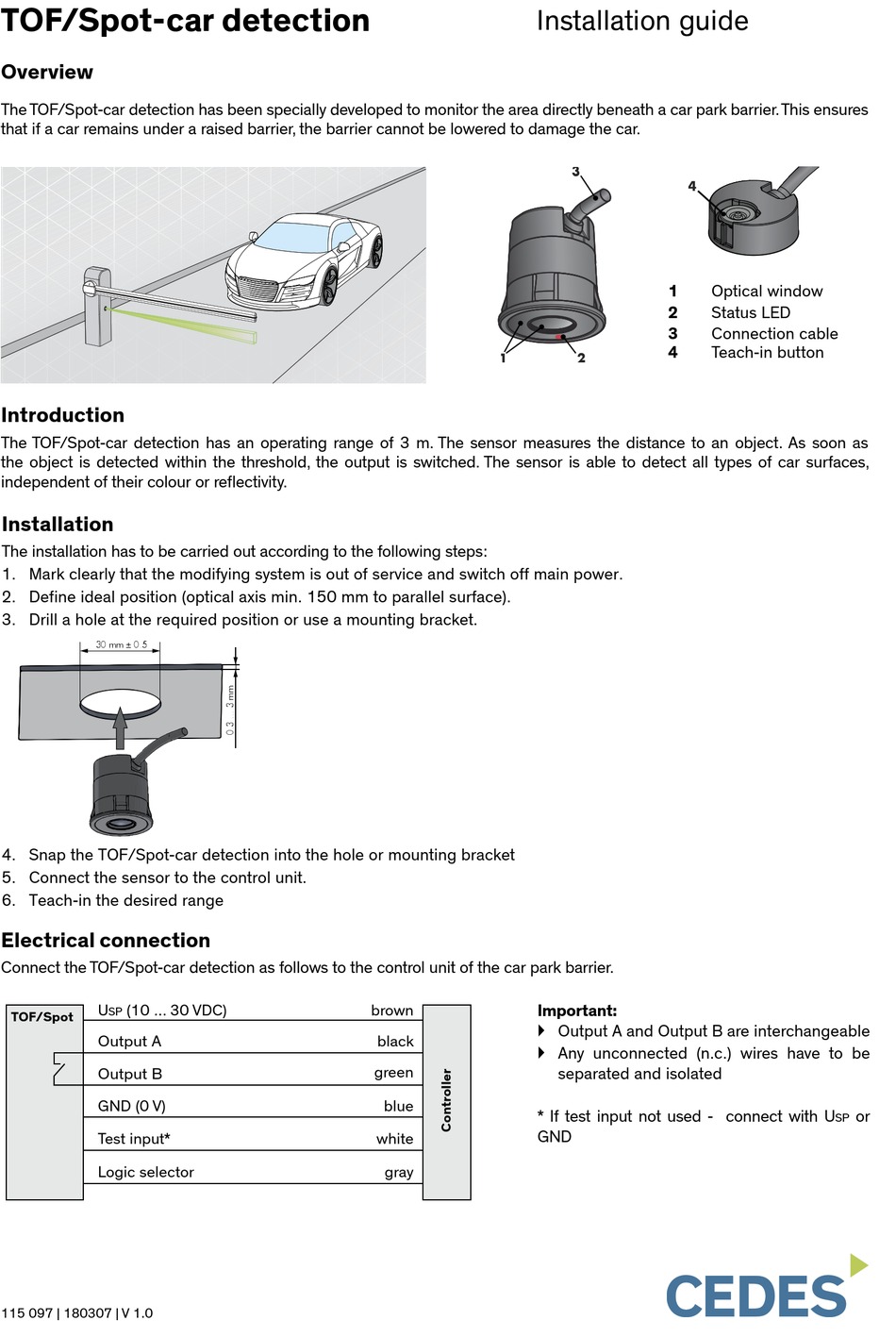

Cedes TOF/Spot-car detection Installation Manual

TOF/Spot-car detection
Overview

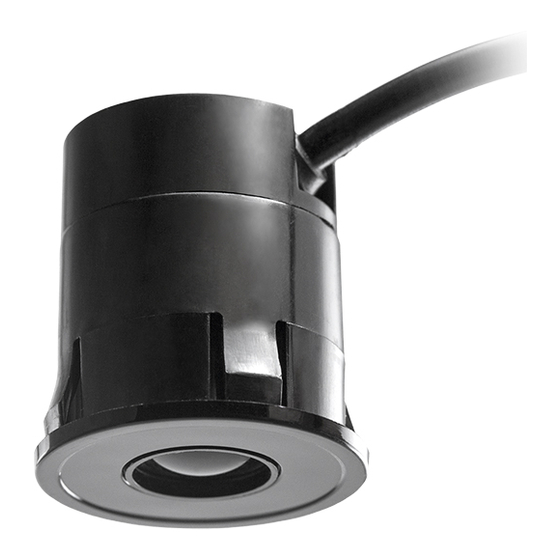

The TOF/Spot-car detection has been specially developed to monitor the area directly beneath a car park barrier. This ensures
that if a car remains under a raised barrier, the barrier cannot be lowered to damage the car.
Introduction
The TOF/Spot-car detection has an operating range of 3 m. The sensor measures the distance to an object. As soon as
the object is detected within the threshold, the output is switched. The sensor is able to detect all types of car surfaces,
independent of their colour or reflectivity.
Installation
The installation has to be carried out according to the following steps:
1. Mark clearly that the modifying system is out of service and switch off main power.
2. Define ideal position (optical axis min. 150 mm to parallel surface).
3. Drill a hole at the required position or use a mounting bracket.
30 mm ± 0.5
4. Snap the TOF/Spot-car detection into the hole or mounting bracket
5. Connect the sensor to the control unit.
6. Teach-in the desired range

Electrical connection

Connect the TOF/Spot-car detection as follows to the control unit of the car park barrier.
U (10 ... 30 VDC)
SP
TOF/Spot
Output A
Output B
GND (0 V)
Test input*
Logic selector
115 097 | 180307 | V 1.0
Installation guide
1
Important:
brown
` Output A and Output B are interchangeable
black
` Any unconnected (n.c.) wires have to be
green
blue
* If test input not used - connect with U
GND
white
gray
3
4
1 Optical window
2 Status LED
3 Connection cable
4
Teach-in button
2
separated and isolated
or
SP
