Anolis ArcSource Outdoor 48 MC User Instructions

ArcSource Outdoor 48 MC (Spot, Medium, Flood)
The product generates colored light by means of high power LEDs.The product was designed for exterior use
and it is ideal for locations where signaling,directional or effect lighting is required.

1.Attention

Consider the respective national norms during the installation!
Do not install the unit near naked flames.
Avoid using the unit in locations subject to possible impacts.
Do not attempt to dismantle or modify the unit.
Do not install the module in badly ventilated location
Avoid looking directly into the LED light beam at close range.

2.Installation

The ArcSource Outdoor unit should be connected to the ArcPower 384Rack Mount, See its user manual for
full details of mains power requirements and DMX operation.
Only one ArcSource Outdoor unit can be connected to the LED output of the driver.

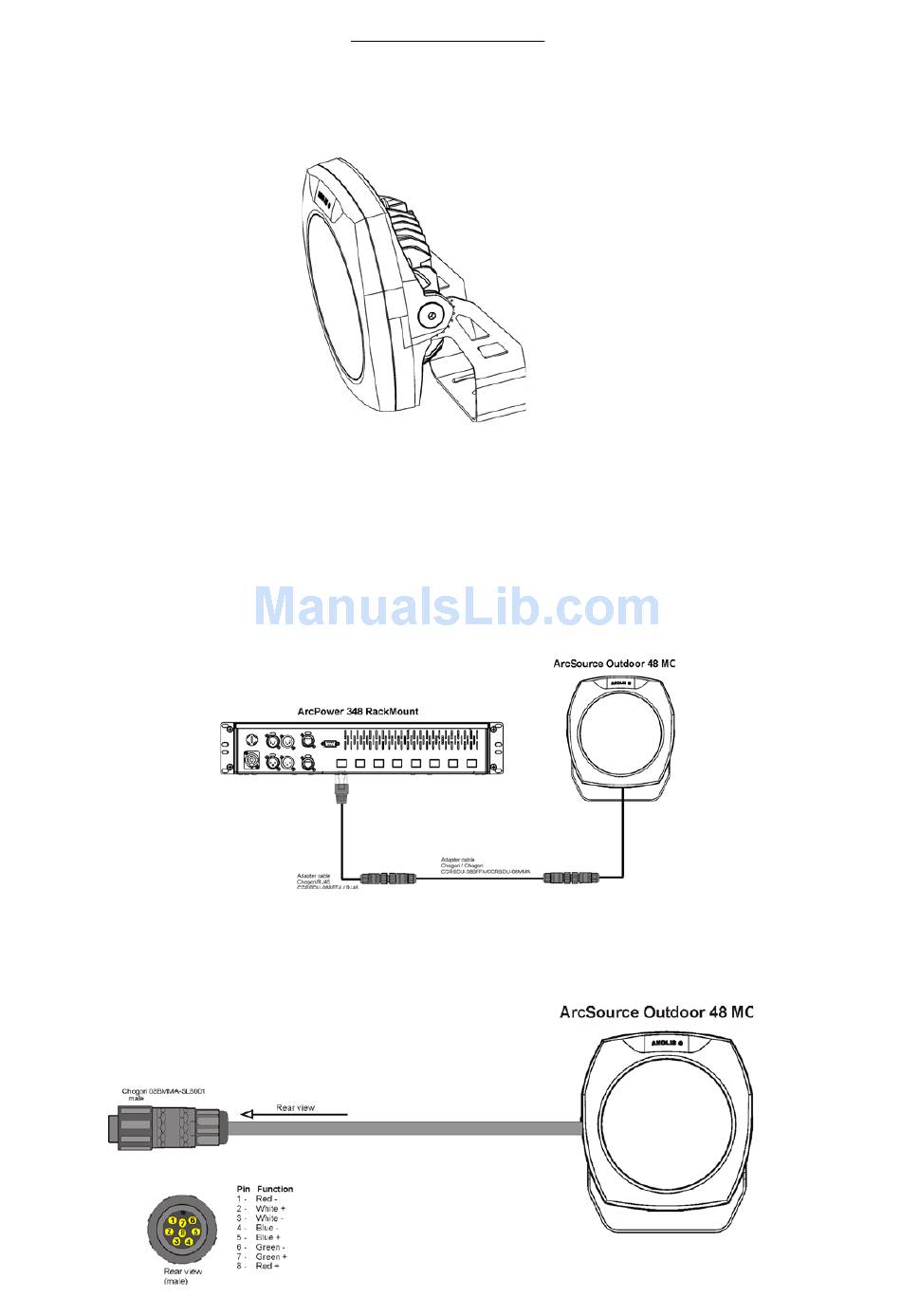

Connections:
. ArcSource Outdoor 48 MC
User instructions
