O p e r a t i n g i n s t r u c t i o n s
Boiler
G.C No
Q 25S
41-310-08
Q 38S
41-310-09
Q 51S
41-310-10
Q 60S
41-310-11
Q 25C
47-310-10
Q 38C
47-310-11
Q 51C
47-310-12
CE PIN 0063BQ3021
SHR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q 25S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atag Q 25S

Summary of Contents for Atag Q 25S

  • Page 1 O p e r a t i n g i n s t r u c t i o n s Boiler G.C No Q 25S 41-310-08 Q 38S 41-310-09 Q 51S 41-310-10 Q 60S 41-310-11 Q 25C 47-310-10 Q 38C...

  • Page 2: Table Of Contents

    Adjustments ............ 14 Important! It is in your own interest that we should know that you have an ATAG boiler. Please fill out the warranty card completely and send it back to us. Then we can be fully at your service.

  • Page 3: Introduction

    Introduction These operating instructions describes the functioning and the operating of the SHR boilers. This manual is for the end user. For installation and servicing there is a installation & servicing instructions manual for the installer. Read this manual fully before operating the boiler. In case of doubt or errors contact your installer.

  • Page 4: Safety

    Safety In case you smell gas: No naked flames! Do not smoke! Do not operate electrical switches for lights or any other appliance. Do not use a telephone Turn off gas supply at meter Open windows and doors Notify any persons in the building and leave the building at once.

  • Page 5: Description Of The Boiler

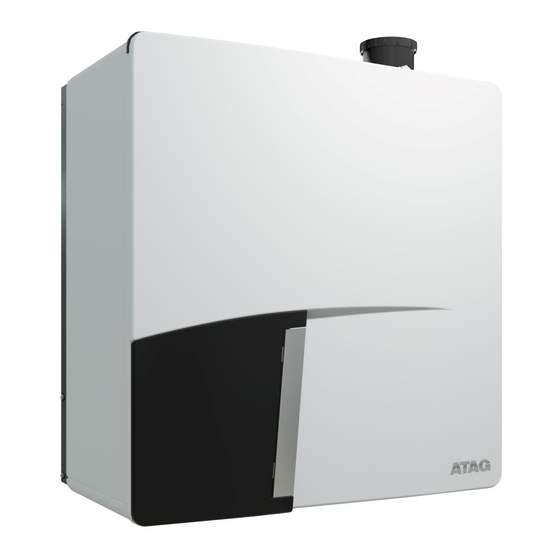

    Description of the boiler The SHR boiler is a room sealed, condensing and modulating central heating boiler, with or without an integrated hot water facility. The boiler is provided with a compact stainless Room sealed boiler The boiler retreives its steel heat exchanger with smooth tubes.
  • Page 6 The efficiency of the boiler is very high and the radiation convection and standby losses very low. The emission of noxious substances is far below the fixed standards so the boiler meets the Example SEDBUK ClassA requirements of SEDBUK Class A. When the boiler is connected to a Brain Q or Smart a lot of information can be retrieved from the boiler.

  • Page 7: Explanation Of The Function Keys And Display

    Explanation of the function keys and display Display Indication L.E.D.'s Step key Central heating Scrolling on/off Domestic Hot water on/off Pump programm on/off Mode key Reset key Selecting chapters Unlocking the boiler (Store) On/off key Central heating. When 'on' the indication L.E.D. is illuminated. On/off key Domestic hot water (DHW) When 'on' the indication L.E.D.

  • Page 8: The Boiler Display

    The boiler display The reading of the boiler display can be done in two ways. The Good reading During this reading the display will only show what is necessary. Under normal circumstances the display will give a Good reading. If a fault is detected the boiler will be blocked.

  • Page 9: Water Pressure In The Central Heating System

    Water pressure in the central heating system The installation will function optimally with a water pressure of between 1,5 and 1,7 bar. If the water pressure drops below 1 bar, the display will show FILL. During this message the boiler will remain functioning at a reduced level.

  • Page 10: Replenishing The Central Heating

    Replenishing the central heating system The central heating installation needs to be filled with potable (drinking) water. For topping up the installation you use the filling loop according to the following procedure: (If in any doubt please contact your dealer) 1 Switch all functions off (heating, DHW and pump);...
  • Page 11 The boiler will not function directly. The automatic de-aeration programm of about 17 minutes will start after one of the three programm keys is pressed. The display will show where A stand s for Automatic de-aeration programm Active and the number on the right indicates the actual water temperature of the boiler. Check the water pressure regularly and top up the installation when necessary.

  • Page 12: Turning The Boiler Off

    Turning the boiler off Holiday period: Holiday BrainQ room Adjust the thermostat to the holiday period. See thermostat provided the user thermostat manual. The hot water facility with a holiday programm. can be switched off by means of the program key The holiday period can be on the control panel.

  • Page 13: Error, Maintenance And Warranty

    Error, maintenance and warranty If a fault is detected the boiler will be blocked. This will be reflected, by an alternate display of Good, with an of Error or a BL of Blocking and a number code. You can try to reset the boiler by pressing the Reset key once.

  • Page 14: Adjustments

    Adjustments The boiler has a large number of settings options. We advise you to contact your installer for adjusting the boiler to the required settings. Adjusting the flow water temperature (CH) Press the Mode key briefly (from the Technical reading). The display will show PARA .
  • Page 15 Adjusting the type of installation The boiler is designed in such a way that it will adjust itself automatically to what is necessary for a normal heating system. In some cases the Step installation may have convectors or complete underfloor heating. One can easily choose heating installation Store adjustments appropriate for the system such as...
  • Page 16 Details of your installer: Name of installer: Address: Contact: Phone number: Phone number outside business hours: Atlantic 2000 Box 11, Ashton Under Lyne, Lancashire, OL6 7TR Tel: 0161 621 5960 020 7237 4912 Fax: 0161 621 5966 E-mail: info@atlantic2000.co.uk Web: www.atlanticboilers.com...
