IDTECH Kiosk III User Manual

Hide thumbs Also See for Kiosk III:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual Kiosk III
80136500-001
Copyright

Advertisement

Table of Contents
loading

Related Manuals for IDTECH Kiosk III

Summary of Contents for IDTECH Kiosk III

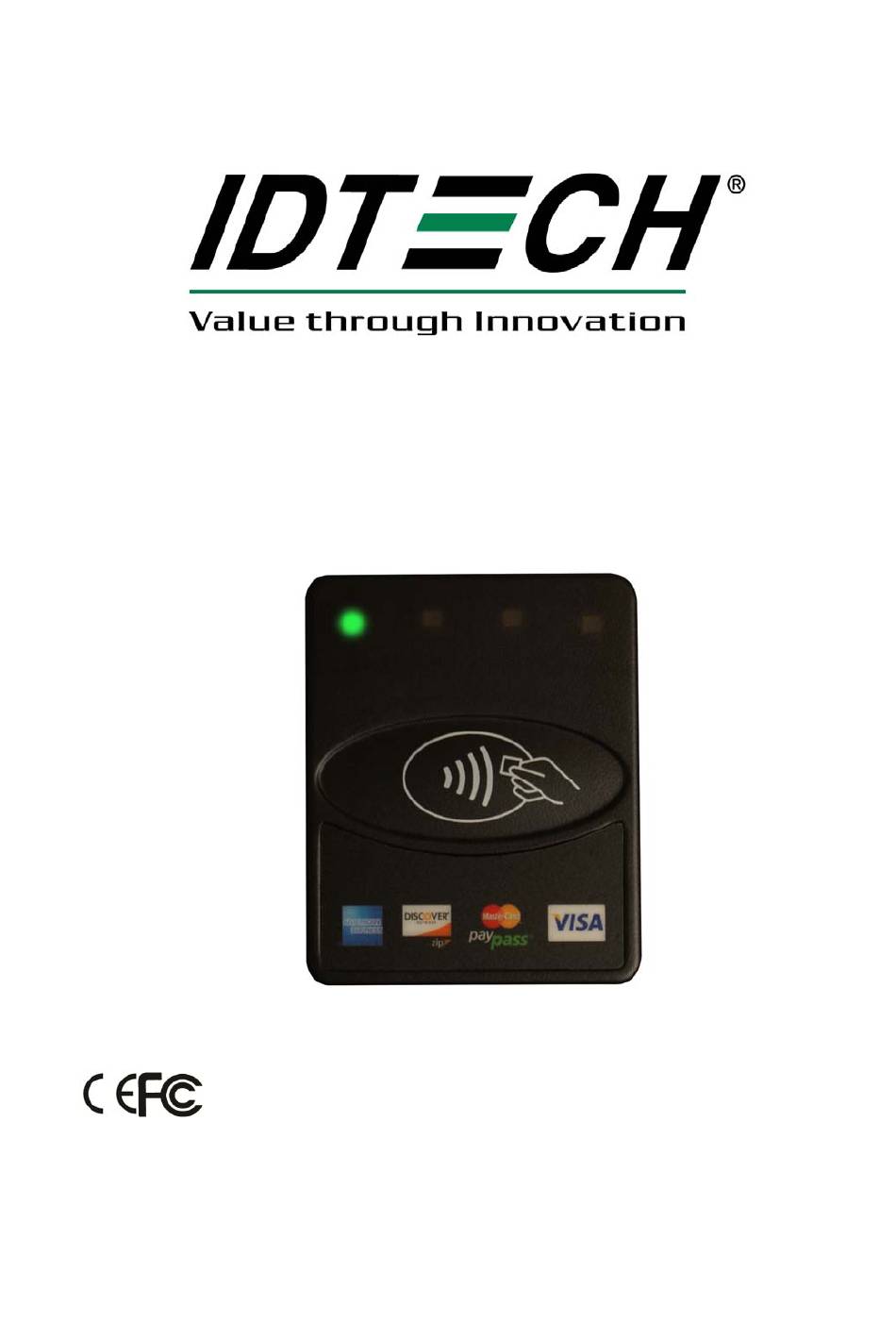

  • Page 1 User Manual Kiosk III 80136500-001 Copyright...
  • Page 2 ViVOpayKiosk III UserManual Copyright© 2014, International Technologies and Systems Corporation. All rights reserved. ID TECH 10721 Walker Street Cypress, CA 90630 This document, as well as the hardware and software it describes, is furnished under license and may only be used in accordance with the terms of such license. The content of this paper is furnished for informational use, subject to change without notice, and not to be construed as a commitment by ID TECH.
  • Page 3 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the ViVOpay Kiosk III not expressly approved by ViVOtech could void the user's authority to operate the ViVOpay Kiosk III. IC Compliance Warning...

  • Page 4: Table Of Contents

    2.3.1 Mounting the ViVOpay Kiosk III Controller Using Screws ......11 2.3.2 Mounting the ViVOpay Kiosk III Controller Using Mounting Tape ... 12 Connecting to Power ..................12 Connecting to the Data Port ................13 Using the ViVOpay Kiosk III to Make a Purchase ..........14 2.6.1...

  • Page 5: Overview

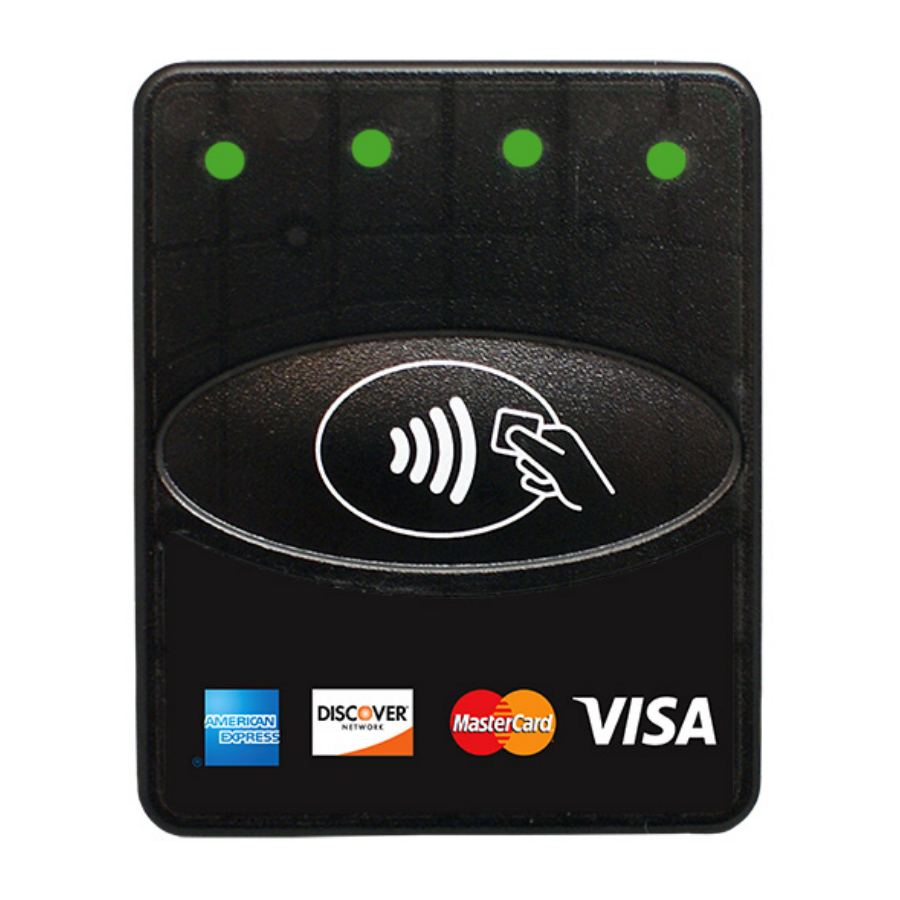

    ViVOpayKiosk III UserManual 1 Overview The ViVOpayKiosk III is a compact stand-alone contactless reader designed to support contactless transactions based on ISO 18092, ISO 14443 Type A/Type B/MiFare compatible cards, fobs and tags as well as NFC phones. The ViVOpayKiosk III is comprised of a compact controller module and an antenna module packaged individually.

  • Page 6: Kiosk Iii Specifications

    ViVOpayKiosk III UserManual 1.3 Kiosk III Specifications Hardware MTBF 500,000 hrs based on Telcordia Technologies SR-332 modeled at 40° C. Transmitter Frequency 13.56 MHz +/- 0.01% Transmitter Modulation ISO 14443-2 Type A Rise/Fall Time: 2-3 µsec. Rise, < 1 µsec fall ISO 14443-2 Type B Rise/Fall Time: <...
  • Page 7 ViVOpayKiosk III UserManual Transit Humidity 5% to 95% non-condensing, duration 1 week Operating Environment Water resistant for indoor and outdoor use Controller Operating Temperature 5° C to 50° C (41° F to 122° F), max change of 10° C per hour Storage Temperature -10°...

  • Page 8: Vivopaykiosk Iii Installation

    ViVOpayKiosk III UserManual 2 ViVOpayKiosk III Installation This section provides information on how to install the ViVOpay Kiosk III on a kiosk. 2.1 Parts List Verify that you have the following hardware for the installation of the ViVOpayKiosk III: • ViVOpay Kiosk III Controller •...

  • Page 9: Mounting The Vivopay Kiosk Iii External Antenna

    Use the following instructions to mount the antenna on the exterior of the kiosk: Note: Verify the orientation of the ViVOpay Kiosk III Antenna before marking and drilling the holes. The two larger holes should be located towards the top of the mounting location to ensure that the ViVOpay Kiosk III Antenna is oriented correctly with the LEDs at the top.
  • Page 10 Square Bezel Angle Bezel 8. Use the four nuts to secure the ViVOpay Kiosk III to the outside surface of the kiosk. Make sure to tighten the nuts securely so that the ViVOpay Kiosk III does not move on the outside surface of the kiosk.

  • Page 11: Flush-Mounting The Square Bezel Antenna

    In all cases, test the antenna mounting before engaging in a full scale installation. 2.3 Mounting the ViVOpay Kiosk III Controller Note: The ViVOpay Kiosk III Controller must be mounted within 1 meter of the antenna. If the antenna is mounted of a surface that opens (such as a door), make sure the controller and antenna are close enough that there is no tension on the cable when the enclosure is open.

  • Page 12: Mounting The Vivopay Kiosk Iii Controller Using Mounting Tape

    4. Use four screws and nuts to mount the ViVOpay Kiosk III Controller to the kiosk surface. (Mounting screws are not provided and must be supplied by the installer.) 5. Tighten the nuts to hold the ViVOpay Kiosk III Controller in position so that it does not move. 2.3.2 Mounting the ViVOpay Kiosk III Controller Using Mounting Tape 1.

  • Page 13: Connecting To The Data Port

    Pin 1 is indicated by a triangle (diagram is socket-side view of female connector). If you are powering the Kiosk III from this connector, wire the two power pins (pins 2 and 4) together and the two power ground pins together (pins 1 and 3).

  • Page 14: Using The Vivopay Kiosk Iii To Make A Purchase

    This tests the antenna's ability to read the RFID test card. If unsuccessful, there will be no reaction from the reader. If you use a test card and the ViVOpay reader is attached to theViVOpay Kiosk III Controller, a dummy transaction can be tested. The transaction will not be authorized and will come back with a response, but will at least test for end-to-end connectivity.

  • Page 15: Rf Interference

    ViVOpayKiosk III UserManual • Test the ViVOpayKiosk III installation using a test card to perform an end-to-end transaction (the same as an actual purchase on the Kiosk). The kiosk control panel should display "Requesting Authorization". Even if the transaction is declined (as it should be with a test card), it will prove connectivity all the way through the system.

  • Page 16: Troubleshooting

    We need update the trouble shooting, we will provide the draft for the trouble shooting later. The ViVOpay Kiosk III readers are reliable and easy to troubleshoot. The components that may require troubleshooting include the power module (if applicable), the reader, and the serial cable.

  • Page 17: Firmware Upgrade

    1. Copy the Kiosk III software and firmware on the PC. 2. Connect the download dongle (220-1275-00) to the PC COM port and plug in the 220- 2374-00 cable from Kiosk III to the dongle. Or connect the KIOSKIII to the PC using a USB cable.
  • Page 18 6. Press the button “Load” to load the firmware on the reader (the progress will be displayed). 7. Disconnect power and the serial dongle (if connected). 8. Connect power to the Kiosk III and connect the standard data cable (if disconnected). Page18 of 18...
