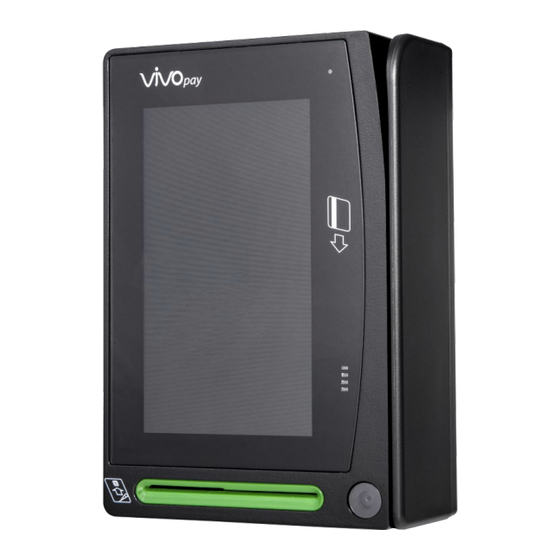

- Page 1 VP6800® User Manual 80159500-001 Rev R 30 June 2020 ID TECH® 10721 Walker Street Cypress, CA 90630 (714) 761-6368 www.idtechproducts.com support@idtechproducts.com...
- Page 2 ID TECH VP6800 User Manual Copyright © 2020 ID TECH. All rights reserved. This document, as well as the software and hardware described in it, is furnished under license and may be used or copied online in accordance with the terms of such license. The content of this document is furnished for information use only, is subject to change without notice, and should not be construed as a commitment by ID TECH®.
- Page 3 ID TECH VP6800 User Manual FCC warning statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
8.2. Reader Installation ................................12 8.3. Connecting Cable and Power ............................13 8.4. Bluetooth Connection ............................... 13 9. VP6800 CONFIGURATION SETTINGS ............................14 9.1. Configuring Ethernet Settings ............................14 9.1.1. Setting the Device IP ......................................14 9.1.2. Setting the Remote IP ......................................15 9.2. -
Page 5: Overview
VP6800. The Universal SDK is available for the C# language on Windows and comes with sample code for demo apps. To obtain the SDK and other useful utilities, demos, and downloads for the VP6800, be sure to check the Downloads link on the TECH public Knowledge Base (no registration required). -
Page 6: Features
Environmental certifications (RoHS, REACH, RED) • Encryption support (TDES, AES, DUKPT) • Remote Key Injection Support (PCI validated) • Firmware upgradeable in the field • Note: the VP6800 must be power-cycled to switch between 10M and 100M. Page | 6... -
Page 7: Specifications
ID TECH VP6800 User Manual 3. Specifications Hardware MTBF 300,000 POH Transmitter Frequency 13.56 MHz +/- 0.01% Transmitter Modulation ISO 14443-2 Type A, Type B and FeliCa ISO 18092 Peer-to-Peer iMXRT1052 (video): 32MB SDRM, 128MB NAND 0 to 4 cm... -
Page 8: Agency Approvals And Compliances
ID TECH VP6800 User Manual 4. Agency Approvals and Compliances CE (EN55022/EN55024, Class- B) • FCC (Part 15, Class-B) • MIC (Japan) • REACH • RoHS (DIRECTIVE 2011/65/EU) • Telec (Japan) • • EMV Contact L1 & L2 • EMV Contactless L1 •... -
Page 9: Communications
The diagram below illustrates the layout of various ports. 5.1. Audio Support While the VP6800 does not have an internal speaker, it can host 16mb .WAV files and connect to an external speaker via the 3.5mm audio jack. Page | 9... -
Page 10: Cable
ID TECH VP6800 User Manual 6. Cable The VP6800 uses a serial port to USB +RS-232+RS-232 cable. The cable connectors follow the schematic illustrated below. Note: For development purposes, ID TECH can supply a serial port interface cable that supports RS- 232 or USB. -
Page 11: Basic Operation
VP6800, and supply 5VDC 2A power (via cannon connector at the powered DB9 connection) using an ID TECH P/N AC0005R-24 or equivalent power supply. Optionally also connect a standard Ethernet cable between the RJ45 ports on the back of the VP6800 and the network port of the host system. -
Page 12: Reader Installation
Mount the unit according to the drawings shown, with #8-32 studs spaced 65mm apart horizontally and 67mm vertically. For safety reasons, make sure to mount the VP6800 at a height no greater than two meters from the floor. Note: When installing the VP6800, make sure to tighten the mounting studs enough to depress the removal sensor. -
Page 13: Connecting Cable And Power
ID TECH VP6800 User Manual 8.3. Connecting Cable and Power 1. When developing for the VP6800, connect the power supply to the RS-232 interface. 2. Connect the RS-233 interface to PC serial port. Or connect Ethernet interface. 3. Connect the +5VDC power supply to the barrel receptacle on the RS-232 cable. Plug the unit into an AC outlet and verify that the VP6800 lights up. -
Page 14: Vp6800 Configuration Settings
3. The VP6800 will display a window with a random passkey: 9. VP6800 Configuration Settings Setting up the VP6800 requires users to enter the main menu each time they enter a sub-menu, even if they do not save any setting changes. -
Page 15: Setting The Remote Ip
To clear a field, select Cancel. d. To exit the menu without making changes, select Cancel again. 2. The VP6800’s screen displays an IP is Set dialog on success. 9.1.2. Setting the Remote IP 1. To set the Remote IP, enter IP address information in the field highlighted in blue. -
Page 16: Configuring Wi-Fi Settings
To clear a field, select Cancel. d. To exit the menu without making changes, select Cancel again. 2. The VP6800’s screen displays an IP is Set dialog on success. 9.2.2. Setting the Remote IP 1. To set the Remote IP, enter IP address information in the field highlighted in blue. -
Page 17: Setting The Ssid And Password
3. The VP6800’s screen displays a Name is Set dialog on success. 9.3.1. Selecting Wi-Fi or Bluetooth Note: VP6800 units can only transmit wirelessly over one communication format at a time: Wi-Fi or Bluetooth. In addition to the steps below, see the following commands in the NEO 2 Interface Developer’s Guide:... -
Page 18: Activate Removal Sensor
VP6800’s default passwords. 9.4.1. Changing the Default Passwords Follow the steps below to change the VP6800’s default passwords. 3. Make sure the removal detection button is fully depressed; the recommended method is to use two screws and a bar, as pictured below. -
Page 19: Demo Units And Removal Detection
The device will not display an error message, but the VP6800 will reject all Get PIN and Get MSR operations until removal detection is reactivated. If the removal detection fails to activate, the VP6800 will display “TM4 Tampered / Fail” → TM4 / Error code 0x48. -
Page 20: Deactivating Removal Detection
ID TECH VP6800 User Manual 9.4.3. Deactivating Removal Detection Make sure to deactivate removal detection before removing a VP6800 unit from its installation point or use the plastic bar method described above to deactivate the setting later. Follow the steps below to deactivate removal detection. -
Page 21: Device State And Ui
11. Security Guide The VP6800 is an unattended device. Contact your ID TECH representative or send an e-mail to support@idtechproducts.com if you have any questions involving the product's daily use. We recommend you conduct daily checks of the device as follows: Check the tamper evidence physical seals, to make sure they are intact. -
Page 22: Firmware Reference
ID TECH VP6800 User Manual 14. Firmware Reference The VP6800 uses ID TECH's NEO 2 firmware. For a comprehensive guide to the device's firmware- level commands, ask your ID TECH representative for the NEO 2 Interface Developer's Guide (or IDG). It is available at no charge to customers on request. -
Page 23: Updating Vp6800 Firmware
ID TECH VP6800 User Manual 16. Updating VP6800 Firmware The steps below describe the process for updating VP6800’s firmware (for both its K81 and RT1050 processors) via the Universal SDK Demo. Note: Before you begin, contact your ID TECH representative to receive the most recent VP6800 firmware. - Page 24 6. In the File Explorer window, navigate to the directory where you saved the K81 firmware update, select the FW file that starts with NEO_II_vp6800_... and click Open. 7. The VP6800 reboots and enters the bootloader, at which point the USDK Demo app begins updating the device’s K81 firmware.
- Page 25 RT1050 FW file that starts with VP6800FW_RT1050_... and click Open. 12. The VP6800 reboots and enters the bootloader again to update the device’s RT1050 firmware. 13. When the RT1050 firmware update completes, the VP6800 reboots again and the USDK Demo app prints Firmware Update Successful in the Results panel.
-
Page 26: Appendix A: Power Over Ethernet Splitter
Contact ±8KV, Air ±10KV Isolation 1.0KV Power/Data cables 23cm Length 18. Appendix B: Supported Micro SD Cards The VP6800 supports a limited number of Micro SD cards; the following cards have been tested and verified for the device: Kingston/SDC4/8GB • Kingston/SDCS/16GB •...
