• INSTALLATION

It's a good idea to read all of the instructions before beginning the
installation. We recommend having your iN-Command system
installed by a reputable RV dealership

• Tools and Supplies

You will need the following:
• Phillips screwdriver
• #2 square drive bit
• Wire cutters and strippers
• Electrical tape
• Volt meter/test light
• Crimping tool
• Fork Crimp connectors
• 10 gauge wire for power and slide connections
• 14 and 18 gauge wire for all other connections
• Two #8 PH (0.164" x 0.5") screws for the DC
• Two #8 PH (0.164" x 0.5") screws for the SP
• Six #8 PH (0.164" x 1.0") screws for the BCM
• Minimum of 24 gauge wire required to Connect DC To BCM

• Disconnecting the Battery

To prevent a short circuit, be sure to turn off 12V power and remove
the negative (-) battery cable prior to installation.

• Selecting the Mounting Location

Select a mounting location, taking care to avoid the following:
• Places exposed to heat-radiating appliances such as electric heaters
• Adjacent to other equipment that radiates heat
• Under thermostats
• Poorly-ventilated or dusty places
• Moist or humid locations

• Mounting the Display Commander (DC)

• Cut/Drill hole, allowing space below for future programming and
behind for ventilation
• Route wires through the hole and connect
• Attach rear plate with screws
• Check and ensure correct operation
• Snap main unit into plate
• Mount the unit using two #8 PH (0.164" x 0.5") screws

• Mounting the Switch Plate (SP)

• Cut/Drill hole, allowing space below for future programming and
behind for ventilation
• Route wires through the hole and connect
• Check and ensure correct operation
• Mount the unit using two #8 PH (0.164" x 0.5") screws
5
Wall For Reference

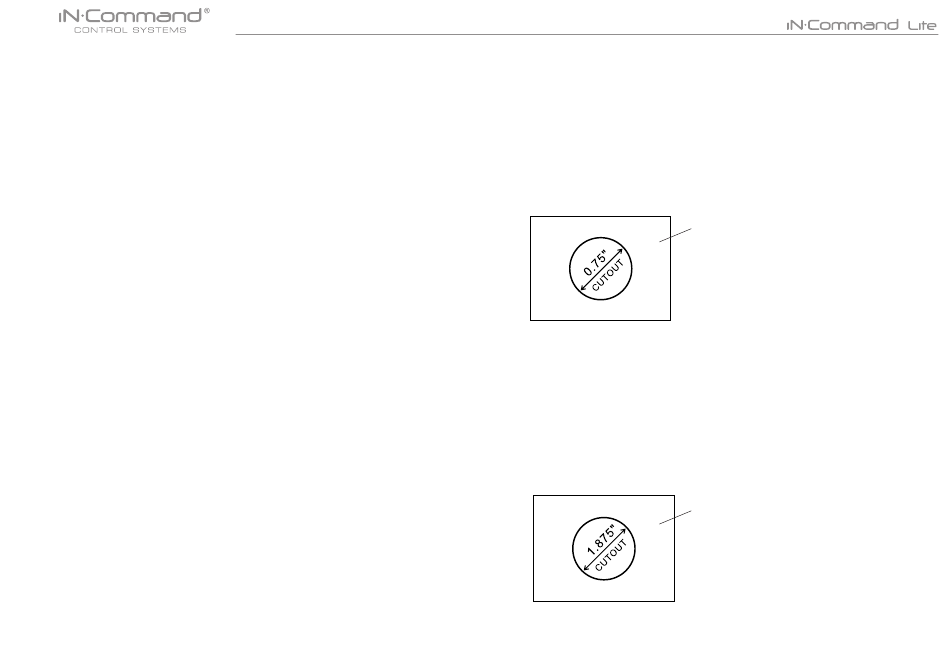

HOLE SIZES
Display Commander (DC) 0.75"
Recommended Cutout
Wall For Reference
HOLE SIZES
Switch Plate (SP) 1.875"
Recommended Cutout
