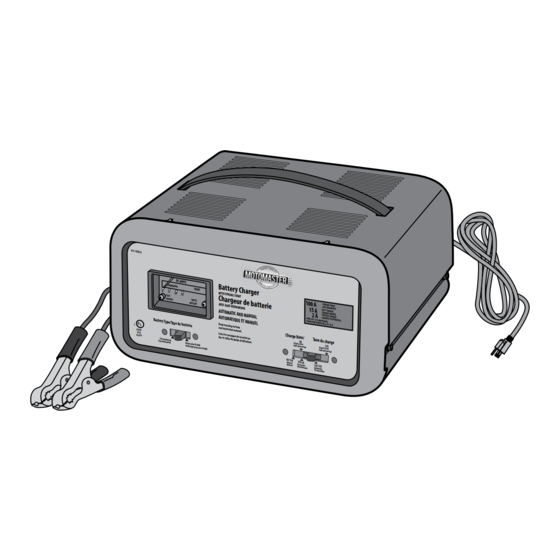

- Page 1 011-1505-8 BATTERY CHARGER IMPORTANT: INSTRUCTION This manual contains important safety and operating instructions. MANUAL Read all instructions and follow them when using this product.
-
Page 2: Warranty
011-1505-8 | contact us 1-800-528-6817 DO NOT RETURN THIS PRODUCT TO THE STORE! QUESTIONS? CALL CUSTOMER SERVICE, HOTLINE: 1-800-528-6817. This MotoMaster product carries a two (2) year warranty against defects in workmanship and materials. At ® its discretion, MotoMaster Canada agrees to have any defective part(s) repaired or replaced free of charge, ®... -
Page 3: Table Of Contents
TABLE OF CONTENTS WARRANTY TECHNICAL SPECIFICATIONS SAFETY INFORMATION KEYPARTS LIST IMPORTANT INFORMATION OPERATION MAINTENANCE AND STORAGE TROUBLESHOOTING... -
Page 4: Safety Information
011-1505-8 | contact us 1-800-528-6817 Before using your MotoMaster battery charger, absolutely necessary. Use of an improper ® be sure to read and save these safety instructions. extension cord could result in a risk of fire Failure to do so could result in serious injury or and electric shock. - Page 5 lead-acid batteries only. It is not intended accessories in the vehicle are off to prevent to supply power to a low voltage electrical arcing. system other than in a motor-starting Be sure the area around the battery is well- • application.
- Page 6 011-1505-8 | contact us 1-800-528-6817 CHARGER LOCATION Check the polarity of the battery posts. The • positive (pos, P, +) battery post usually has a Place the charger as far away from the • larger diameter than the negative (neg, N, -) battery as the DC cables permit.
- Page 7 ii. For a positive-grounded vehicle, connect including the plastic boots on the battery the negative (black) clip (1) from the clips. battery charger to the negative (neg, N, Attach at least a 24” (61 cm) long 6-gauge • -) ungrounded post (2) of the battery. (AWG) insulated battery cable (1) to the Connect the positive (red) clip (3) to the negative (neg, N, -) battery post (2) (see Fig.
- Page 8 011-1505-8 | contact us 1-800-528-6817 Connect charger AC supply cord to electrical Recommended minimum AWG size for • • outlet. extension cord. When disconnecting the charger, always do • Length of cord <100’ (30.5 m) >100’ (30.5 m)
-
Page 9: Keyparts List
FEATURES Ammeter Battery type selector switch Power cord Battery clips Charge rate selector switch Full charge (green) LED indicator Check battery (red) LED indicator MM-111505-01... -
Page 10: Important Information
011-1505-8 | contact us 1-800-528-6817 This MotoMaster battery charger is easy to use ® BATTERY TYPE SWITCH - Use this switch and designed for years of reliable service. This set the type of battery to be charged. MotoMaster battery charger is used to charge ®... -
Page 11: Operation
OPERATION MANUAL CHARGING (6 V ONLY) When a MANUAL CHARGE is performed, the charger will continue to charge and will not shut off. You must keep a visual check on the ammeter to determine when the battery is charged. Be sure to monitor the charging process and stop it when the battery is charged. - Page 12 011-1505-8 | contact us 1-800-528-6817 USING THE ENGINE START FEATURE Your battery charger can be used to jump-start your car if the battery is low. Follow these instructions on how to use the ENGINE START feature. 1. With the charger unplugged from the AC outlet, connect the charger to the battery. Refer to the instructions in the safety information section.
- Page 13 4. Crank the engine until it starts or 5 seconds pass. If the engine does not start, wait 4 minutes before cranking again. This allows the battery and the charger to cool down. 5. If the engine fails to start, charge the battery for 5 more minutes before attempting to crank the engine again.
-
Page 14: Maintenance And Storage
011-1505-8 | contact us 1-800-528-6817 MAINTENANCE After use, and before performing maintenance, unplug and disconnect the battery charger. • Use a dry cloth to wipe all battery corrosion and other dirt or oil from the battery clips, cords, and the •... -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The charger is mak- • Circuit breaker is cycling. • The settings may be wrong. Check ing an audible clicking the charger settings. sound. • Battery is defective. • Have the battery checked. • Shorted battery cables or clips •... - Page 16 011-1505-8 | contact us 1-800-528-6817 BEFORE RETURNING FOR REPAIRS • When a charging problem arises, make certain that the battery is capable of accepting a normal charge. Double check all connections, the AC outlet for a full 120 V, the charger clips for correct polarity and the quality of the connections from the cables to the clips and from the clips to the battery system.
