MICRO-EPSILON thermoMETER CT Instruction Manual page 18

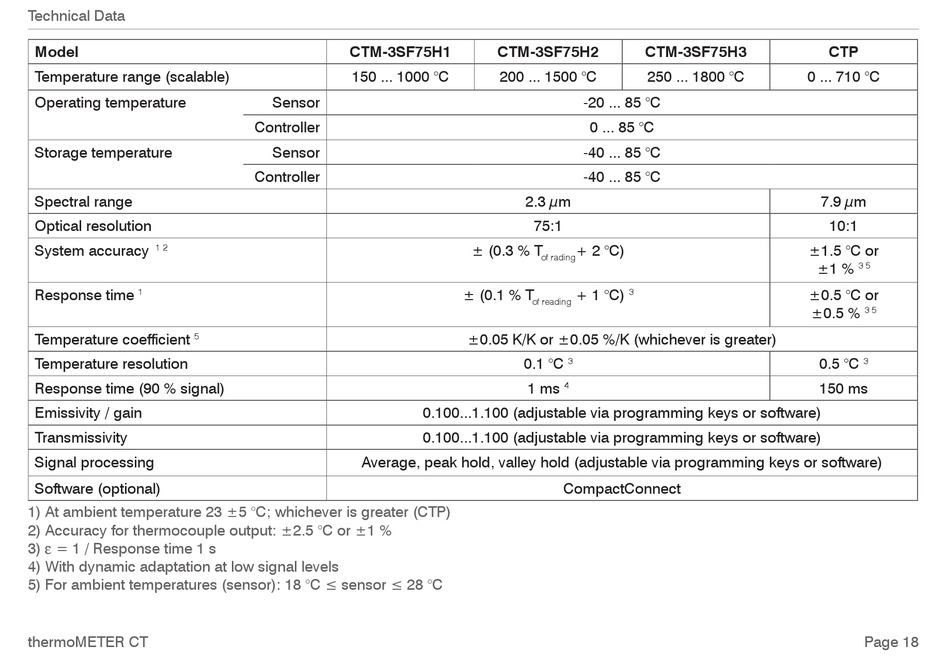

Technical Data
Model
Temperature range (scalable)
Operating temperature
Storage temperature
Spectral range
Optical resolution
System accuracy
1 2
Response time
1
Temperature coefficient
5
Temperature resolution
Response time (90 % signal)
Emissivity / gain
Transmissivity
Signal processing
Software (optional)
1) At ambient temperature 23 ±5 °C; whichever is greater (CTP)
2) Accuracy for thermocouple output: ±2.5 °C or ±1 %
3) e = 1 / Response time 1 s
4) With dynamic adaptation at low signal levels
5) For ambient temperatures (sensor): 18 °C ≤ sensor ≤ 28 °C
thermoMETER CT
CTM-3SF75H1
150 ... 1000 °C
Sensor
Controller
Sensor
Controller
0.100...1.100 (adjustable via programming keys or software)
0.100...1.100 (adjustable via programming keys or software)
Average, peak hold, valley hold (adjustable via programming keys or software)
CTM-3SF75H2
200 ... 1500 °C
-20 ... 85 °C
0 ... 85 °C
-40 ... 85 °C
-40 ... 85 °C
2.3 μm
75:1
± (0.3 % T + 2 °C)
of rading
± (0.1 % T + 1 °C)
3
of reading
±0.05 K/K or ±0.05 %/K (whichever is greater)
0.1 °C
3
1 ms
4
CompactConnect
CTM-3SF75H3
250 ... 1800 °C 0 ... 710 °C
7.9 μm
±1.5 °C or
±1 %
±0.5 °C or
±0.5 %
0.5 °C
150 ms
CTP
10:1
3 5
3 5
3
Page 18
