POLA HP36 Handbook

INSTALLATION
How to connect the sensors
Connect the provided sensor as shown in the diagram. For remote connections use
a standard 0.5-square millimeter two-pole wire , taking great care
connections, by insulating and sealing the joins carefully. -O.C.- is displayed when the
temperature sensor wiring is open, -S.C.- is displayed when the temperature sensor
wiring is short circuit.
How to connect the line
Connect line on terminals L-N.
Protect supply with adequate fuse.
How to connect the contacts
Connect terminals 3-7 / ...11-13 on the terminal block (contacts up to 4AMP.AC1).
Ventilator's contacts are progressive type.
Output contacts are N.O. (Normally Opened and free of voltage) on wich is aplliable a
4AMP AC1 maximum load.
3-4= VENT 1 contact.
3-5= VENT 2 contact.
3-6= VENT 3 contatc.
3-7= VENT 4 contact.
11-12= Heat contact.
12-13= Cool contact.
* Other power voltage if you required
As it company policy to continually improve the products the Manufacturers
reserve the right to make any modifications thereto without prior notice. They
cannot be held liable for any damage due to malfunction.
over the
HP36
COOL
COMMON
HEAT
HP36
SL 3.0

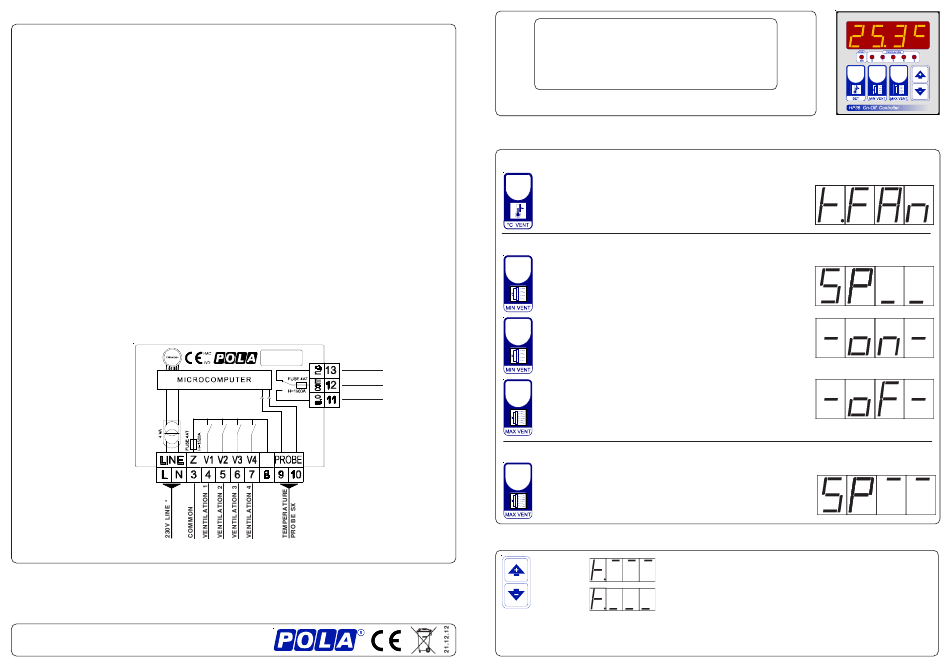

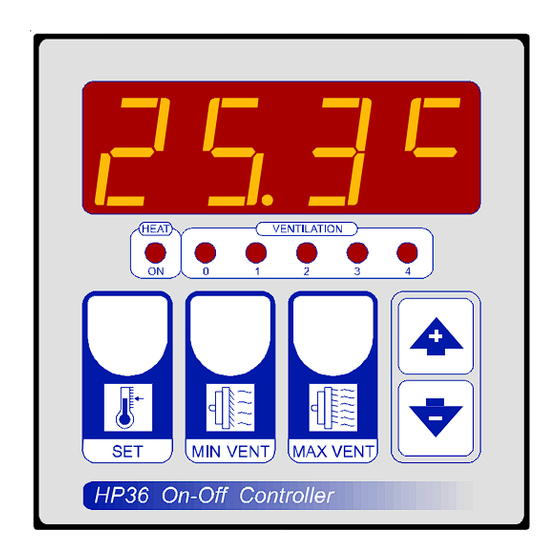

On-off ventilation controller
Handbook
MAINS SETTING (Run mode)
VENTILATION TEMPERATURE SETTING.
Press °C VENT :
This message will be displayed instead of the
°Set Ventilation temperature value (start first ventilation).
Press + or - to modify, press °C VENT to confirm.
MINIMUM SPEED SETTING.
Press MIN VENT:
This message will be displayed instead of the
Minimum Ventilation.
Press + or - to modify, press MIN to confirm.
If the minum speed is set 0 , this message appears
instead of the Set partialized On time in seconds.
Press + or - to modify, press MIN to confirm.
At this point, this message appears instead of the
Set partialized Of time in seconds.
Press + or - to modify, press MIN to confirm.
MAXIMUM SPEED SETTING.
Press MAX VENT:
This message will be displayed instead of the
Maximum Ventilation.
Press + or - to modify, press MAX to confirm.
VIEWING AMBIENT TEMPERATURE RECORDING
Press + : will be displayed followed by
°Maximum Temperature Recording.
Press - : will be displayed followed by
°Minimum Temperature Recording.
Values are permanently stored in the memory: for deleting all values in the memory keep
pushed + key for more than 3 seconds: CLEA message will appear on display before
clearing operation.
