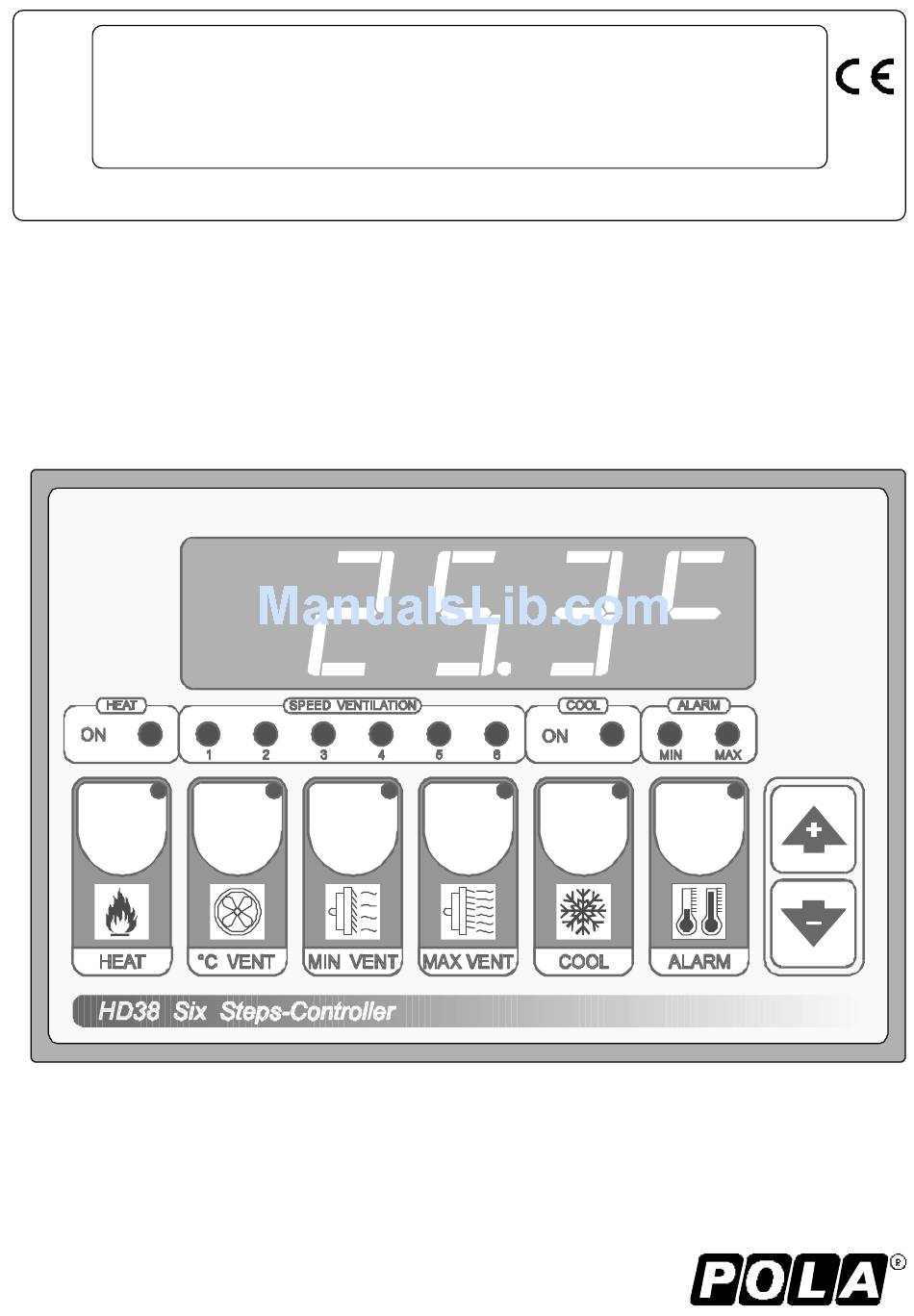

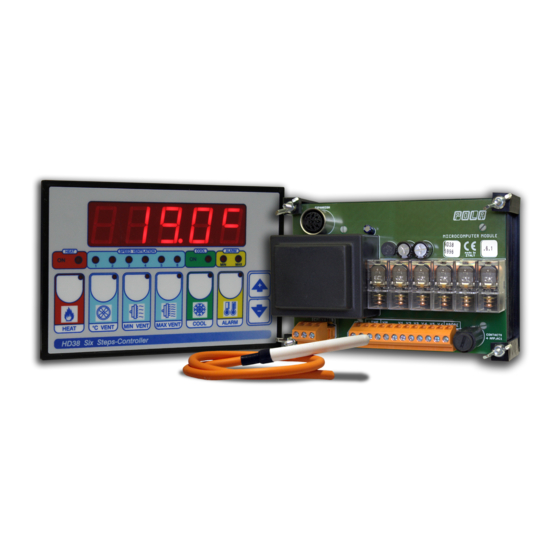

  • Page 1 HD38 SL 6.0 6 steps ventilation +thermoregulation Handbook...
  • Page 2 MAIN SETTINGS (Run Mode) HEAT TEMPERATURE SETTING. HEAT TEMPERATURE SETTING. Press HEAT (key lamp flashes): This messagge will be displayed instead of the °Set Heat temperature value . Press + or - to modify, press HEAT to exit. VENTILATION TEMPERATURE SETTING. Press °C VENT (key lamp flashes): This messagge will be displayed instead of the °Set Ventilation temperature value (start first speed) .
  • Page 3 ALARM PARAMETER SETTING. Press ALARM (key lamp flashes): This messagge will be displayed instead of the °Set Minimum Alarm temperature value . Press + or - to modify, press ALARM to confirm. At this point: this messagge will be displayed instead of the °Set Maximum Alarm temperature value .
  • Page 4 COSt PROGRAMMING (System constants) These settings refer to the mode of operation of the system and must be made on initial start-up. Press - / + / HEAT together at least one second: the message C.O.S.t. will be displayed. The COST messagge are displayed in sequence if you press + to go forward or - to go back.
  • Page 5 Lamp State N° Relay Output contacts HEAT HEAT On HPAL 1/HDY6 1 HPAL 3-4/HDY6 3-4 VENT 1 SPEED 1 HD38-1 HD38 3-5 VENT 2 SPEED 2 HD38-2 HD38 3-6 VENT 3 SPEED 3 HD38-3 HD38 3-7 VENT 4 SPEED 4...
  • Page 6 OPERATIVE DIAGRAMS d.vEn V 6 ON CONDIZIONATED BY SP. - - d.vEn d.vEn If Minimum speed is programmed to 0 (SP._ _=0 ), when the ventilation is off d.vEn it is possible to insert a cyclical operation of minimum speed, compound with a time of ventilators turn on (t.on) , with d.vEn a time of ventilators turn off (t.oF) , and...
  • Page 7 N.O contacts (normally progressive (On-Off opened free to voltage) regulation type). max 4AMP AC1. For HD38/HDY6 connections use a standard 0.5-square millimeter two-pole. N.O contacts (normally opened free to voltage) max 4AMP AC1. As it is company policy to continually improve the products the Manufactures reserve the right to make any modifications thereto without prior notice.
