POLA HP49 Handbook

INSTALLATION

How to connect the ventilation input

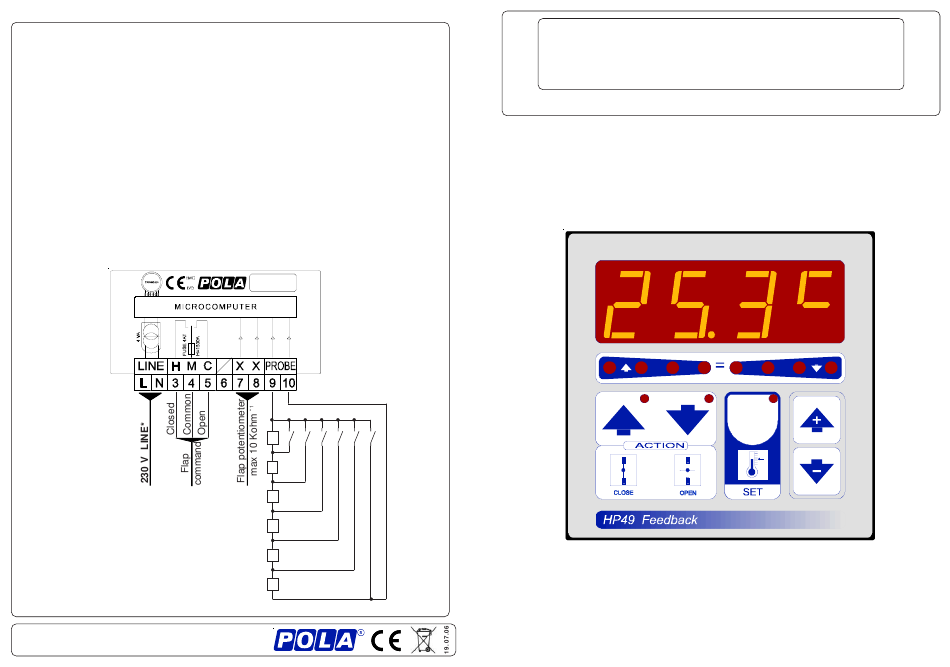

Connect the ventilation input provided as shown in the diagram.
How to connect response potentiometer :
Connect the response potentiometer of each value (max 10.000 ohm,
recommended 1 Kohm type) and connect the terminals 7-8.
For remote connections use a standard 0.5-square millimetre two-poles wire for
each sensor, taking great care over the connections, by insulating and sealing
the joins carefully.
How to connect the line
Connect line on terminals L-N.
How to connect the contacts
Connect terminals on the terminal block (contacts up to 4AMP.AC1) to the loads
as shown in the diagram).
* Other power voltage if you required.
*1 Recommended 1 Kohm type.
As it company policy to continually improve the products the Manufacturers
reserve the right to make any modifications thereto without prior notice. They
cannot be held liable for any damage due to malfunction.
HP49
R= 100 ohm resistor
Ventilation 1 contact
C1=
= Ventilation 2 contact
C2
= Ventilation 3 contact
C3
= Ventilation 4 contact
C4
= Ventilation 5 contact
C5
= Ventilation 6 contact
C6
R C1 C2 C3 C4 C5 C6
R
R
R
R
R

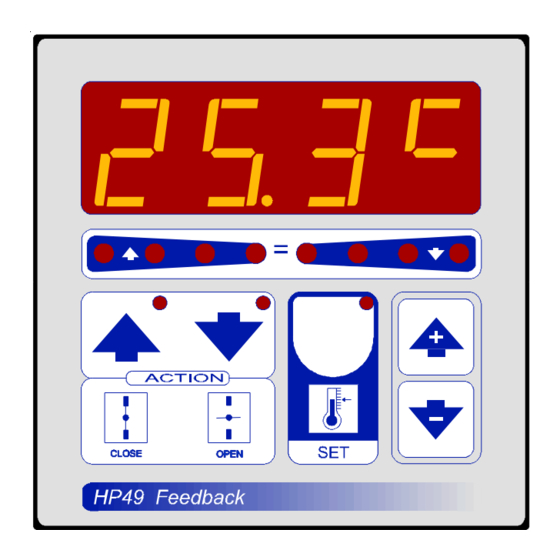

HP49
SL 6.0
Associative flap with feedback
Handbook
