POLA HP69 Handbook

0-10v light control light sequence

Enlarged version

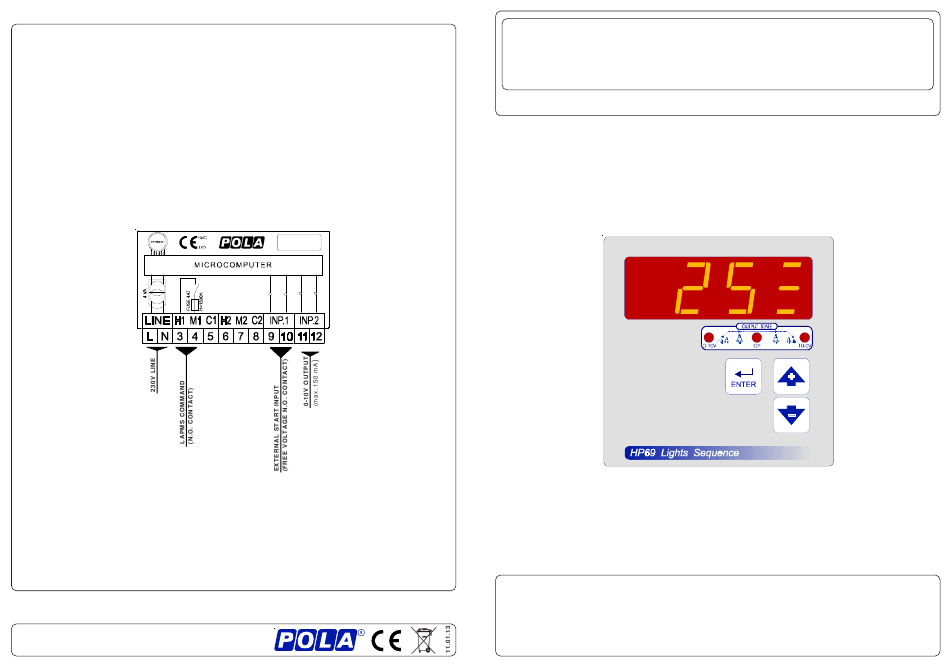

INSTALLATION

Connect 230V power line on terminals L-N.

Protect supply with adequate fuse.

How to connect the contacts

Connect terminals on the terminal block (contacts up to 4AMP.AC1)

As it company policy to continually improve the products the Manufacturers

reserve the right to make any modifications thereto without prior notice. They

cannot be held liable for any damage due to malfunction.

HP69

- +

HP69

0-10V light control

HP69

allows you to operate an output in 0-10V regulation with an ascending ramp and

one descending: the start signal (start signal closed) powers up the ascending ramp that

maintains the output value until the start of the descent ramp (start signaI open).

Furthermore below the set minimum % set of brightness the relay turns completely the

lamps off.

SL 4.0

Handbook

Table of Contents

Do you have a question about the HP69 and is the answer not in the manual?

Page 1 INSTALLATION HP69 Line connection Connect 230V power line on terminals L-N. Protect supply with adequate fuse. SL 4.0 0-10V light control How to connect the contacts Connect terminals on the terminal block (contacts up to 4AMP.AC1) Handbook HP69 HP69 allows you to operate an output in 0-10V regulation with an ascending ramp and one descending: the start signal (start signal closed) powers up the ascending ramp that maintains the output value until the start of the descent ramp (start signaI open).
Page 2 COSt PROGRAMMING (System constants) MANUAL MODE These settings refer to the operation mode of the system and must be made on In some start-up conditions may be useful to work in "manual" mode: initial startup. Press - / + at the same time for at least one second: the message Power off the processor, press + key and keep it pressed giving power on: C.O.S.t.
