POLA HP35 Handbook

INSTALLATION
How to connect the sensors

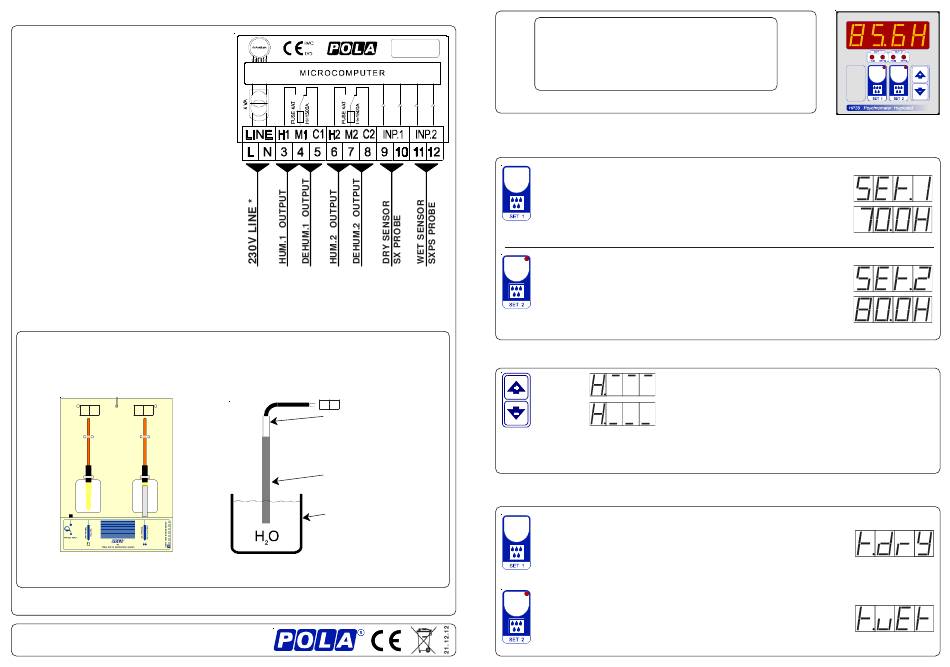

Connect the provided sensor as shown in
the diagram. For remote connections
use a standard 0.5-square millimeter
two-pole wire (one for each sensor),
taking great are over the connections, by
insulating and sealing the joins carefully. -
O.C.- is displayed when the temperature
sensor wiring is open, -S.C.- is displayed
when the temperature sensor wiring is short
circuit.
How to connect the line
Connect line on terminals L-N.
Protect supply with adequate fuse.
How to connect the contacts
Connect terminals on the terminal block
(contacts up to 4AMP.AC1).
WT1 Option.
Psichrometric kit with predisposition to fixing
ambient probe (SX air) and wet probe (SXPS
water). Water tank with trasparent side to
check the water level and plug for water inlet.
9 10 11 12
Check periodically the sock installed on the sensor has not been clogged by calcium carbonate
scale. If so, remove it then clean or replace it.
As it company policy to continually improve the products the Manufacturers
reserve the right to make any modifications thereto without prior notice. They
cannot be held liable for any damage due to malfunction.
HP35
* Other power voltage if you required.
In the case of our WT1 option (water tank) will not
used, deep only the terminal side of the wetting
cover of SXPS probe.
Put SX probe (dry bulb) in the closeness.
11 12
SXPS: temperature probe
for wet bulb.
Wetting cover.
Water-container
(not our forniture).
HP35
SL 3.0
Psychrometer hygrostat controller
Handbook
MAIN SETTINGS (Run Mode)
SET 1 HUMIDITY SETTING.
Press SET 1 (key lamp flashes):
This message will be displayed instead of the
% RH Set 1 Humidity value.
Press + or - to modify. Press SET 1 to confirm.
SET 2 HUMIDITY SETTING.
Press SET 2 (key lamp flashes):
This message will be displayed instead of the
% RH SET 2 humidity value.
Press + or - to modify. Press SET 2 to confirm.
VIEWING HUMIDITY RECORDING
Press + : will be displayed followed by
°Maximum Humidity Recording.
Press - : will be displayed followed by
°Minimum Humidity Recording.
Values recorder are memory permanent stored: for memory clear keep pushed + keys
for more than 3 seconds: CLEA message will be composed on display before clearing
operation.
PSYCHROMETER TEMPERATURE VIEWING
DRY BULB TEMPERATURE VIEWING:
Press SET 1 for at least one seconds:
This message will be displayed instead of the
°C dry bulb temperature .
WET BULB TEMPERATURE VIEWING:
Press SET 2 for at least one seconds:
This message will be displayed instead of the
°C wet bulb temperature .
SEt.1 = 70.0H
Example
SEt.2 = 80.0H
Example
